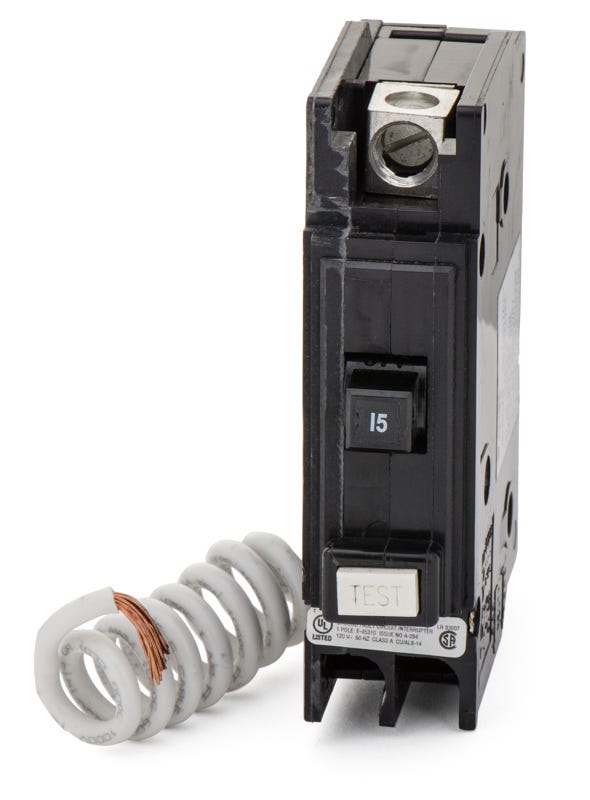

Eaton / Cutler-Hammer QCGF1015 GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Unit Mount
Eaton / Cutler-Hammer
QCGF1015
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCGF1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCGF1015 - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
Utilizing a cable-in/cable-out construction, this 15-amp single-pole breaker provides essential ground fault protection for commercial applications. It mounts into Eaton Quicklag panelboards and standard DIN rail enclosures, offering versatile installation options. Although superseded by the QCGFT1015, this component maintains a 10kAIC rating at 120VAC and includes SWD certification for switching fluorescent lighting loads safely.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QCGF1015 |
| Series | QCGF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Quicklag Panelboards, DIN Rail Enclosures |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
5 answersWhat type of enclosures or panelboards accept the QCGF1015 breaker?
This Quicklag Type QC breaker is designed for use in Eaton Quicklag panelboards and DIN rail enclosures. It utilizes a cable-in, cable-out mounting style rather than a traditional plug-on or bolt-on connection.
What is the ground fault trip sensitivity of the QCGF1015?
This breaker is a Class A Ground Fault Circuit Interrupter (GFCI) and features a 5 mA trip sensitivity to protect personnel from electrical shock hazards.
How do I connect the neutral on this GFCI breaker?
The breaker is equipped with a pigtail neutral wire. This pigtail must be routed and connected directly to the neutral bus bar in the panelboard to power the internal ground fault circuitry.
Can I use the QCGF1015 to replace a bolt-on or plug-on Quicklag breaker?
No. The QC frame designates a cable-in, cable-out configuration. It is not interchangeable with Type QB (bolt-on) or Type QP (plug-on) Quicklag circuit breakers.
What type of trip functions does this breaker provide?
It utilizes a thermal magnetic trip unit for standard long-time overload and instantaneous short-circuit protection, alongside a dedicated ground fault sensing function for personnel safety.
