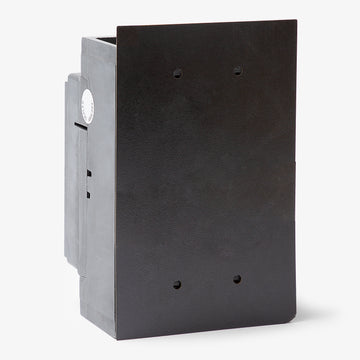

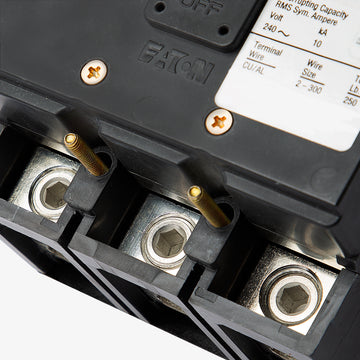

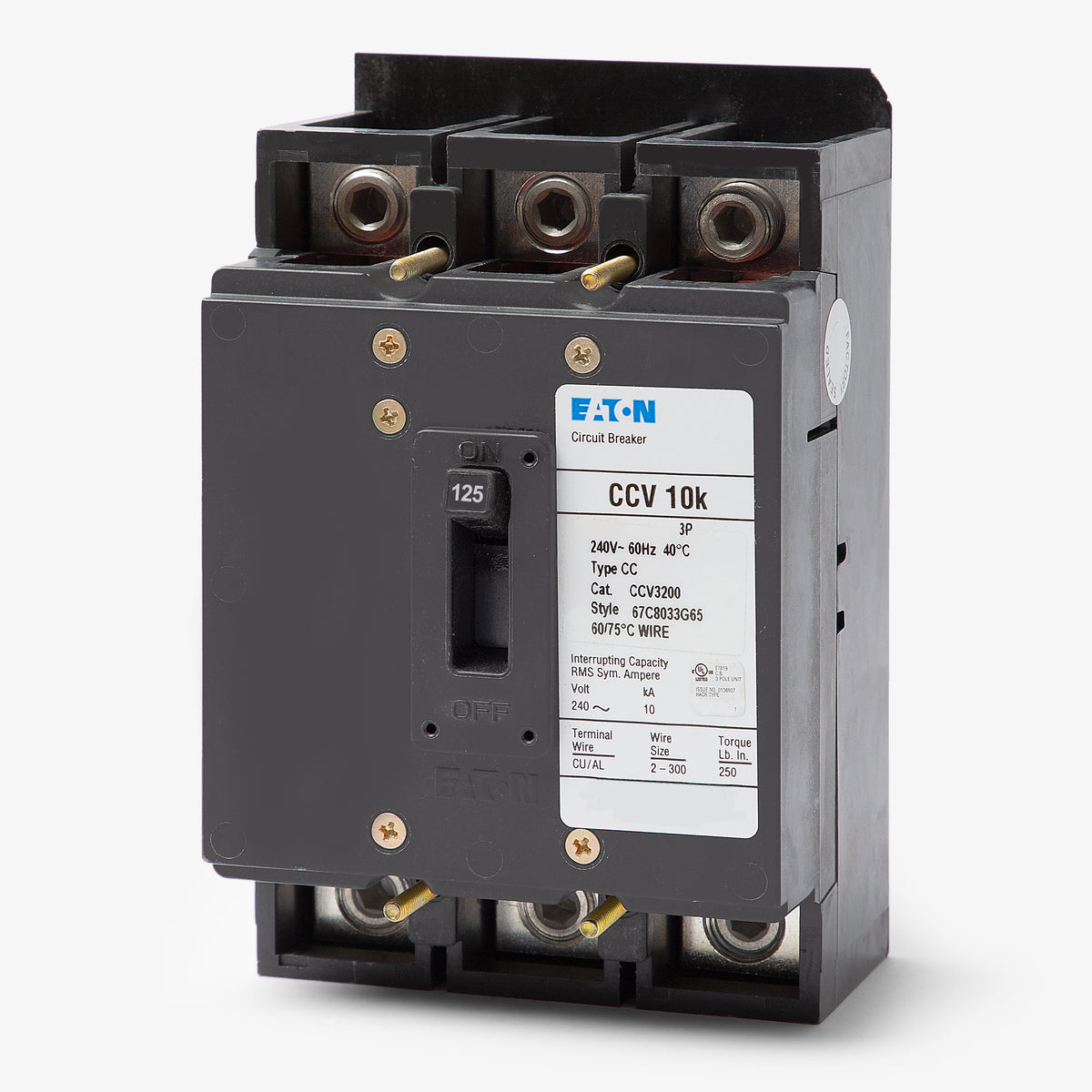

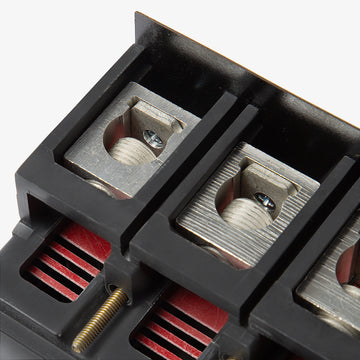

Eaton CCV3125 Main Breaker
- 125
- 3 Pole
Quantity
Eaton CCV3125 Main Breaker
New
Quantity
Description
Eaton CCV3125 Main Breaker
The Eaton CCV3125 is a main breaker with a current rating of 125 Amps and a voltage rating of 120/240V. It has an interrupting rating of 10kAIC.
Specifications
Product FAQs
5 answersWhat meter stacks and enclosures are compatible with the Eaton CCV3125?
This breaker is designed to install into Eaton 1MP, 1MM, and 3MM meter stacks, as well as Type ECC unit enclosures, where it serves as a tenant main disconnect.
What older circuit breaker does the CCV3125 replace?
The Eaton CCV3125 serves as a direct, drop-in replacement for the obsolete Cutler-Hammer CC3125 main breaker.
What type of trip unit does the CCV3125 use?
It features a fixed thermal-magnetic trip unit providing long-time and instantaneous (LI) overcurrent protection.
How does the CCV3125 mount into the enclosure?
It is a unit-mount, or bolt-on, breaker that fastens directly into the meter stack or enclosure rather than snapping onto a busbar.
Can this breaker be used for sub-feeding from an existing panel?
Yes, in addition to serving as a tenant main in group metering, it can be used in feed-through lug blocks specifically designed for sub-feeding from an existing panel.
