Eaton CCV3200 Main Breaker
- 200
- 3 Pole
Quantity
Eaton CCV3200 Main Breaker
New
Quantity
Description

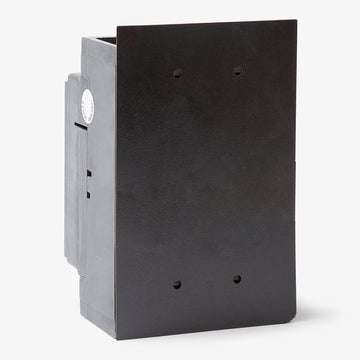

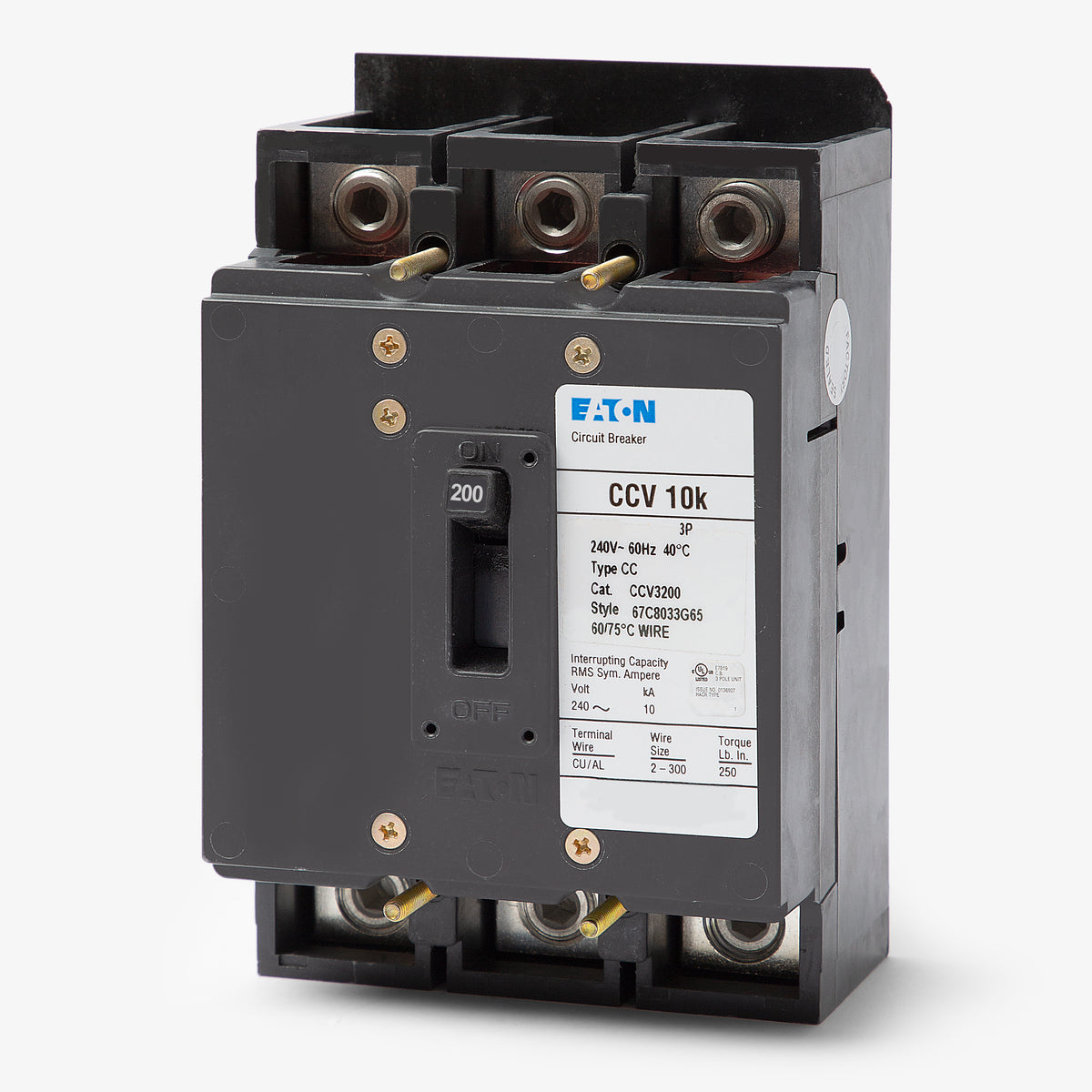

Eaton CCV3200 Main Breaker
The Eaton CCV3200 is a main breaker with a current rating of 200 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 240V. The CCV3200 has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
Product FAQs
6 answersWhat types of equipment is the Eaton CCV3200 main breaker typically installed in?
The CCV3200 is designed for use as a tenant main breaker in Eaton multi-tenant group metering stacks, main service entrance modules, and feed-through lug blocks designed for sub-feeding from an existing panel. It can also mount in standalone 225A-rated ECC unit enclosures.
Can the CCV3200 be used for an outdoor main disconnect?
Yes, when housed in a compatible NEMA 3R rainproof enclosure, such as an Eaton ECC series enclosure, the CCV3200 can safely serve as an outdoor main service disconnect or emergency disconnect.

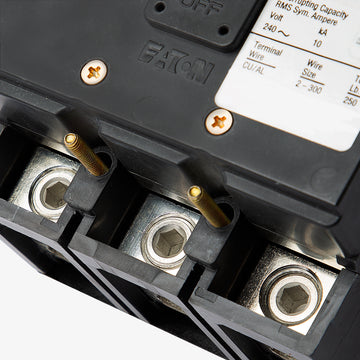

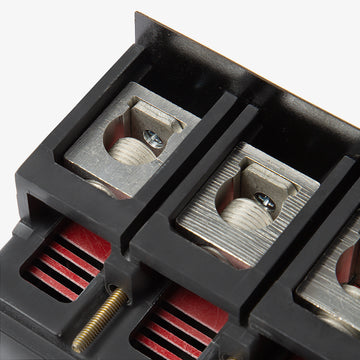

What wire size range do the lugs on the CCV3200 accept?
The factory-installed line and load lugs accommodate copper or aluminum conductors ranging from 2/0 AWG up to 300 kcmil. Terminations should be made using wire rated for 60 or 75 degrees Celsius.
What does the 10kAIC interrupting rating on the CCV3200 mean for my installation?
The 10kAIC rating indicates that the CCV3200 can safely interrupt a short-circuit fault of up to 10,000 amps at 240VAC. Installing this breaker on a commercial or industrial system with a higher available fault current violates electrical codes and risks equipment failure.
Can I install the CCV3200 main breaker on a 480V three-phase system?
No. This breaker has a strict maximum voltage rating of 240VAC. Using it on a 480V circuit exceeds its design limits, which compromises the interrupting capacity and creates a severe safety hazard.
Are Eaton CCV3200 and Cutler-Hammer CCV3200 the exact same circuit breaker?
Yes. Eaton acquired Cutler-Hammer, so the CCV3200 part number represents the identical product, physical footprint, and internal components under both brand names.
