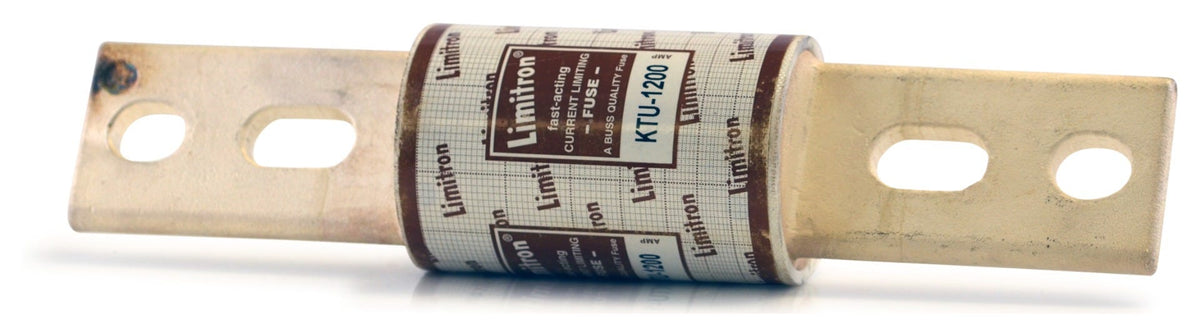

Eaton KTU-1200 Fuse
Quantity
Core Specs
See full specs
Eaton KTU-1200 Fuse
Re-Certified
Quantity
Quantity
Eaton KTU-1200 Fuse
New
Quantity
| Amperage | 1200 A |
|---|---|
| Voltage | 600 V |
| Interrupting Rating | 200 kAIC at 600 Vac |
| Series | KTU |
| Mounting Type | Bolt |
|---|---|
| Frame Type | KTU |
| Connection Type | Bolted blade end X bolted blade end |
| Terminal Connection | Silver Plated Micro Peened |
| Length (in) | 10.75 |
| Width (in) | 2.5 |
| Height (in) | 2.5 |
| For Use With | Large Distribution Switchboards and Power Panelboards |
| Approval | Ul, Csa, Ce |
|---|---|
| Body Material | Melamine Glass Tube, Silver-Plated End Bells |
| Brand | Eaton |
|---|---|
| MPN | KTU-1200 |
| UPC | 51712613125 |
Quantity
Eaton KTU-1200 Fuse
Re-Certified
Quantity
| Amperage | 1200 A |
|---|---|
| Voltage | 600 V |
| Interrupting Rating | 200 kAIC at 600 Vac |
| Series | KTU |
| Mounting Type | Bolt |
|---|---|
| Frame Type | KTU |
| Connection Type | Bolted blade end X bolted blade end |
| Terminal Connection | Silver Plated Micro Peened |
| Length (in) | 10.75 |
| Width (in) | 2.5 |
| Height (in) | 2.5 |
| For Use With | Large Distribution Switchboards and Power Panelboards |
| Approval | Ul, Csa, Ce |
|---|---|
| Body Material | Melamine Glass Tube, Silver-Plated End Bells |
| Brand | Eaton |
|---|
Description
Eaton KTU-1200 Fuse
The Eaton KTU-1200 is a fuse with a current rating of 1200 Amps and a voltage rating of 600V. It has an interrupting rating of 200kAIC at 600VAC. The KTU-1200 has a bolt mounting type and it is used for large distribution switchboards, large machinery disconnects, power panelboards, residential, commercial and industrial applications.
Specifications
| Amperage | 1200 A |
|---|---|
| Voltage | 600 V |
| Interrupting Rating | 200 kAIC at 600 Vac |
| Series | KTU |
| Mounting Type | Bolt |
|---|---|
| Frame Type | KTU |
| Connection Type | Bolted blade end X bolted blade end |
| Terminal Connection | Silver Plated Micro Peened |
| Length (in) | 10.75 |
| Width (in) | 2.5 |
| Height (in) | 2.5 |
| For Use With | Large Distribution Switchboards and Power Panelboards |
| Approval | Ul, Csa, Ce |
|---|---|
| Body Material | Melamine Glass Tube, Silver-Plated End Bells |
| Brand | Eaton |
|---|
