Eaton PDG23M0225E2NL Circuit Breaker
- 225
- 3 Pole
- Panel
Quantity
Eaton PDG23M0225E2NL 3 Pole Circuit Breaker
Re-Certified
Quantity
Description
Eaton PDG23M0225E2NL 3 Pole Circuit Breaker

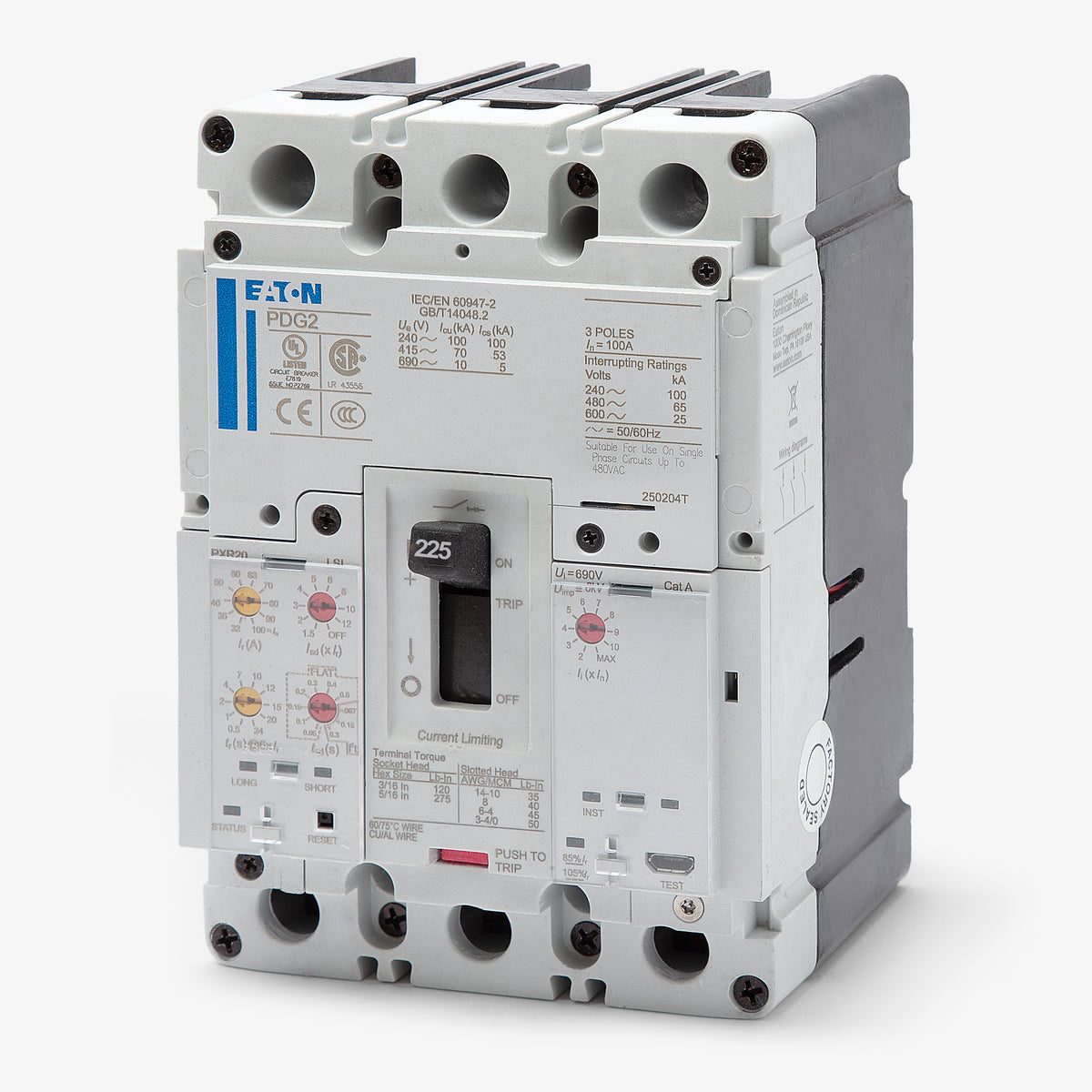

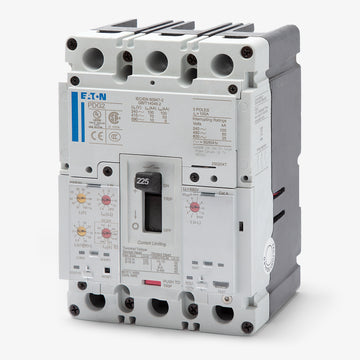

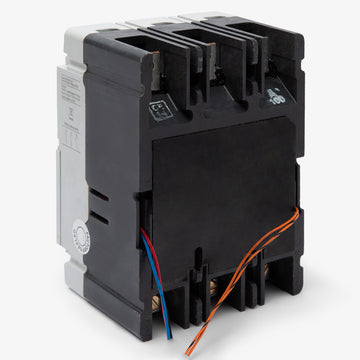

The Eaton PDG23M0225E2NL is a 3 Pole solid state molded case circuit breaker with a current rating of 225 Amps and a voltage rating of 600VAC. It an interrupting rating of 65kAIC at 480VAC. The PDG23M0225E2NL has a bolt-on connection type and includes LSI - long-time, short-time and instantaneous trip functions.
Specifications
| Brand | Eaton |
|---|---|
| Series | Power Defense |
| Amperage | 225 A |
| Poles | 3 |
| Mounting Style | Panel |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kAIC at 480VAC |
| Frame Type | Frame 2 |
|---|---|
| Terminal Type | Standard Load Side Lug |
| Trip Technology | Electronic Trip |
|---|
| Standards | ROHS |
|---|---|
| Approval | CE, CSA, UL, CCC, IEC |
Product FAQs
8 answersWhat wire size do the load lugs on the PDG23M0225E2NL accept?
The included load-side terminals accept 4 AWG to 4/0 AWG copper or aluminum wire.
Are both line and load terminals included with this circuit breaker?

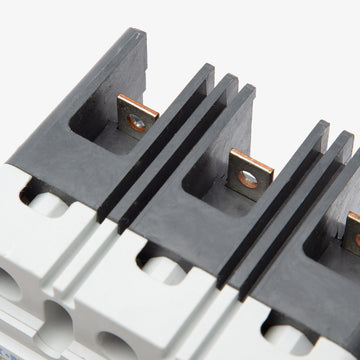

No. The NL suffix in the catalog number indicates that standard terminals are provided on the load side only. Line-side connections must be configured separately based on your panel or busbar requirements.
What protection functions are available on the PDG23M0225E2NL trip unit?
This breaker is equipped with a PXR 20 electronic trip unit that provides adjustable Long-time, Short-time, and Instantaneous (LSI) trip functions.
Can I add internal accessories like a shunt trip to this breaker?
Yes, Eaton Power Defense Frame 2 breakers support field-installable internal accessories, including shunt trips, undervoltage releases, and auxiliary contacts.
Is the PDG23M0225E2NL suitable for global applications?
Yes, the Power Defense series is globally rated and carries certifications for UL 489, CSA, IEC 60947-2, and CCC standards.
What are the physical dimensions of this Frame 2 circuit breaker?
The breaker measures 6.0 inches in height, 4.1 inches in width, and 3.5 inches in depth (152.4 mm x 104.6 mm x 88.9 mm).
Does the PXR 20 trip unit offer diagnostic capabilities?
Yes, the PXR 20 trip unit features breaker health monitoring and load alarms. It can also be connected to the Power Xpert Protection Manager software for testing, troubleshooting, and configuration.
What is the catalog number for the replacement load-side terminal kit?
The replacement 3-pole aluminum box terminal kit for this 225A Frame 2 breaker is Eaton catalog number PDG2X3TA225.
