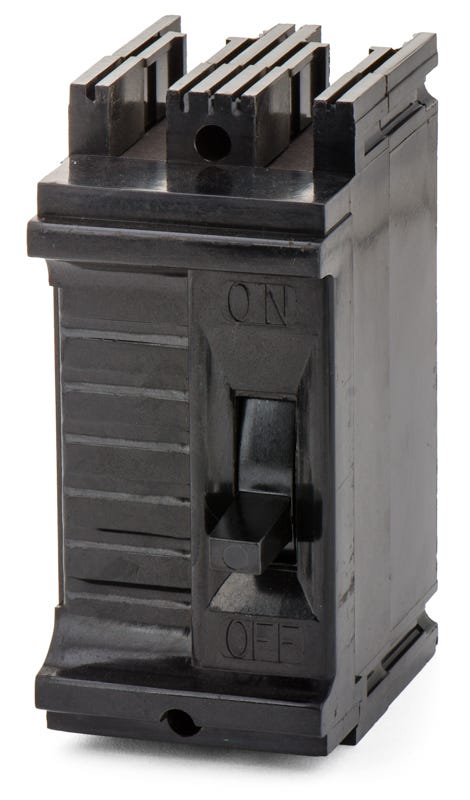

Federal Pacific 2220 NES - 20A 2 Pole Molded Case Circuit Breaker
- 20A
- 2 Pole
- Plug-On
Federal Pacific
2220
NES - 20A 2 Pole Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
2220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NES2220 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Federal Pacific NES2220 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | 2220 |
| Series | NES |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NES |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Bell Alarm, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Sold out
Quantity
Federal Pacific NES2220 - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | 2220-R |
| Series | NES |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NES |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Bell Alarm, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
Description
Designed specifically for legacy infrastructure, this 20A Federal Pacific breaker offers standard long-time and instantaneous trip functions. It serves as a crucial component for maintaining existing residential or commercial power distribution networks. The plug-on configuration mounts into classic Stab-Lok load centers without modifications. When upgrading, users can cross-reference this exact model to the UBIF220N replacement.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | 2220 |
| Series | NES |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | NES |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-10 AWG |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Bell Alarm, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Product FAQs
4 answersWhich load centers accept the Federal Pacific 2220 circuit breaker?
This legacy molded case circuit breaker is engineered specifically for use with Federal Pacific Stab-Lok load centers. Verify your panel accepts NES frame types before installation.
What is the direct aftermarket replacement for the NES2220?
The Connecticut Electric UBIF0220N, also listed as UBIF220N, serves as a direct cross-reference and aftermarket substitute for this legacy Federal Pacific breaker.
Are modification kits required to install the NES2220 in older enclosures?
No, this breaker features a standard plug-on connection that mounts seamlessly into existing Federal Pacific Stab-Lok load centers without requiring aftermarket adapters or modification kits.
Does the NES2220 provide GFCI or AFCI protection?
No, this breaker utilizes fixed thermal and magnetic trip elements for standard overload and short-circuit protection. It does not include ground fault or arc fault circuitry.
