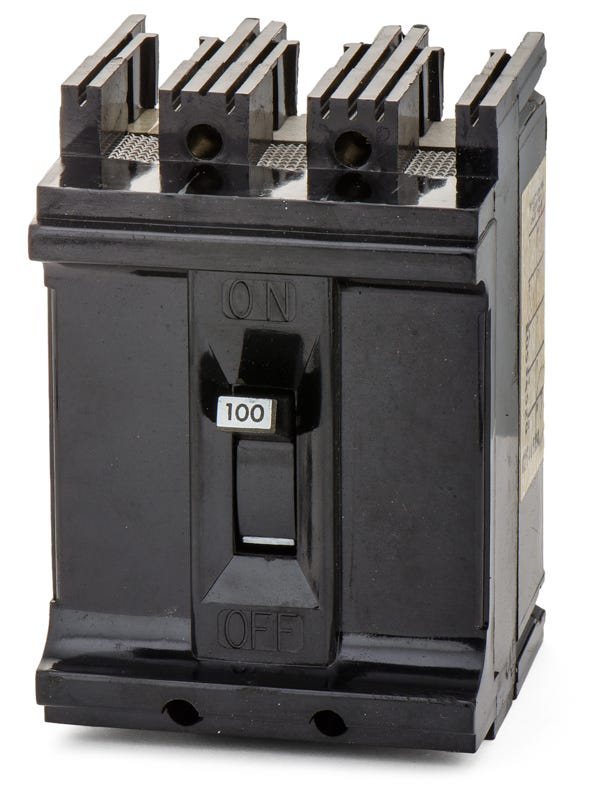

Federal Pacific 2300 NES - 100A 3 Pole Molded Case Circuit Breaker
- 100A
- 3 Pole
- Plug-On
Federal Pacific
2300
NES - 100A 3 Pole Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
2300
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NES2300 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Federal Pacific NES2300 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | 2300 |
| Series | NES |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Panelboards |
| Wire Gauge | 1-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Bell Alarm, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Sold out
Quantity
Federal Pacific NES2300 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | 2300-R |
| Series | NES |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Panelboards |
| Wire Gauge | 1-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Bell Alarm, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty commercial environments, this three-pole 100A molded case breaker provides dependable LI protection. It helps keep vintage electrical infrastructure running safely. Designed as a drop-in solution, the unit installs into classic Federal Pacific Stab-Lok panelboards. It acts as a precise cross-reference for the NES2300, eliminating the need for complex retrofits. With an 18kAIC rating at 240VAC, the common trip feature ensures all phases disconnect simultaneously.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | 2300 |
| Series | NES |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Panelboards |
| Wire Gauge | 1-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Bell Alarm, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the Federal Pacific NES2300?
This breaker is designed for use in classic Federal Pacific Stab-Lok panelboards that accept NES frame molded case circuit breakers.
How does the NES2300 mount into the panelboard?
It features a plug-on mounting style, allowing it to drop directly into compatible Federal Pacific Stab-Lok enclosures without the need for complex retrofits or aftermarket adapters.
What wire sizes are accepted by the load side lugs on this breaker?
The load side lug terminals on the NES2300 accept wire sizes ranging from 1 AWG up to 3/0 AWG.
Are the catalog numbers 2300 and NES2300 interchangeable?
Yes, the Federal Pacific 2300 and NES2300 refer to the same 100A, 3-pole NES frame breaker. These part numbers are used interchangeably for this exact replacement component.
Can the NES2300 be used in direct current applications?
Yes, in addition to its standard 18kA interrupting capacity at 240V AC, this breaker is rated for 5kA at 250V DC, making it suitable for specific direct current systems.
Does this breaker provide common trip functionality?
Yes, as a 3-pole breaker, it features an internal common trip mechanism. If an overload or short circuit occurs on any single phase, all three poles will disconnect simultaneously to ensure system safety.
Is the trip unit on the NES2300 adjustable?
No, this breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) settings.
