Federal Pacific 260111 Circuit Breaker
Quantity
Core Specs
See full specs

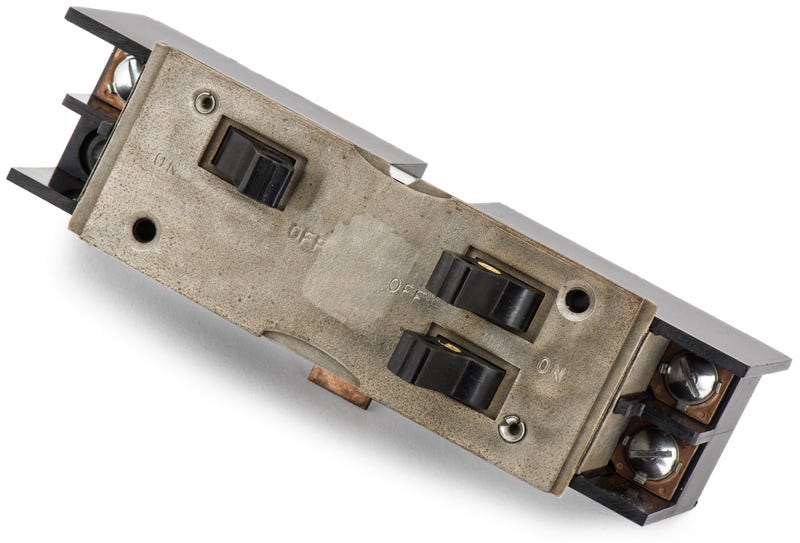

Federal Pacific 260111 1 Pole Circuit Breaker
New
Quantity
Description
260111 Federal Pacific 3-15amp 1 pole Circuit Breaker
Federal Pacific circuit breaker 1 pole 3-15 ampere With NES frame type it has standard interrupting capacity plug-in complete with non-interchangeable trip (LI) Long-Time and Instantaneous trip functions and load side lug terminals thermal magnetic molded case circuit breakers.
Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | 260111 |
| Series | 26 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-In |
Product FAQs
6 answersWhat type of trip protection does the 260111 breaker provide?
It features a non-interchangeable thermal-magnetic trip unit. This delivers both Long-Time and Instantaneous (LI) trip functions to protect branch circuits against sustained overloads and sudden short circuits.
Can the trip unit on the 260111 be modified in the field?
No. This breaker is equipped with a non-interchangeable trip mechanism. The thermal-magnetic components are factory set and cannot be swapped or adjusted by the installer.
How does this Federal Pacific breaker connect to the branch circuit?
The breaker is equipped with standard load side lug terminals. Installers must strip the branch circuit conductor and secure it directly into the mechanical lug according to standard torque specifications.
Is the 260111 suitable for 240V equipment loads?
No. As a 1-pole circuit breaker, it is designed exclusively for 120V single-phase branch circuits. It cannot be used to supply 240V or multi-phase equipment.
Are original Federal Pacific breakers like the 260111 still in production?
Original Federal Pacific Electric components are obsolete and no longer manufactured. This breaker is typically used as a direct replacement part to maintain existing FPE panels, subject to approval by the local authority having jurisdiction.
What mounting style does the NES frame utilize?
The NES frame features a plug-in mounting configuration. This allows the breaker to snap directly into the busbar of a compatible Federal Pacific load center without the need for bolt-on hardware.
