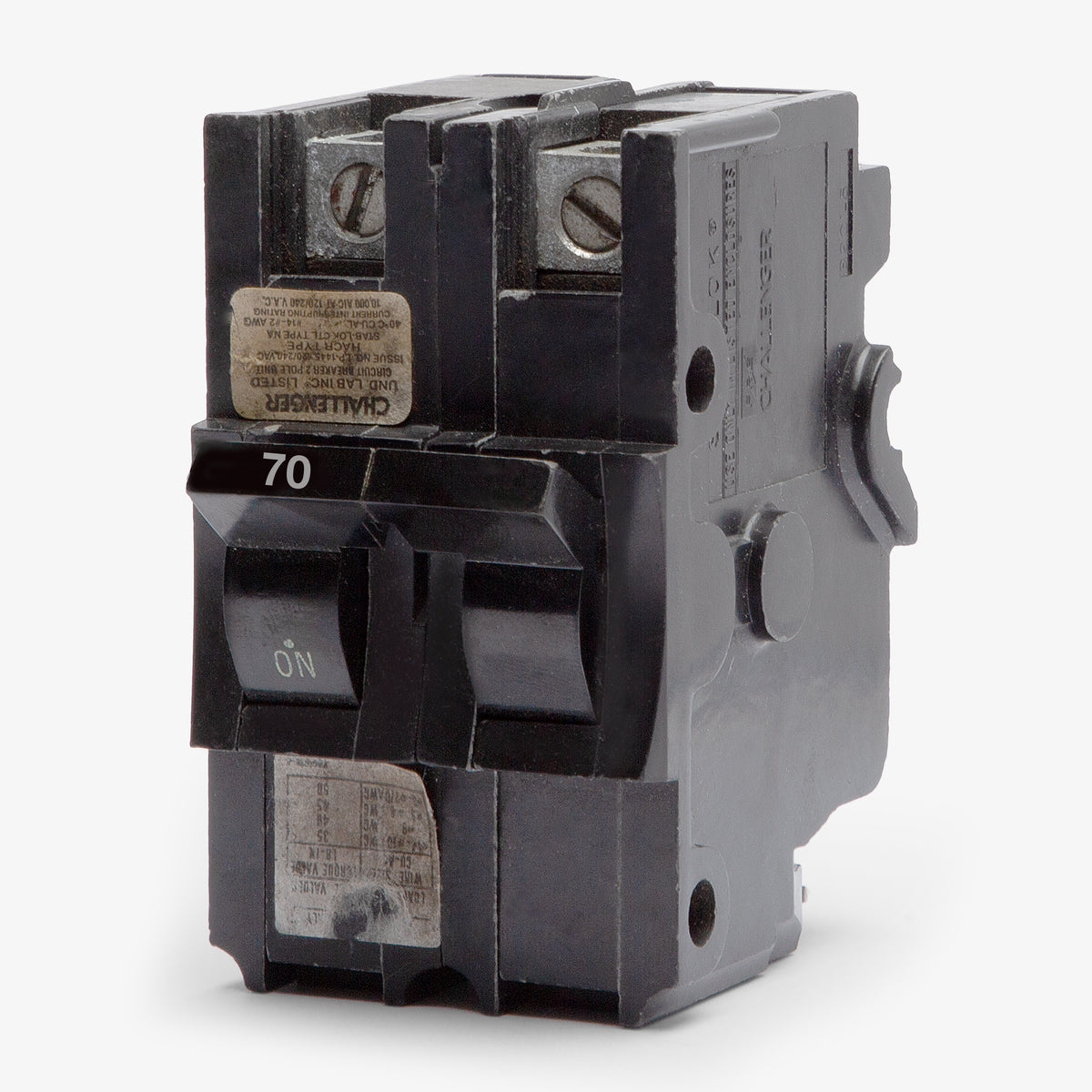

Federal Pacific NA2P70 Miniature Circuit Breaker
- 70A
- 2 Pole
- Plug-On
Federal Pacific
NA2P70
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NA2P70
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NA2P70 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Federal Pacific NA2P70 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NA2P70 |
| Series | NA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok System, Common Trip, 1 Inch per Pole |
Sold out
Quantity
Federal Pacific NA2P70 - 70A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NA2P70-R |
| Series | NA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok System, Common Trip, 1 Inch per Pole |
Similar Items
40A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Built to fit original Stab-Lok enclosures, this 70-ampere component provides reliable thermal-magnetic protection for older electrical systems. It serves as an authentic fit for Federal Pacific panels requiring a two-pole, full-size footprint. Replacing obsolete hardware is straightforward with this unit, which substitutes seamlessly for UBIF270N models. The plug-on mounting style ensures a secure connection without aftermarket adapters. It maintains a 10kA rating and common trip mechanism.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NA2P70 |
| Series | NA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok System, Common Trip, 1 Inch per Pole |
Product FAQs
4 answersWhat panels are compatible with the Federal Pacific NA2P70?
The NA2P70 is designed exclusively for Federal Pacific Electric (FPE) Stab-Lok load centers that accept full-size NA frame breakers. It will also fit compatible Federal Pioneer and American Stab-Lok enclosures.
Is there a modern replacement or alternate catalog number for the NA2P70?
Yes, the NA2P70 is frequently listed under the alternate catalog number NA270. Connecticut Electric manufactures a modern, ETL-listed aftermarket replacement for this breaker, typically found under part number UBIF270N.
What is the physical width of the NA2P70 circuit breaker?
The NA2P70 is a full-size NA frame breaker. It measures 1 inch per pole, making this 2-pole breaker 2 inches wide in total. This distinguishes it from the half-size NC frame breakers, which measure 1/2 inch per pole.
Are there safety concerns associated with Federal Pacific Stab-Lok breakers?
Yes. Original FPE Stab-Lok panels and breakers have a documented history of failing to trip during overload or short-circuit conditions, which can pose a fire hazard. Many electrical professionals and home inspectors recommend replacing the entire Stab-Lok panel when possible.
