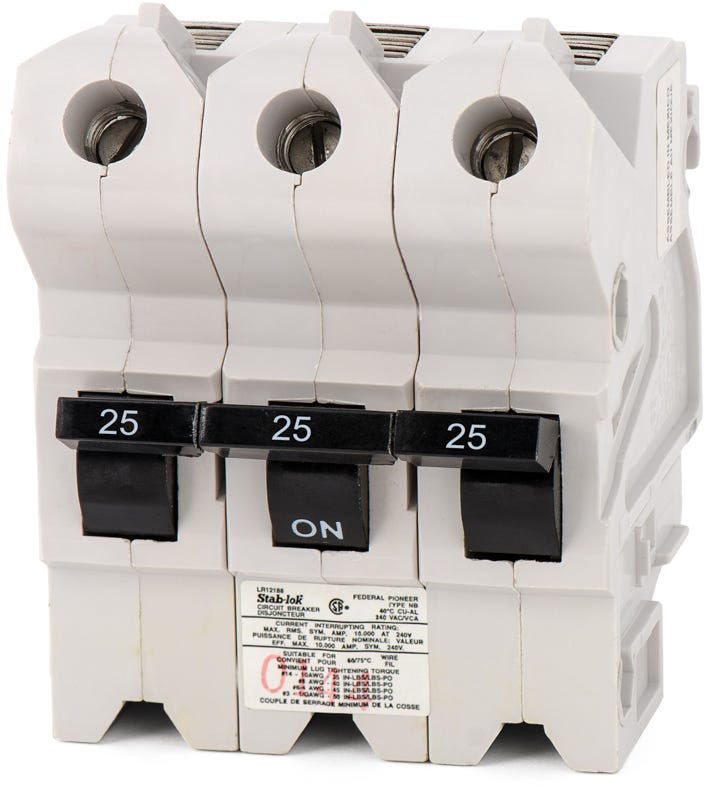

Federal Pacific NB232025 Miniature Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Federal Pacific
NB232025
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NB232025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NB232025 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Federal Pacific NB232025 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB232025 |
| Series | NB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NBLP, NBC, NBDP, CDP Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Sold out
Quantity
Federal Pacific NB232025 - 25A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NB232025-R |
| Series | NB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NBLP, NBC, NBDP, CDP Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Similar Items
20A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
Description
Maintaining legacy electrical networks requires exact-fit components like the Federal Pacific NB232025. This 3-pole, 25A breaker provides fixed thermal-magnetic protection for 240VAC commercial and industrial applications. The bolt-on configuration is engineered to install into specific Federal Pacific enclosures, including NBLP, NBC, NBDP, and CDP panelboards. It features common trip functionality and standard load side lugs. A 10kAIC interrupt rating ensures dependable performance.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NB232025 |
| Series | NB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NBLP, NBC, NBDP, CDP Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip |
Product FAQs
6 answersWhich panelboards are compatible with the NB232025 circuit breaker?
This bolt-on breaker is designed for use in legacy Federal Pacific Electric NBLP, NBC, NBDP, and CDP panelboards. Verify your panel interior accepts NB-frame breakers before installation.
What wire sizes are accepted by the NB232025 terminals?
The factory lugs accept 14 AWG to 2 AWG wire and are rated for both aluminum and copper conductors. Ensure proper torque specifications are applied during installation.
What is the physical width of the NB232025 breaker?
This 3-pole miniature circuit breaker measures 3 inches wide, requiring three standard mounting spaces in a compatible panelboard.
What is the frame size of the NB232025 breaker?
The NB232025 is built on a 100A frame, though it is factory-calibrated with a fixed 25A thermal-magnetic trip unit.
Does the NB232025 provide both overload and short-circuit protection?
Yes, it utilizes a fixed thermal-magnetic trip unit. The thermal element provides long-time overload protection, while the magnetic element provides instantaneous short-circuit protection.
Is the NB232025 an original equipment manufacturer part?
Yes, this unit is an authentic Federal Pacific Electric (FPE) product designed to maintain and service legacy electrical systems.
