Federal Pacific NC045 Miniature Circuit Breaker
- 45A
- 1 Pole
- Plug-On
Federal Pacific
NC045
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NC045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

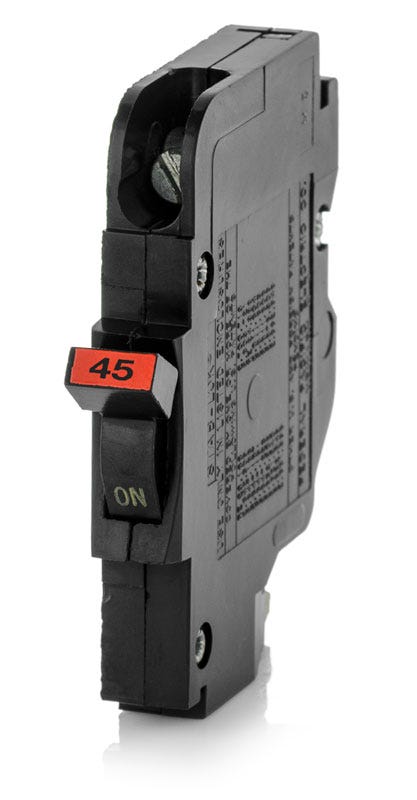

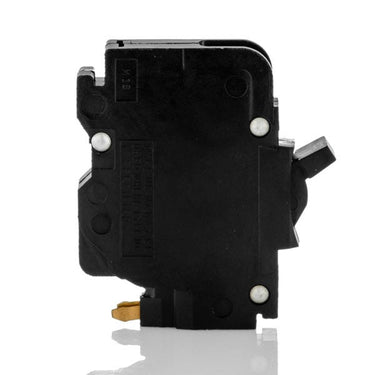

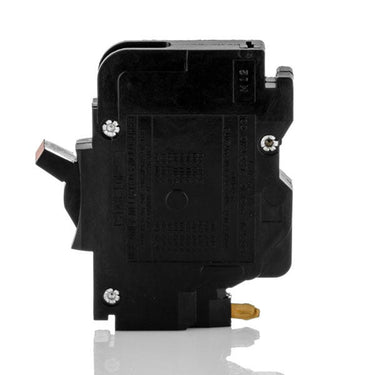

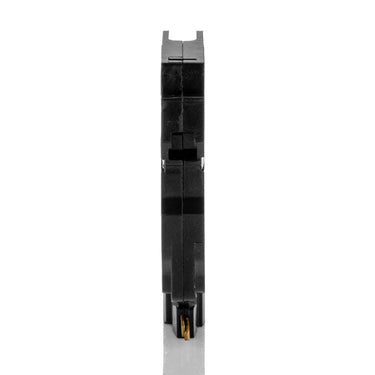

Federal Pacific NC045 - 45A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Similar Items
40A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description
Built to support older infrastructure, this 45-amp miniature breaker offers essential long-time and instantaneous trip functions. It is tailored for residential applications utilizing 120VAC circuits. The device mounts into classic Federal Pacific Stab-Lok panels, offering a precise match for original hardware. Electricians often use it in place of the UBIF045N cross-reference. Its distinctive wafer-style construction requires only a half-inch of space for high-density configurations.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NC045-R |
| Series | NC |
| Amperage | 45A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Tie, Padlock Attachment |
|---|---|
| Accessories | nc045 |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok Design, Thin / Wafer Style (1/2 Inch per Pole), Color Coded Handle |
Product FAQs
4 answersHow much panel space does the NC045 require?
The NC series features a thin, wafer-style construction. This single-pole breaker requires only one half-inch of space on the busbar, allowing for high-density configurations in compatible Stab-Lok enclosures.
What is the Connecticut Electric cross-reference for the NC045?
The UBIF045N is the direct aftermarket replacement manufactured by Connecticut Electric. It is designed to fit the same half-inch Stab-Lok panel slots as the original Federal Pacific NC045.
What wire sizes are compatible with the NC045 terminals?
The breaker lugs are rated for 14 AWG to 4 AWG copper or aluminum conductors. Always verify that your selected wire gauge meets local electrical codes for a 45-amp circuit.
How does the thermal-magnetic trip mechanism protect the circuit?
The fixed thermal-magnetic (LI) unit provides dual protection. The thermal element offers a long-time delay to handle temporary overloads without nuisance tripping, while the magnetic element provides instantaneous tripping during severe short circuits.
