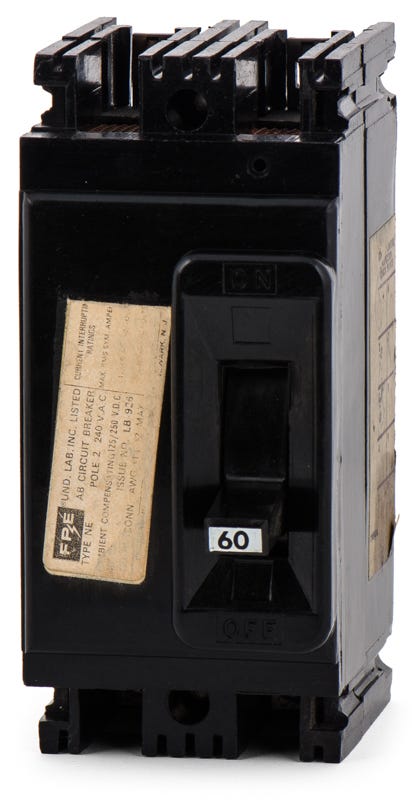

Federal Pacific NE223060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Federal Pacific
NE223060
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE223060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE223060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Manufactured to replace aging components, the Federal Pacific NE223060 delivers essential thermal-magnetic protection. This 60A, 2-pole molded case circuit breaker supports 240VAC commercial systems. This legacy replacement installs into Federal Pacific NE panelboards, eliminating the need for costly upgrades. The bolt-on design ensures a secure connection matching original equipment standards.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE223060-R |
| Series | NE |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
5 answersWhat panelboards accept the NE223060 circuit breaker?
This breaker is designed exclusively for use with legacy Federal Pacific NE panelboards.
How is the NE223060 secured to the panelboard?
It utilizes a bolt-on connection, meaning it must be mechanically bolted to the panelboard bus using the appropriate NE frame mounting hardware.
Is the NE223060 a Stab-Lok breaker?
No. The NE223060 is a commercial bolt-on molded case circuit breaker from the N Frame group. It does not use the residential Stab-Lok plug-on design.
Can the NE223060 be installed in a system with a 22kAIC fault current requirement?
No. This breaker has a maximum interrupting rating of 18kAIC at 240V. Installing it in a system with a higher available fault current violates electrical safety codes.
Are new OEM replacements currently manufactured for the Federal Pacific NE223060?
Federal Pacific Electric is no longer in business, so original equipment manufacturer replacements are not currently produced. Sourcing typically involves finding existing legacy stock or upgrading the panelboard.
