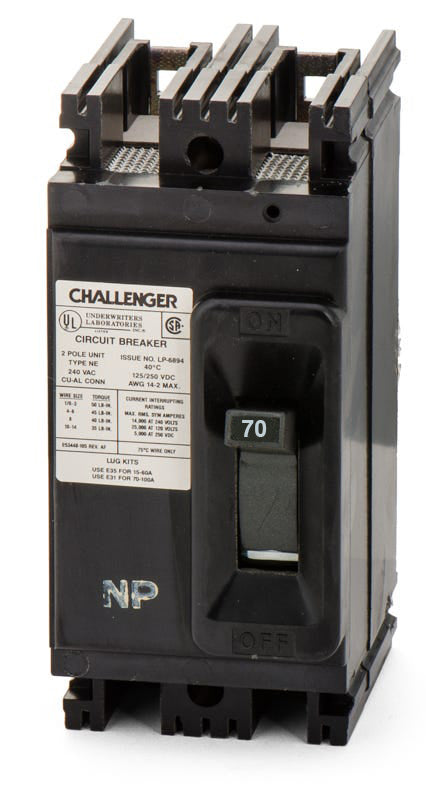

Federal Pacific NE224070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Federal Pacific
NE224070
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE224070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE224070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Federal Pacific NE224070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
Federal Pacific NE224070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Similar Items
45A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, the NE224070 is a 70-amp, 2-pole molded case circuit breaker. Manufactured by Federal Pacific, this N-Frame device utilizes thermal-magnetic trip technology to deliver reliable long-time and instantaneous (LI) protection. This bolt-on breaker installs into classic Federal Pacific NE panelboards, offering a seamless hardware match. Delivering an 18kAIC interrupting capacity at 240VAC, the non-interchangeable trip unit is reverse-feed suitable.Specifications
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC |
| Frame Type | NE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhich panelboards accept the NE224070 circuit breaker?
This breaker is specifically designed for use in legacy Federal Pacific NE panelboards.
What is the allowable wire gauge range for the NE224070 lugs?
The factory terminals accommodate wiring ranging from 14 AWG to 1/0 AWG.
Does the NE224070 plug into the busbar?
No, this is a bolt-on circuit breaker that must be mechanically fastened to the busbars in a Federal Pacific NE panelboard.
Are the thermal and magnetic trip settings adjustable on the NE224070?
No, this breaker features a fixed thermal-magnetic trip unit with non-adjustable long-time and instantaneous (LI) protection settings.
Is the Federal Pacific NE224070 still in active production?
No. Federal Pacific Electric is no longer in business, making the NE224070 a legacy component used strictly for maintaining existing NE panelboards.
Does the NE224070 use the Federal Pacific Stab-Lok design?
No. The NE frame is a commercial molded case circuit breaker that bolts onto the busbar. It is a separate product line from the residential Stab-Lok breakers.
