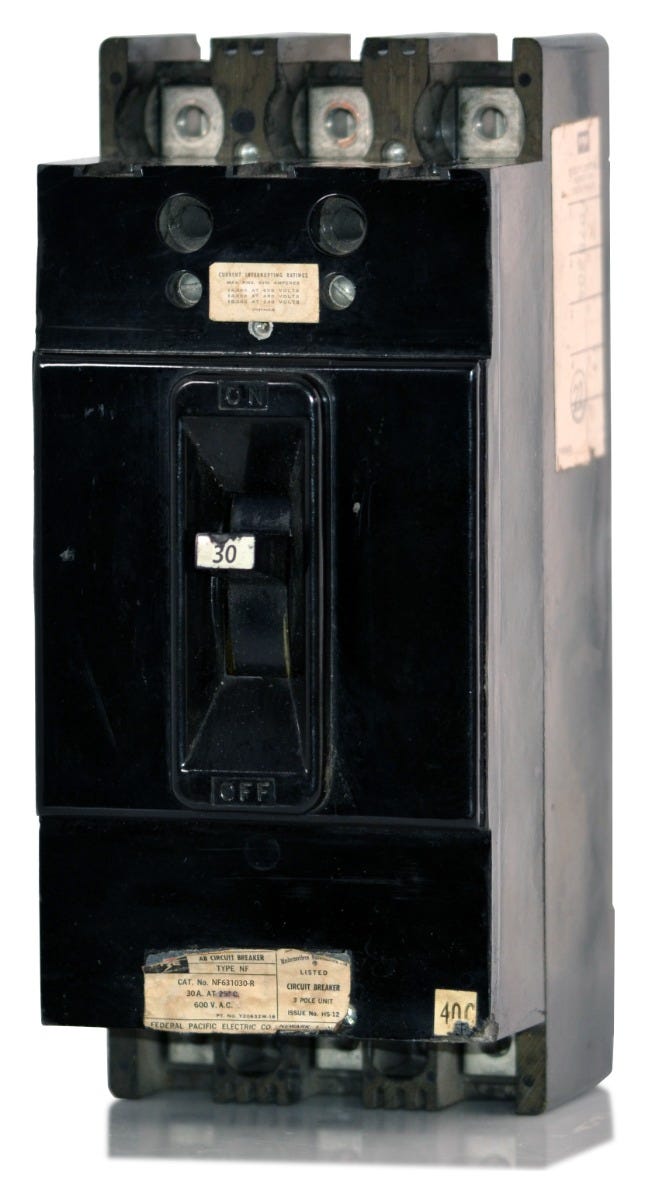

Federal Pacific NF631030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Federal Pacific
NF631030
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NF631030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NF631030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
NF631070 - 70A 3 Pole Molded Case Circuit Breaker
Description
Part of the classic N-Frame series, this 30A molded case circuit breaker delivers dependable thermal-magnetic protection for commercial systems. It features a non-interchangeable trip unit with fixed long-time and instantaneous functions. Designed as an exact replacement, it mounts into legacy Federal Pacific NF panelboards. The UBIF230N serves as a verified substitute. Rated for 18 kAIC at 480VAC, it ensures robust fault clearing. Load side lugs are included for straightforward wiring.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NF631030-R |
| Series | NF |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NF Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40°C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the NF631030 circuit breaker?
This breaker is engineered exclusively for bolt-on installation in legacy Federal Pacific NF panelboards. It will not fit in Stab-Lok or other Federal Pacific panel types.
Is the Federal Pacific NF631030 a Stab-Lok breaker?
No, the NF631030 is a commercial N-Frame molded case circuit breaker. It uses a bolt-on connection and is completely different from the residential plug-on Stab-Lok series.
Is the NF631030 a direct replacement for existing Federal Pacific N-Frame breakers?
Yes, this is an exact replacement for existing 30A, 3-pole NF-series breakers. It matches the original physical dimensions and bolt-on mounting configuration required for Federal Pacific NF panelboards.
Are the thermal and magnetic trip settings adjustable on this model?
No, the NF631030 features a non-interchangeable trip unit with fixed long time and fixed instantaneous trip functions. The trip curve cannot be adjusted in the field.
What wire sizes are compatible with the lugs on the NF631030?
The factory-installed load lugs accept wire gauges ranging from 14 AWG up to 1/0 AWG. Ensure proper torque specifications are followed during installation as required by local electrical codes.
Can this 3-pole breaker be installed in a single-phase panel?
The NF631030 is designed for three-phase NF panelboards. It will not physically fit or properly phase-align in a single-phase-only panelboard chassis.
