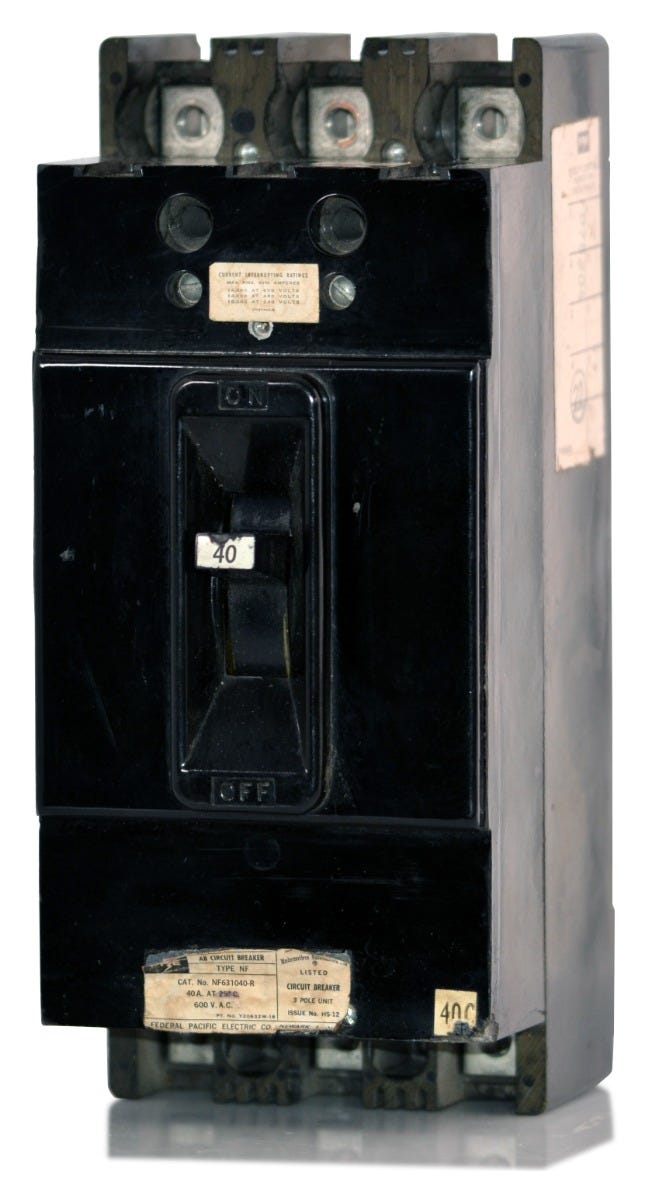

Federal Pacific NF631040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Federal Pacific
NF631040
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NF631040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NF631040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
A reliable solution for commercial facilities, the Federal Pacific NF631040 is a 3-pole, 40A molded case circuit breaker. It utilizes fixed thermal-magnetic trip units for essential overcurrent protection. This legacy component mounts into Federal Pacific NF panelboards, offering a seamless fit without modification. It serves as an exact replacement for aging hardware and is compatible with UBIF240N substitutes.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NF631040-R |
| Series | NF |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NF Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40°C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards accept the NF631040 circuit breaker?
This breaker is specifically designed to mount into legacy Federal Pacific NF panelboards. It is a commercial molded case circuit breaker and is not compatible with standard residential load centers.
Is this breaker compatible with Federal Pacific Stab-Lok residential panels?
No. The NF631040 is an N-Frame molded case circuit breaker designed for commercial and industrial applications. It uses a bolt-on connection and will not fit residential Stab-Lok enclosures.
What wire sizes are supported by the terminals on the NF631040?
The breaker comes equipped with lugs that accept wire gauges ranging from 14 AWG to 1/0 AWG. Ensure you use properly rated conductors for your 40-amp circuit requirements.
Can I adjust the trip curve on this 40-amp breaker?
No, the NF631040 features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous (LI) protection settings are factory set and cannot be modified in the field.
Is the Federal Pacific NF631040 still in active production?
Federal Pacific Electric (FPE) is no longer manufacturing new equipment. This legacy molded case circuit breaker is sourced to help facilities maintain and service existing NF panelboards without requiring a full system replacement.
