Federal Pacific NFJ434100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Federal Pacific
NFJ434100
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NFJ434100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

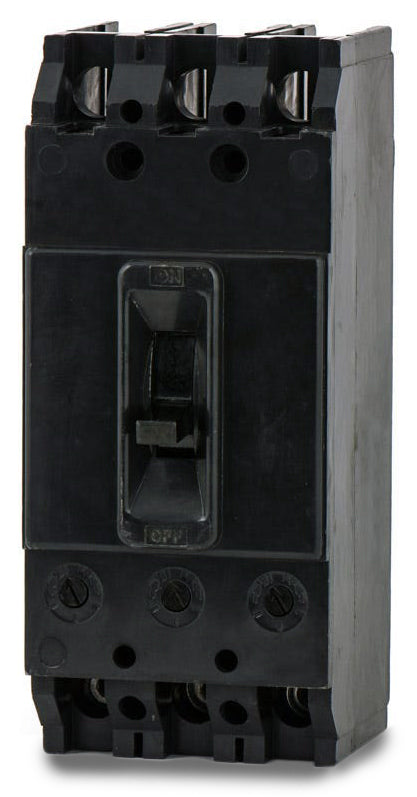

Federal Pacific NFJ434100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

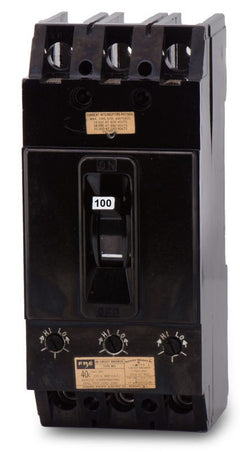

125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Built to restore legacy commercial systems, the NFJ434100 is a 100A, 3-phase molded case circuit breaker from Federal Pacific. It delivers essential overcurrent protection for heavy-duty environments. The bolt-on design mounts into compatible Federal Pacific enclosures, ensuring a secure connection. It serves as a direct replacement for discontinued N-Frame hardware. Featuring an 18 kAIC rating at 480VAC, it employs fixed thermal-magnetic trip units for consistent performance.Specifications
| Brand | Federal Pacific |
|---|---|
| Series | NFJ |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC |
| Frame Type | NFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the NFJ434100?
This bolt-on N-Frame circuit breaker is designed exclusively for legacy Federal Pacific commercial panelboards and switchgear that accept NFJ-frame breakers.
What is the high-interrupting equivalent for the NFJ434100?
The Federal Pacific HFJ434100 is the high-interrupting capacity equivalent. It shares the same physical dimensions and bolt-on mounting but offers higher interrupting ratings, serving as a direct drop-in replacement for the NFJ434100.
What size wire do the lugs on the NFJ434100 accept?
The load-side lug terminals on this breaker accommodate wire gauges from 4 AWG up to 300 kcmil. Installers must ensure proper torque specifications are followed to maintain a secure connection.
Can the trip settings on the NFJ434100 be adjusted?
No. This breaker features a non-interchangeable thermal magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip functions. It does not offer adjustable trip settings.
How does the NFJ434100 mount into the panelboard?
It utilizes a bolt-on connection type, which provides a secure, vibration-resistant mechanical and electrical connection directly to the panelboard bus bars.
Are Federal Pacific NFJ commercial breakers the same as Stab-Lok residential breakers?
No. The NFJ series consists of commercial-grade, bolt-on molded case circuit breakers. They are entirely different in design, mounting, and application from the Federal Pacific Stab-Lok residential plug-on breakers.
