Siemens LD63F600 Frame Only
Quantity
Core Specs
See full specs
Siemens LD63F600 Frame Only
New
Quantity
Description

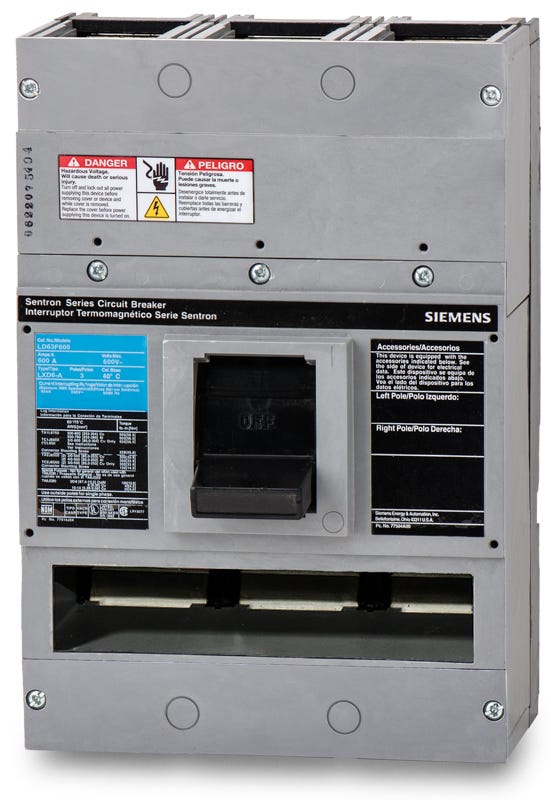

LD63F600 - Siemens Circuit Breaker Frame
• Authentic Siemens / ITE Product
• UPC : 783643213920
• Fixed Thermal Adjustable Magnetic Trip Ld Frame
• 600 Vac At 50/60 Hz 500 Vdc
• 250 To 600 Ampere
• 3 Pole
• Interrupting Rating 65 Kiloampere At 240 Vac 35 Kiloampere At 480 Vac 25 Kiloampere At 600 Vac 25 Kiloampere At 500 Vdc (Ul)
• 65 Kiloampere At 220/240 Vac 40 Kiloampere At 380/415 Vac 30 Kiloampere At 500 Vac (Iec)
• Terminal Line Lug Load Lug
• Size 7.5 Inch W X 5.44 Inch D X 11 Inch H
• Speedfax[T
Specifications
| Mounting Type | Bolt-On |
|---|---|
| Voltage | 600 V |
| Poles | 3 |
| Series | LD |
| Phase | 3 |
|---|
| Contactor Type | Magnetic |
|---|
| Approval | UL Listed and CSA Certified |
|---|
| Brand | Siemens |
|---|---|
| MPN | LD63F600 |
| UPC | 783643213920 |
