Eaton JM60030-3CR Fuse Block
Quantity
Core Specs
See full specs
Eaton JM60030-3CR Fuse Block
New
Quantity
Description

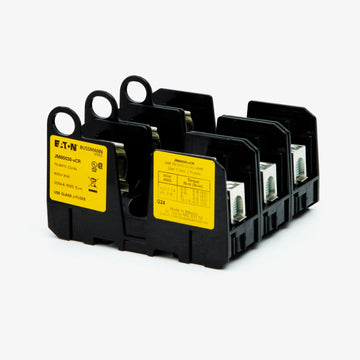

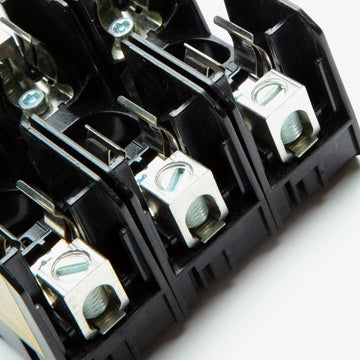

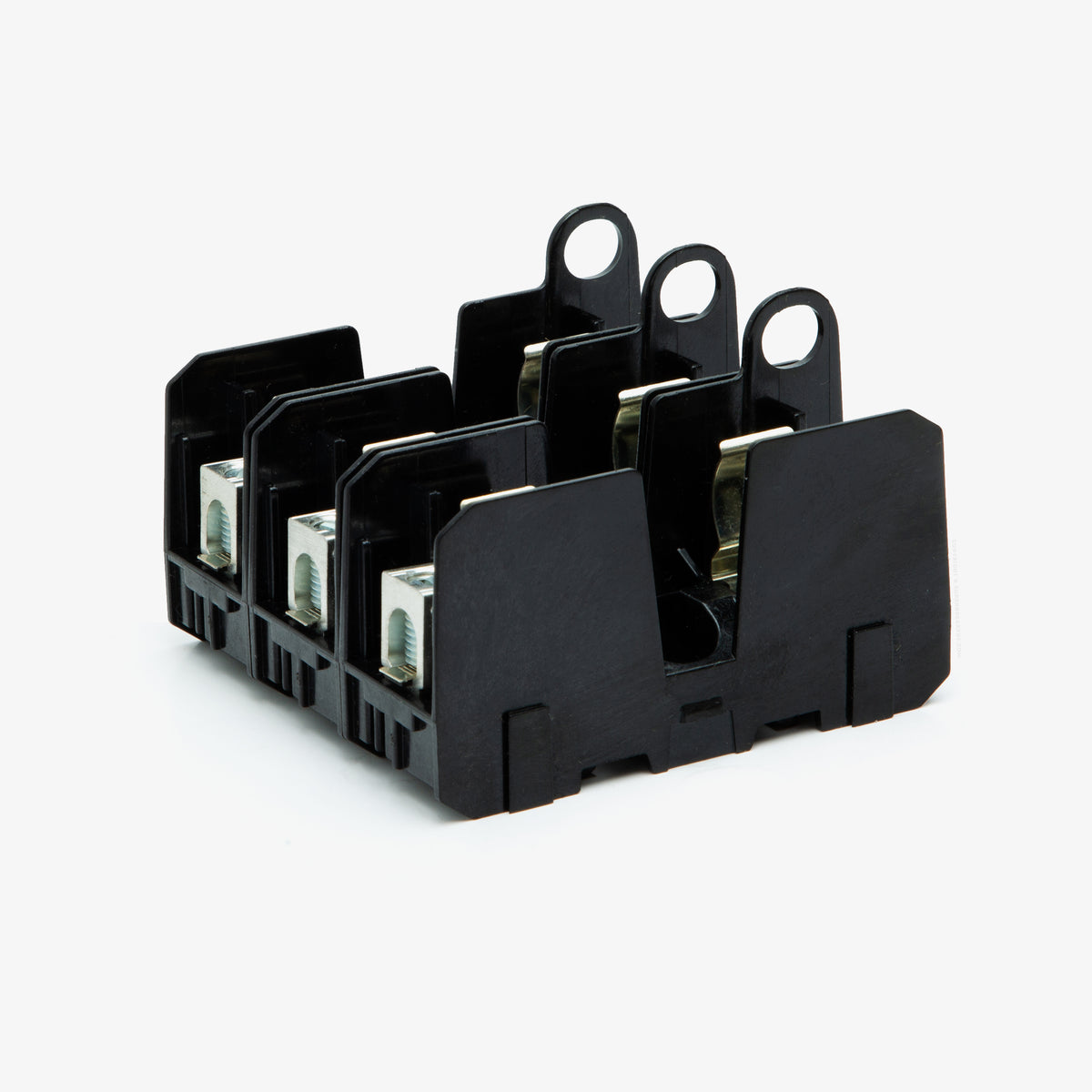

Eaton JM60030-3CR Fuse Block
The Eaton JM60030-3CR is a fuse block with a current rating of 0-30 Amps and a voltage rating of 600VAC/VDC. It has an interrupting rating of 200kAIC. The JM60030-3CR has din rail, surface, panel mounting type and it is used for Low-Peak LPJ series time delay, Limitron JKS, DFJ series ferrule fuses.
Specifications
| Amperage | 0-30 A |
|---|---|
| Voltage | 600VAC/VDC |
| Series | JM |
| Poles | 3 |
| Interrupting Rating | 200kAIC |
|---|
| Mounting Type | Din Rail, Surface, Panel |
|---|---|
| Frame Type | JM60 |
| Terminal Connection | Box Lug |
| Wire Gauge | AWG 14 to AWG 2, AWG 8 to AWG 2, Cu/Al |
| For Use With | Low-Peak LPJ Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuses |
| Approval | UL, CSA, CE |
|---|---|
| Standards | RoHS |
| Temperature Rating | -40 to 120 °C |
| Body Material | Thermoplastic |
| Brand | Eaton |
|---|
