Eaton JM60200-1CR Fuse Block
Quantity
Core Specs
See full specs
Eaton JM60200-1CR Fuse Block
New
Quantity
Description

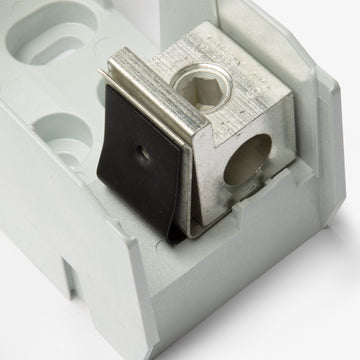

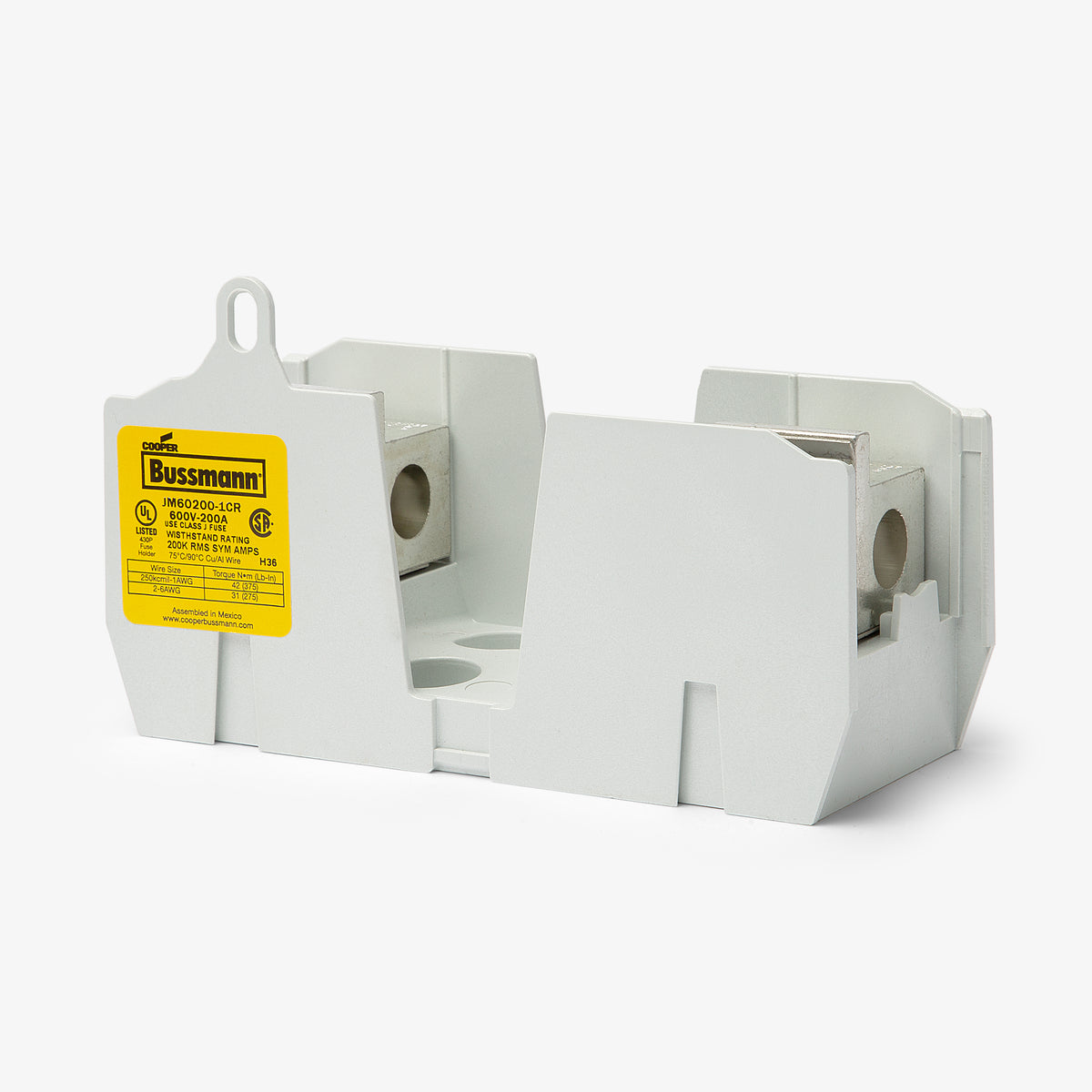

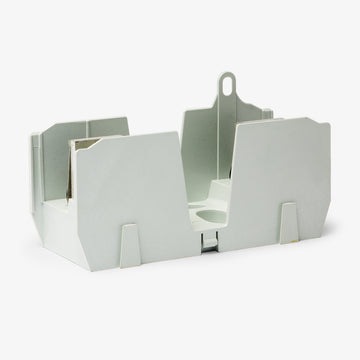

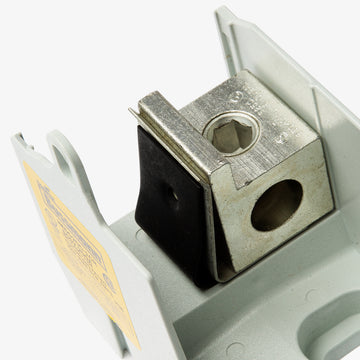

Eaton JM60200-1CR Fuse Block
The Eaton JM60200-1CR is a 1 Pole fuse block with a current rating of 110-200 Amps and a voltage rating of 600VAC, 300VDC. It has an interrupting rating of 200kAIC. The JM60200-1CR has both bolt-down and din rail mounting type and it is used for electrical assemblies, panels and EOEMs applications.
Specifications
| Amperage | 110-200 A |
|---|---|
| Voltage | 600VAC, 300VDC |
| Series | Bussmann |
| Poles | 1 |
| Interrupting Rating | 200kAIC |
|---|
| Mounting Type | Bolt-Down, Din Rail |
|---|---|
| Frame Type | JM60 |
| Connection Type | Knife Blade End x Knife Blade End |
| Terminal Connection | Box Lug |
| Wire Gauge | 6 AWG to 250 MCM |
| Approval | Ul, Csa, Ce |
|---|---|
| Standards | RoHS |
| Body Material | Thermoplastic |
| Brand | Eaton |
|---|---|
| MPN | JM60200-1CR |
| UPC | 51712387392 |
