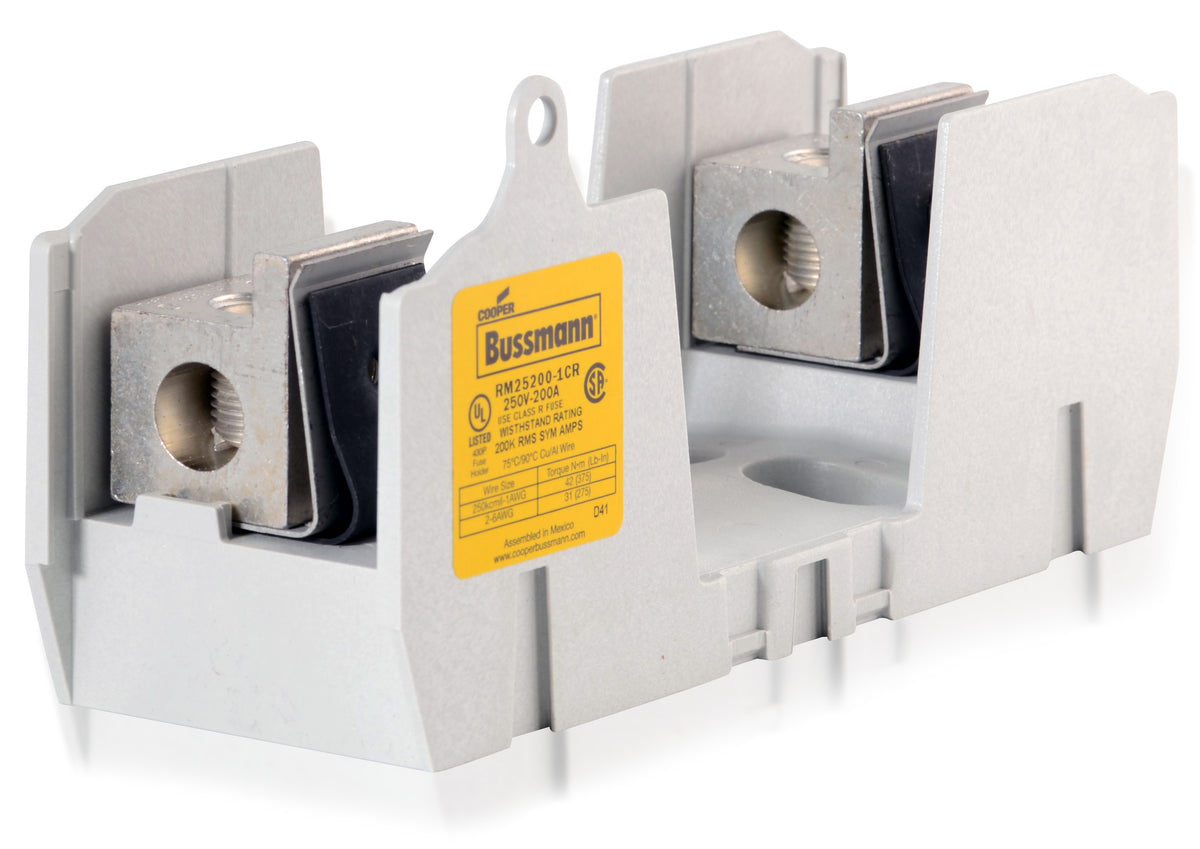

Eaton RM25200-1CR Fuse Block
Quantity
Core Specs
See full specs
Eaton RM25200-1CR Fuse Block
New
Quantity
Description
Eaton RM25200-1CR Fuse Block
The Eaton RM25200-1CR is a 1 Pole fuse block with a current rating of 110-200 Amps and a voltage rating of 250VAC/VDC. It features with RM25 frame type. The RM25200-1CR has both bolt-down and din rail mounting type and it is used for RK1, RK5 fuse.
Specifications
| Amperage | 110-200 A |
|---|---|
| Voltage | 250VAC/VDC |
| Series | RM |
| Poles | 1 |
| Mounting Type | Bolt-Down, Din Rail |
|---|---|
| Frame Type | RM25 |
| Connection Type | Knife Blade End x Knife Blade End |
| Terminal Connection | Box Lug |
| Wire Gauge | 6 AWG to 250 MCM |
| For Use With | RK1, RK5 Fuse |
| Standards | UL, CSA, RoHS |
|---|---|
| Temperature Rating | -40 to 120°C |
| Body Material | Thermoplastic |
| Brand | Eaton |
|---|---|
| MPN | RM25200-1CR |
| UPC | 51712387330 |
