Eaton RM60100-2CR Fuse Block
Quantity
Core Specs
See full specs
Eaton RM60100-2CR Fuse Block
New
Quantity
Description

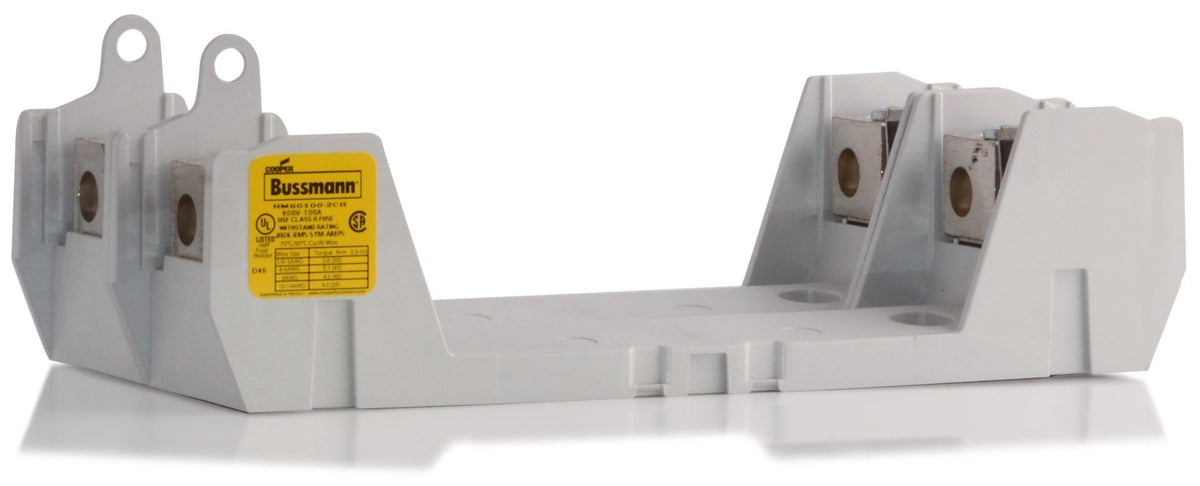

Eaton RM60100-2CR Fuse Block
The Eaton RM60100-2CR is a 2 Pole fuse block with a current rating of 70-100 Amps and a voltage rating of 600VAC, 300VDC. It features with RM60 frame type. The RM60100-2CR has both bolt-down and din rail mounting type and it is used for RK1, RK5 fuse.
Specifications
| Amperage | 70-100 A |
|---|---|
| Voltage | 600VAC, 300VDC |
| Series | RM |
| Poles | 2 |
| Mounting Type | Bolt-Down, Din Rail |
|---|---|
| Frame Type | RM60 |
| Connection Type | Knife Blade End x Knife Blade End |
| Terminal Connection | Box Lug |
| Wire Gauge | 14 to 1/0 AWG |
| For Use With | RK1, RK5 Fuse |
| Standards | UL, CSA, RoHS |
|---|---|
| Body Material | Thermoplastic |
| Brand | Eaton |
|---|---|
| MPN | RM60100-2CR |
| UPC | 51712391221 |
