ABB / General Electric THED113020WL Molded Case Circuit Breaker
- 20A
- 1 Pole
- Unit Mount
Quantity

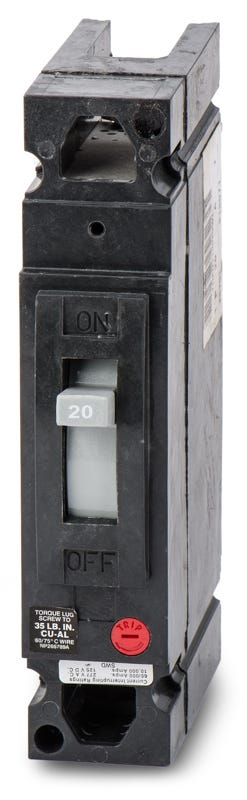

ABB / General Electric THED113020WL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED113020WL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113020WL |
| Series | THED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Frame Type | THED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, SWD Rated, HID Rated |
Quantity
ABB / General Electric THED113020WL - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | THED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Frame Type | THED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, SWD Rated, HID Rated |
Description
Designed for standalone mounting, this 20-amp E-frame breaker features the WL suffix, indicating the inclusion of both line and load lugs. It fastens into GE enclosures, switchboards, and motor control centers rather than standard panelboards. Delivering a 65kAIC rating at 277VAC, it replaces the lower-interrupting TED113020WL while providing reliable thermal-magnetic LI protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113020WL |
| Series | THED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Frame Type | THED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, SWD Rated, HID Rated |
Product FAQs
5 answersWhat does the "WL" suffix indicate on the THED113020WL?
The "WL" suffix designates that the breaker comes equipped with factory-installed copper/aluminum (Cu/Al) lugs on both the line and load sides.
What equipment is the THED113020WL compatible with?
As part of the GE E150 line, this unit-mount breaker is designed for installation in GE switchboards, motor control centers, and industrial enclosures. It is not compatible with standard plug-on or bolt-on panelboards.
Can the THED113020WL be reverse fed?
Yes, GE THED series molded case circuit breakers are suitable for reverse feed applications.
Is the THED113020WL HACR rated?
Yes, GE THED series breakers 15 amps and higher, including this 20-amp model, are UL listed for Heating, Air Conditioning, and Refrigeration (HACR) applications.
Is the THED113020WL a current production breaker?
The THED series is a legacy GE E-frame molded case circuit breaker. Following ABB's acquisition of GE Industrial Solutions, it is classified as a legacy MCCB, primarily sourced for replacing existing units in older switchboards and motor control centers.
