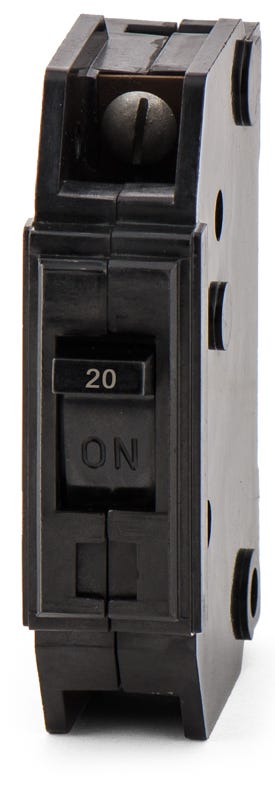

ABB / General Electric TQ1120 Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
ABB / General Electric
TQ1120
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TQ1120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQ1120 - 20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTHQB1120
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1120HID
20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, this 20A, 1-pole breaker delivers robust thermal-magnetic protection for everyday electrical loads. It is engineered with a quick-make, quick-break mechanism to ensure reliable operation. UL classified for compatibility, it installs easily into Square D QO load centers as a verified replacement for QO120 and CL120 units. With a 10kAIC rating at 120/240VAC, this plug-on breaker is fully HACR and SWD rated for HVAC and fluorescent lighting applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQ1120-R |
| Series | TQ |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Square D QO Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489 |
| Approval | UL Classified |
| Temp Rating | 60C to 75C |
| Construction Features | Classified for use in Square D QO Panelboards, HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Product FAQs
6 answersCan the GE TQ1120 be used to replace a Square D QO120 breaker?
Yes, the GE TQ1120 is a UL Classified 3/4-inch miniature circuit breaker designed as a direct replacement for 20A, 1-pole Square D QO breakers (such as the QO120) in approved load centers.
Will the TQ1120 fit in a standard GE PowerMark Gold load center?
No. Although manufactured by GE / ABB, the TQ series features a 3/4-inch footprint designed exclusively for Square D QO panels. Standard GE load centers require 1-inch THQL or 1/2-inch THQP breakers.
How does the TQ1120 mount to the panel busbar?
The TQ1120 utilizes a plug-on mounting style designed to clip directly onto the busbars of Square D QO load centers. It does not use a bolt-on connection to the bus.
What type of conductors can be terminated on the TQ1120 box lugs?
The box lug terminals are rated for both copper (Cu) and aluminum (Al) conductors. They accept wire gauges from 14 to 8 AWG for copper, and 12 to 8 AWG for aluminum.
Are the trip settings on the TQ1120 adjustable?
No, the TQ1120 features fixed thermal and fixed magnetic trip mechanisms. The long-time and instantaneous trip functions cannot be adjusted in the field.
Does the TQ1120 provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic breaker equipped with long-time and instantaneous (LI) trip functions. It provides overload and short-circuit protection but does not include GFCI or AFCI circuitry.
