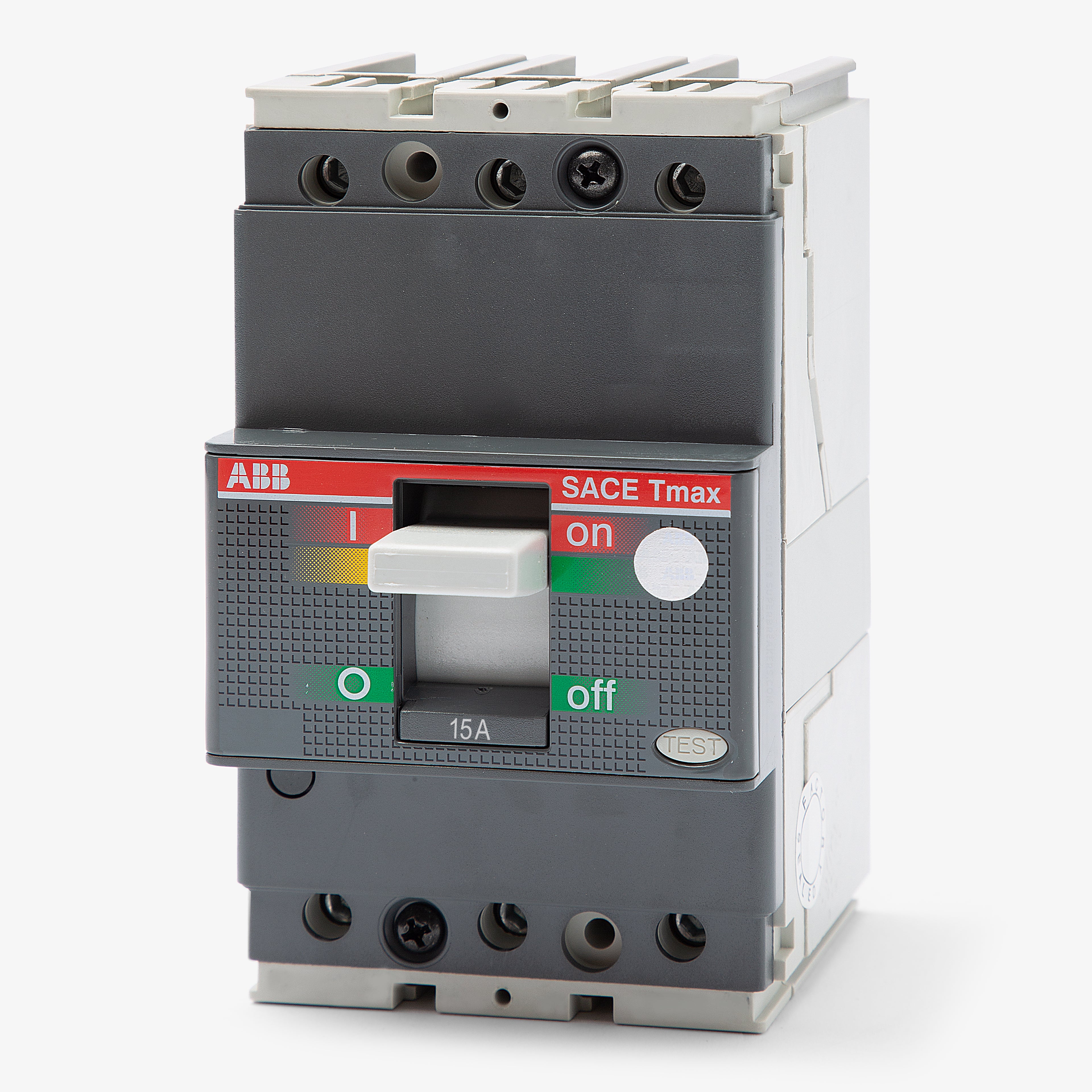

ABB T1N015TL - 15A 3 Pole Molded Case Circuit Breaker

New

$522.00 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Providing reliable branch circuit protection, the ABB T1N015TL is a 15A, 3-pole molded case circuit breaker. As part of the SACE Tmax T1N family, it utilizes fixed thermal-magnetic trip technology to deliver long-time and instantaneous (LI) defense. This panel-mount unit integrates seamlessly into ABB Spectra and ReliaGear panelboards, along with Tmax enclosures. For future upgrades, it is replaced by the XT1NU3015AAA000XXX, though a retrofit kit is required for older panels.

Specifications

Brand ABB
Series T1N
Amperage 15A
Voltage 240VAC, 480Y/277VAC, 600Y/347VAC, 250VDC, 500VDC
Poles 3
Phase 3
AIC Rating 35kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 600Y/347VAC, 25kA @ 250VDC, 25kA @ 500VDC
Mounting Style Panel Mount
Terminal Type Lugs
For Use With ABB Spectra Panelboards, ABB ReliaGear Panelboards, ABB Tmax Enclosures
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14 AWG - 1/0 AWG (Cu)
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, DIN Rail Adapter, Padlock Attachment, Motor Operator
Accessories Lugs
Standards CSA C22.2 No. 5.1, IEC 60947-2, UL 489
Approval CSA, HACR, IEC, UL
Temp Rating 40C
Construction Features Double Insulation, Positive Operation, Reverse Feed, HACR Rated
