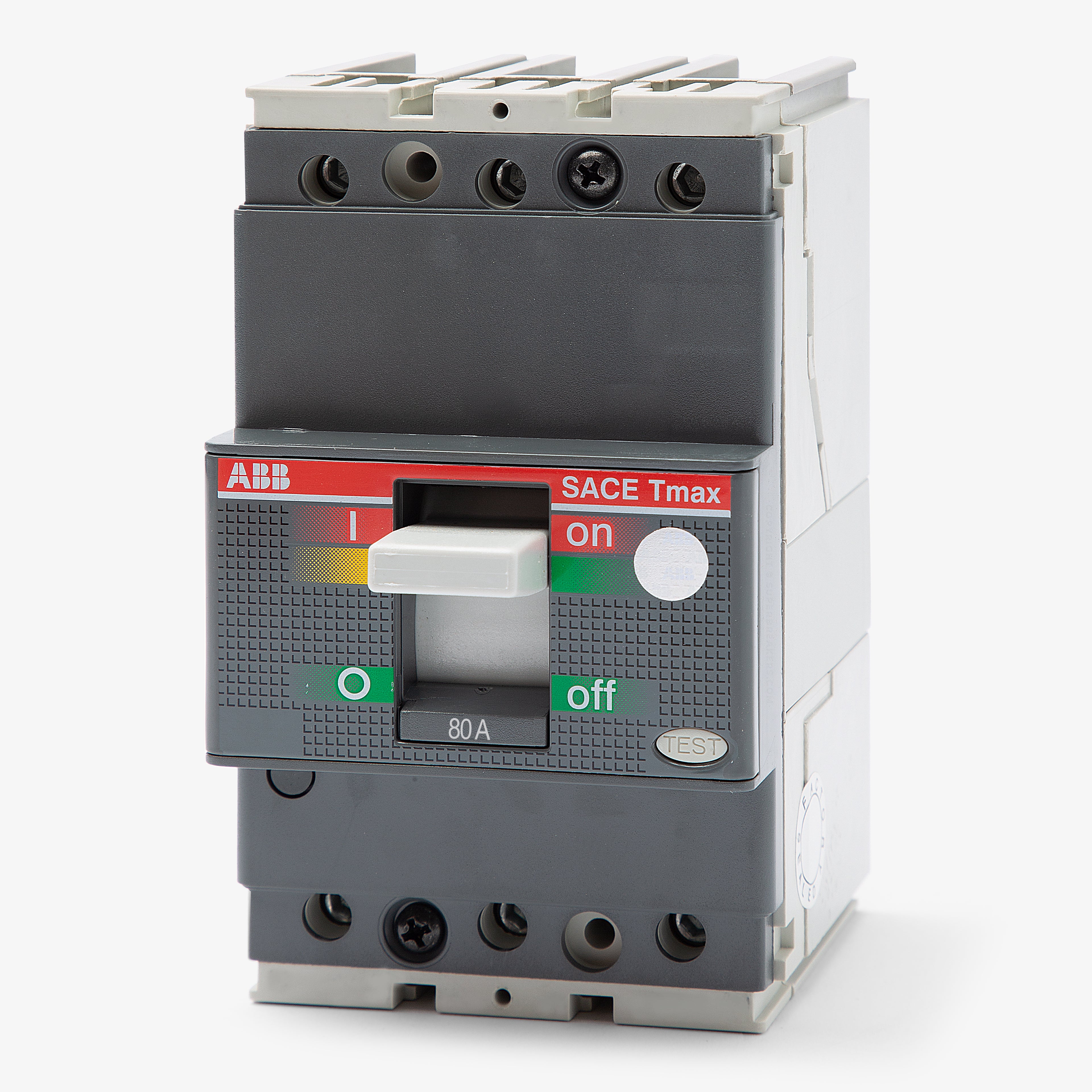

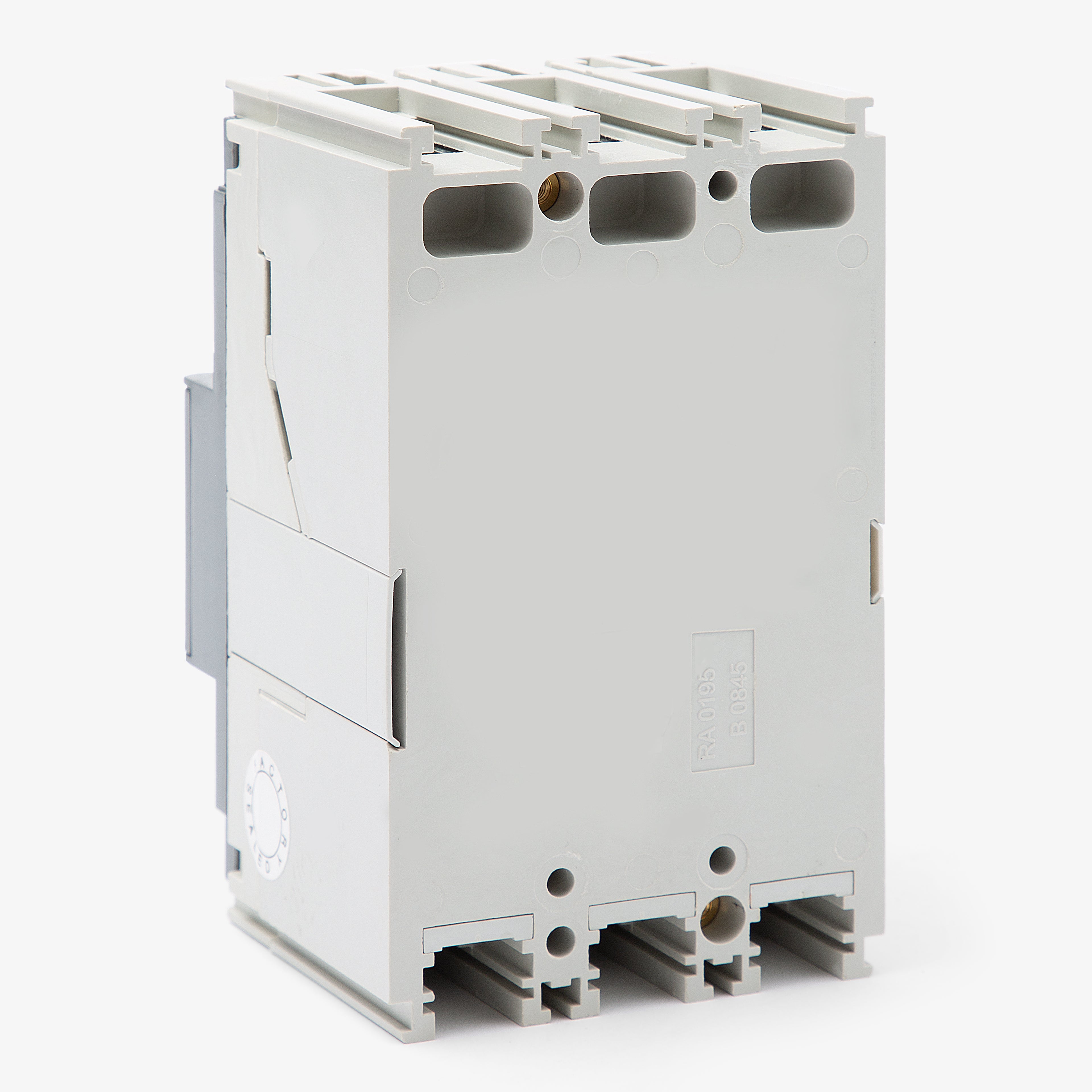

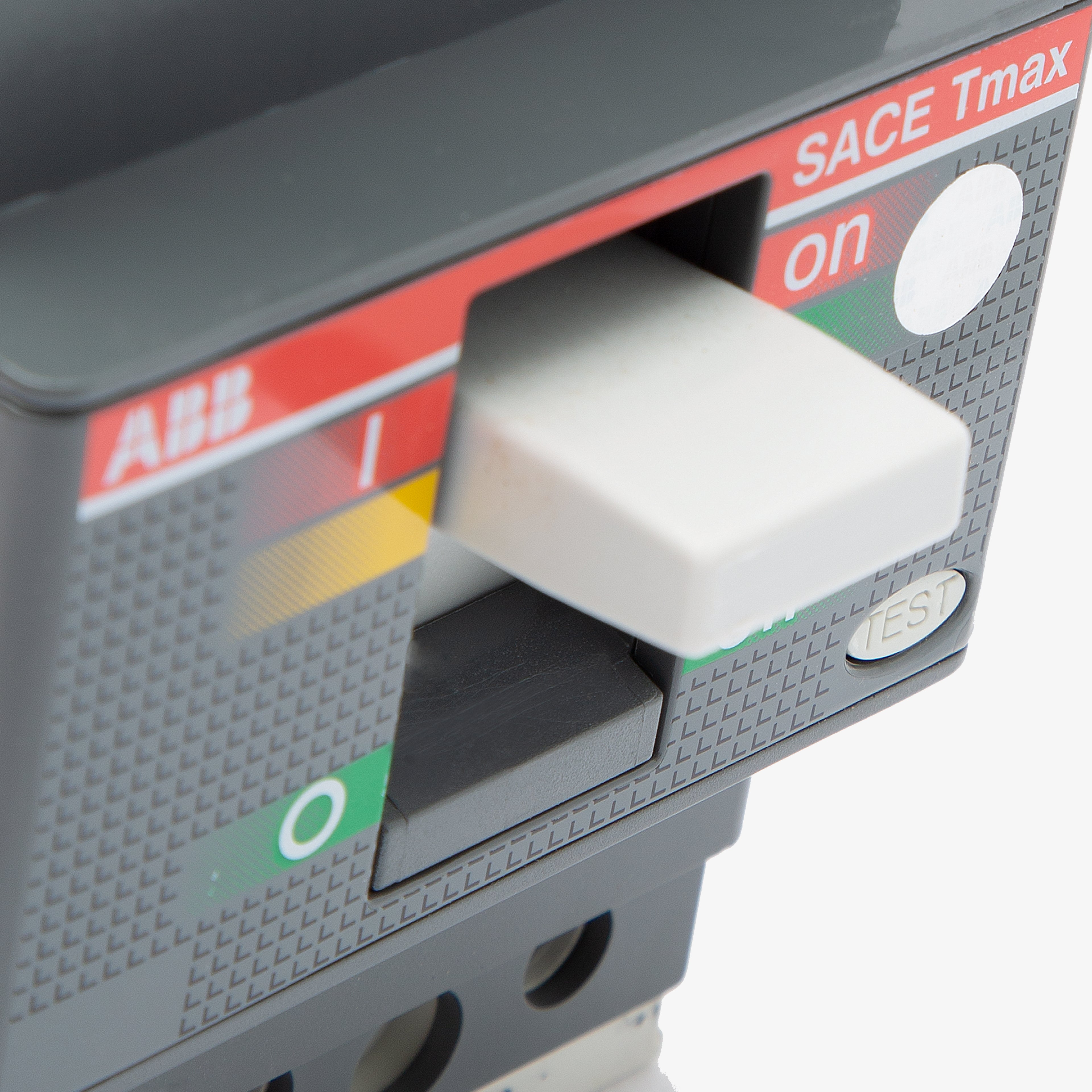

ABB T1N080TL Molded Case Circuit Breaker
- 80A
- 3 Pole
- Panel Mount
Quantity
ABB T1N080TL - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for commercial power distribution, the ABB T1N080TL is a 3-pole, 80A molded case circuit breaker from the legacy SACE Tmax T1 family. It features fixed thermal-magnetic trip units for consistent LI protection. This panel-mount MCCB integrates into ABB Spectra, ReliaGear panels, and Tmax enclosures. As a legacy component, it is replaced by the XT1NU3080AAA000XXX, which requires a retrofit kit for older installations. Rated 22kAIC at 480VAC, it is HACR rated and reverse feed capable.Specifications

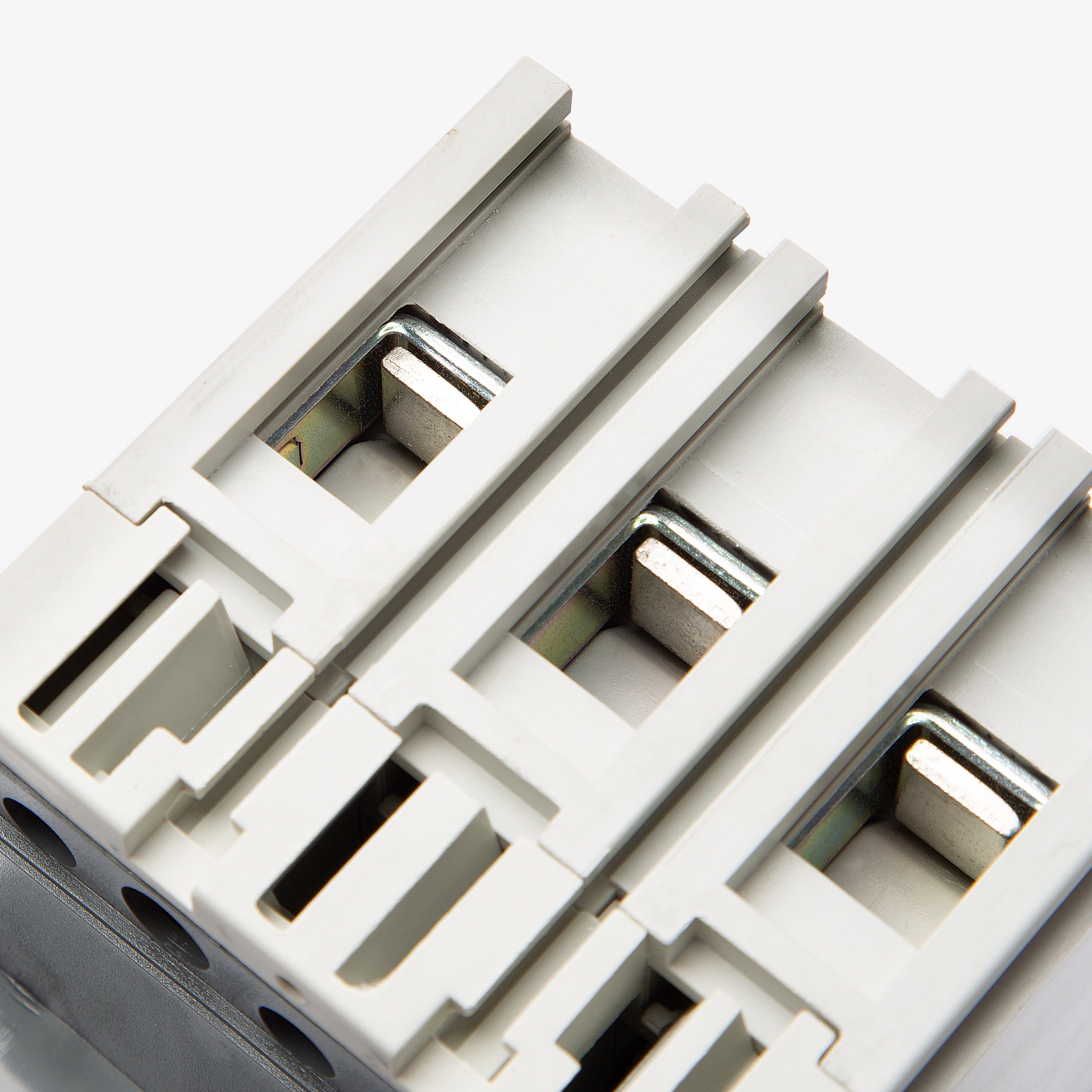

| Brand | ABB |
|---|---|
| Series | T1N |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 50kA @ 240VAC, 22kA @ 480VAC, 10kA @ 600Y/347VAC, 25kA @ 250VDC, 25kA @ 500VDC |
| Frame Type | T1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | ABB Spectra Panelboards, ABB ReliaGear Panelboards, ABB Tmax Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, DIN Rail Adapter, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Double Insulation, Positive Operation |
Product FAQs
5 answersWhich panelboards and enclosures are compatible with the T1N080TL?
This breaker is designed for use in ABB Spectra panelboards, ABB ReliaGear panelboards, and ABB Tmax enclosures.
What type of wire is approved for the terminals on this breaker?
The factory lugs accept copper (Cu) wire only, ranging from 14 AWG to 1/0 AWG. Do not use aluminum wiring with these specific terminals.
Can the trip settings on the T1N080TL be adjusted in the field?
No. This unit features a thermal magnetic trip unit with fixed thermal and fixed magnetic settings. It does not offer field adjustability for the long-time or instantaneous trip functions.
Is this breaker suitable for direct current systems?
Yes, it is rated for DC applications up to 500VDC, providing a 25kA interrupting capacity at both 250VDC and 500VDC.
Is the T1N080TL part of the newer Tmax XT series?
No, this breaker belongs to the legacy SACE Tmax T1 frame family. If you are upgrading to the newer Tmax XT line, you will need the corresponding XT1 equivalent and appropriate mounting hardware, as the physical dimensions and accessories differ.
