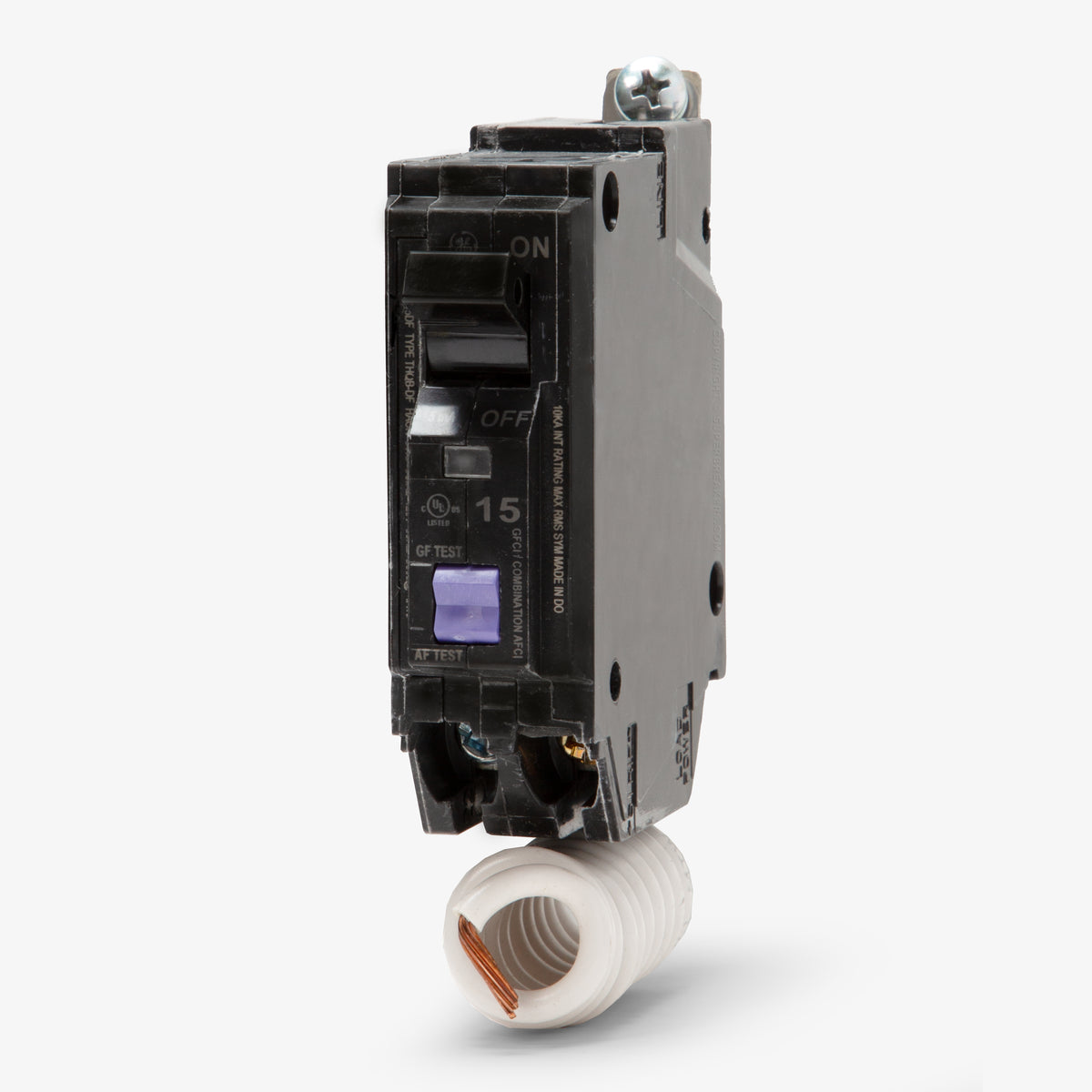

ABB THQB1115DF Dual Function Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Quantity
ABB THQB1115DF - 15A Dual Function Miniature Circuit Breaker
New
Quantity
Description

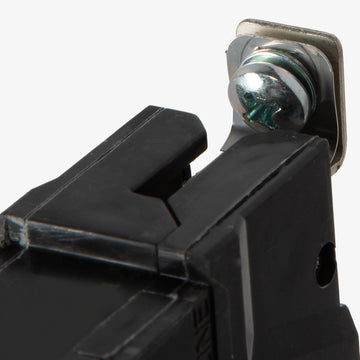

Rated for 10kAIC at 120V, this 15A dual function breaker provides both arc-fault and ground-fault protection to meet NEC requirements. The bolt-on design ensures a secure connection for residential and commercial applications. It mounts into ABB and GE AQ lighting panels, as well as ReliaGear panelboards. The unit accommodates 14-8 AWG copper or 12-8 AWG aluminum wiring via standard box lugs. Equipped with thermal-magnetic trip technology, it features a self-test function and SWD rating.Specifications
| Brand | ABB |
|---|---|
| Series | THQB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | ABB/GE AQ Lighting Panels, ReliaGear Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Self-Test Feature |
| Standards | HACR, SWD, UL 1699, UL 489, UL 943 |
| Approval | cULus, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Self-Test |
Product FAQs
6 answersWhich panelboards are compatible with the THQB1115DF breaker?
This bolt-on breaker is designed for use in ABB and GE AQ Lighting Panels, as well as ReliaGear Panelboards. It is not compatible with standard residential plug-on load centers.
Is the ABB THQB1115DF the same as the GE THQB1115DF?
Yes. ABB acquired GE Industrial Solutions, and the THQB1115DF is the exact same Q-Line breaker previously branded under General Electric. They are fully interchangeable.
What type of protection does this dual function breaker provide?
The THQB1115DF provides both Arc Fault Circuit Interrupter (AFCI) and Ground Fault Circuit Interrupter (GFCI) protection. This meets National Electrical Code (NEC) requirements for circuits needing both types of hazard mitigation.
How is the neutral connection wired on the THQB1115DF?

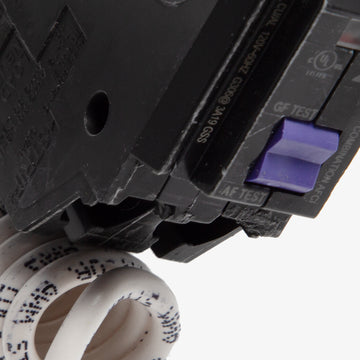

This breaker features a pigtail neutral. The coiled white pigtail wire must be connected directly to the panel neutral bus bar to ensure the AFCI and GFCI sensing circuitry functions correctly.
Can I use the THQB1115DF in a GE PowerMark Gold load center?
No. PowerMark Gold load centers require plug-on THQL series breakers. The THQB1115DF is a bolt-on breaker intended for commercial panelboards.
What wire sizes are accepted by the THQB1115DF box lugs?
The box lugs accept 14 to 8 AWG copper wire, or 12 to 8 AWG aluminum wire. Ensure all connections are properly torqued to the specifications printed on the side of the breaker.
