ABB / General Electric FBH16TE015RV - 15A 1 Pole Molded Case Circuit Breaker

New

$752.38 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

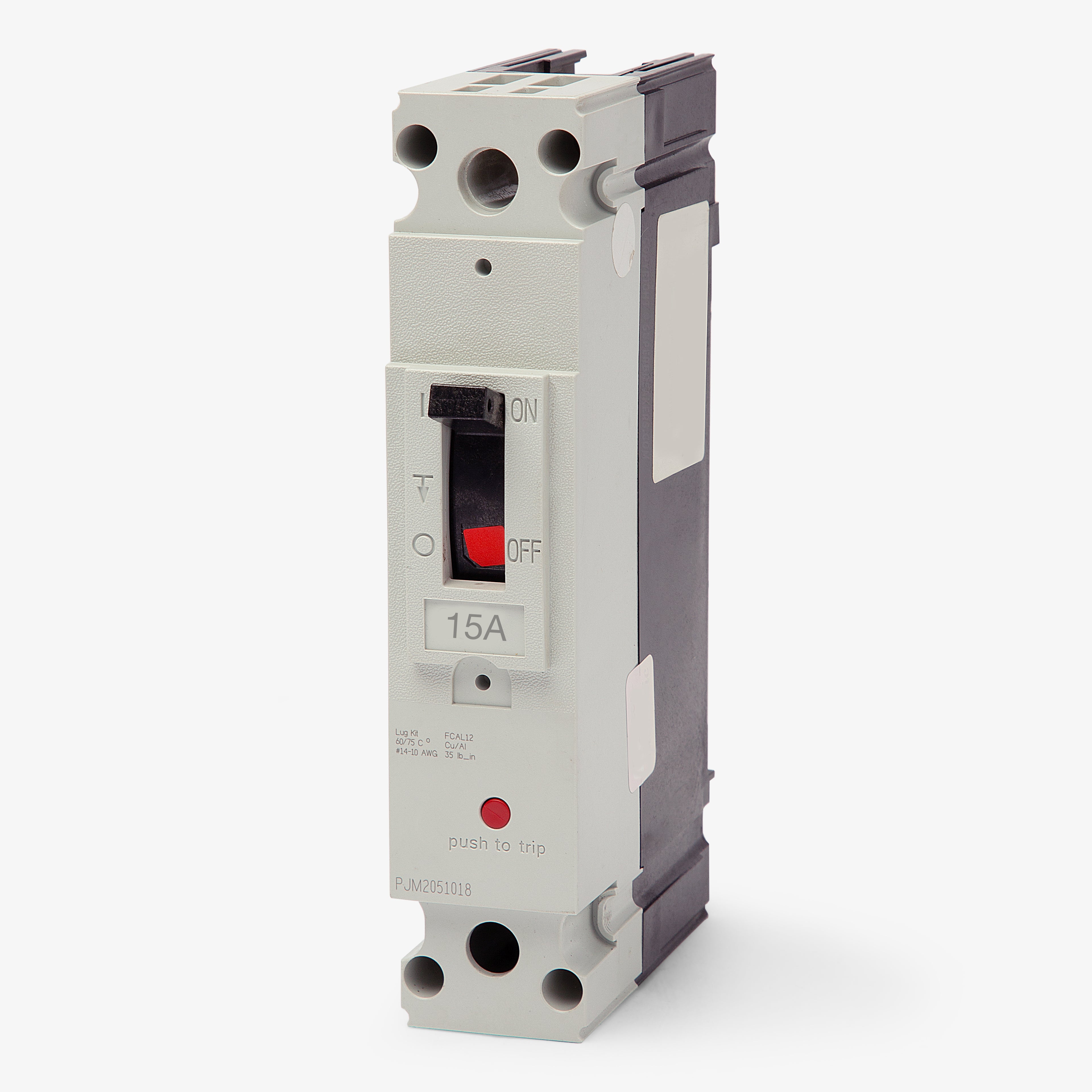

Engineered for high-performance commercial and industrial applications, the GE FBH16TE015RV is a 15A, single-pole molded case circuit breaker from the Record Plus family. It features a robust double-break rotary contact structure that provides exceptional current limitation. Rated for 100 kAIC at 277VAC, it handles demanding electrical environments with ease. This bolt-on MCCB installs into GE Type AD panelboards and is HACR, HID, and Naval rated. The series is transitioning to ABB Tmax XT.

Specifications

Brand ABB / General Electric
Series FBH
Amperage 15A
Voltage 240VAC, 277VAC, 347VAC
Poles 1
Phase 1
AIC Rating 100kA @ 240VAC, 100kA @ 277VAC, 35kA @ 347VAC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With GE Type AD Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-4 AWG
Max Wire 4 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm
Accessories Load Side Lugs Included, Line Side Panel Connectors
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CE, CSA, HACR, HID, UL, USCG
Temp Rating 40C
Construction Features Current Limiting, HACR Rated, HID Rated, SWD Rated, Naval Rated, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure
