ABB / General Electric FBV26TE070RV Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
ABB / General Electric
FBV26TE070RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBV26TE070RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

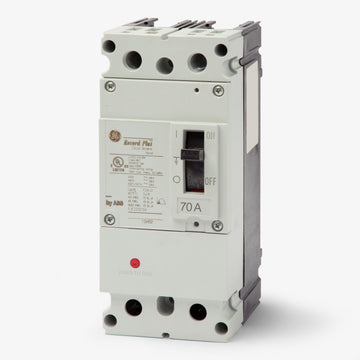

ABB / General Electric FBV26TE070RV - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBV26TE060RV
60A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE090RV
90A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE050RV
50A 2 Pole Molded Case Circuit Breaker
Description
A heavy-duty solution for commercial facilities, this 70A, 2-pole MCCB is part of the GE Record Plus family. It provides reliable long-time and instantaneous protection. The bolt-on breaker mounts into GE A-Series AD panelboards. It features a non-interchangeable trip unit and accepts 4-1/0 AWG wiring, complete with load lugs and line connections. With a double-break rotary contact structure, it is rated 65kAIC at 240V, carries HACR and Naval ratings, and is reverse feed capable.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBV26TE070RV |
| Series | FBV |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series AD Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Connections for AD Panels |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Reverse Feed, Double-Break Rotary Contact Structure, Non-Interchangeable Trip |
Product FAQs
8 answersWhich panelboards are compatible with the FBV26TE070RV breaker?
This bolt-on breaker is designed specifically for installation in General Electric A-Series AD panelboards.
What does the "RV" suffix mean in the FBV26TE070RV catalog number?
The "RV" suffix indicates that the breaker includes load lugs and specialized line connections designed exclusively for mounting in GE A-Series AD panels.
What wire sizes are accepted by the terminals on this breaker?
The included load lugs accept 4 AWG to 1/0 AWG copper or aluminum conductors.
Is the trip unit on the FBV26TE070RV adjustable?
No, this breaker features a non-interchangeable, fixed thermal and fixed magnetic trip unit providing long-time and instantaneous (LI) protection.
Is the FBV26TE070RV suitable for reverse-feed applications?
Yes, this breaker is reverse-feed capable, allowing it to be wired with the supply power connected to either the top or bottom terminals without affecting its protective functions.
Does this breaker carry an HACR rating?
Yes, the FBV26TE070RV is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Can I add field-installable accessories to this breaker?
Yes, the Record Plus FB frame supports common field-installable internal accessories, including auxiliary switches, shunt trips, undervoltage releases, and bell alarms.
What frame size does the FBV26TE070RV belong to?
This breaker is part of the GE Record Plus FB 100-amp frame class, though this specific unit is factory-calibrated for a maximum continuous load of 70 amps.
