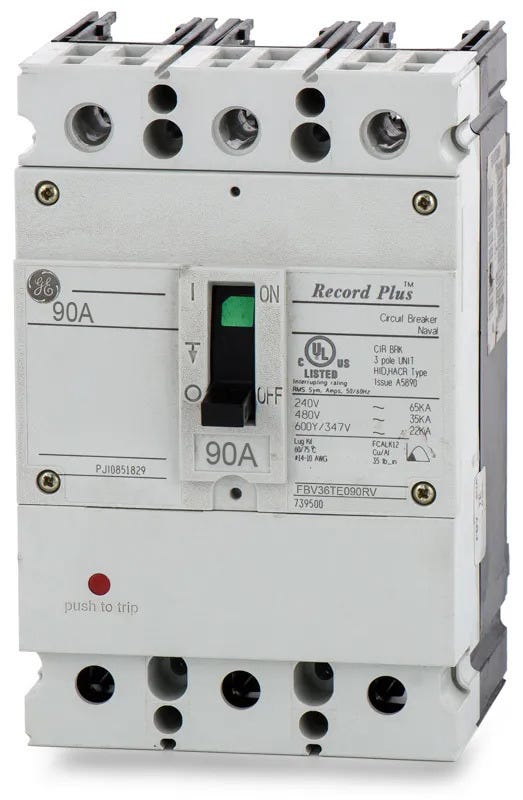

ABB / General Electric FBV36TE090RV Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
ABB / General Electric
FBV36TE090RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBV36TE090RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBV36TE090RV - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBV36TE080RV
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV36TE070RV
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV36TE060RV
60A 3 Pole Molded Case Circuit Breaker
Description
Rated 65kAIC at 240VAC, this 90A molded case circuit breaker handles heavy-duty commercial loads. The GE FBV36TE090RV belongs to the Record Plus series, providing reliable thermal-magnetic protection. Designed with a bolt-on configuration, this breaker installs into GE A-Series AD panelboards. Line side panel connectors and load side lugs are included. With a 35kAIC rating at 480VAC, this current-limiting device is HACR rated, Naval rated, and supports reverse feed operations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBV36TE090RV |
| Series | FBV |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series AD Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Naval Rated |
Product FAQs
6 answersWhat panelboards are compatible with the FBV36TE090RV circuit breaker?
This bolt-on circuit breaker is specifically designed for installation in GE A-Series AD panelboards. It is not compatible with standard residential load centers.
What wire sizes are accepted by the lugs on the FBV36TE090RV?
The included load-side lugs accommodate 4 AWG to 1/0 AWG copper (Cu) or aluminum (Al) conductors. Ensure proper torque specifications are followed during installation.
How does the trip unit operate on the FBV36TE090RV?
It features a fixed thermal-magnetic trip unit that provides both long-time (thermal) and instantaneous (magnetic) protection for 3-phase circuits. The trip settings are fixed and cannot be adjusted in the field.
Will my FBV36TE090RV breaker be branded as ABB or General Electric?
Because ABB acquired GE Industrial Solutions, this Record Plus FB-frame breaker may arrive with either ABB or GE branding. The physical dimensions, specifications, and panel compatibility are identical regardless of the label.
Can the FBV36TE090RV be installed in panelboards from other manufacturers?
No. To maintain UL listings and comply with NEC requirements, this breaker must only be installed in approved GE or ABB enclosures, such as A-Series AD panelboards.
What frame size is the FBV36TE090RV?
It is part of the GE Record Plus family and uses the compact FB frame, often referred to as the FB100 frame, which is designed for commercial and industrial applications.
