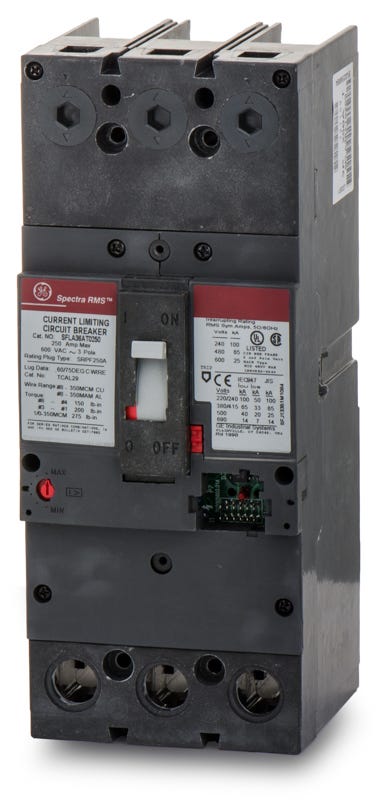

ABB / General Electric SFLA36AT0250 Molded Case Circuit Breaker Frame Only
- 250A
- 3 Pole
- Bolt-On
Quantity
ABB / General Electric SFLA36AT0250 - 250A 3 Pole Molded Case Circuit Breaker Frame Only
New
Quantity
Quantity
ABB / General Electric SFLA36AT0250 - 250A 3 Pole Molded Case Circuit Breaker Frame Only
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SFLA36AT0250 |
| Series | SFLA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | SFLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, GE A-Series Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kit (TCAL29), Rating Plugs |
|---|---|
| Accessories | Rating Plug (SRPF250A250), Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, True RMS Sensing, Reverse Feed, Interchangeable Rating Plug |
Quantity
ABB / General Electric SFLA36AT0250 - 250A 3 Pole Molded Case Circuit Breaker Frame Only
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SFLA36AT0250-R |
| Series | SFLA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | SFLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, GE A-Series Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kit (TCAL29), Rating Plugs |
|---|---|
| Accessories | Rating Plug (SRPF250A250), Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, True RMS Sensing, Reverse Feed, Interchangeable Rating Plug |
Description
Engineered for commercial and industrial power distribution, this 250-ampere Spectra RMS frame utilizes microprocessor-based sensing for accurate LSI protection. The unit requires a compatible SRPF250 rating plug to establish its specific trip point. Designed for bolt-on installation, it integrates seamlessly into GE A-Series panelboards and switchboards. Note that this legacy model is officially replaced by the ABB Tmax XT4 series, which requires a retrofit kit for proper fitment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SFLA36AT0250 |
| Series | SFLA |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | SFLA |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, GE A-Series Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kit (TCAL29), Rating Plugs |
|---|---|
| Accessories | Rating Plug (SRPF250A250), Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, True RMS Sensing, Reverse Feed, Interchangeable Rating Plug |
Product FAQs
6 answersIs a rating plug included with the SFLA36AT0250?
No, this unit is supplied as the breaker frame only. A separate GE Spectra SRPF series rating plug must be installed to establish the continuous ampere rating prior to operation.
Which rating plugs are compatible with this SF250 frame breaker?
You must use GE SRPF series interchangeable rating plugs designed for the SF250 frame. These allow you to set the continuous current rating of the SFLA36AT0250 anywhere below or equal to its 250A maximum sensor capacity.
What does the electronic LSI trip unit on this breaker allow the user to adjust?
The solid-state RMS sensing trip unit features an adjustable instantaneous pickup with tracking short-time protection. The long-time continuous current is fixed based on the specific rating plug you install.
Can the SFLA36AT0250 be used in reverse feed configurations?
Yes, GE Spectra RMS circuit breakers utilizing front-mounted interchangeable rating plugs are UL Listed for reverse feed applications.
What is the difference between the GE SFLA36AT0250 and SFHA36AT0250?
Both utilize the same 250A SF frame footprint and electronic trip units, but they carry different short-circuit interrupting capacities. The SFLA model provides 65kAIC at 480VAC, whereas the SFHA provides 35kAIC at 480VAC.
Can I change the ampere rating of the SFLA36AT0250 in the field?
Yes, because it utilizes an interchangeable rating plug system, you can easily change the breaker's continuous amp rating by swapping the front-mounted SRPF plug without having to replace the entire SF250 frame.
