ABB / General Electric SGDA32AN0400 Molded Case Switch
Quantity
Core Specs
See full specs

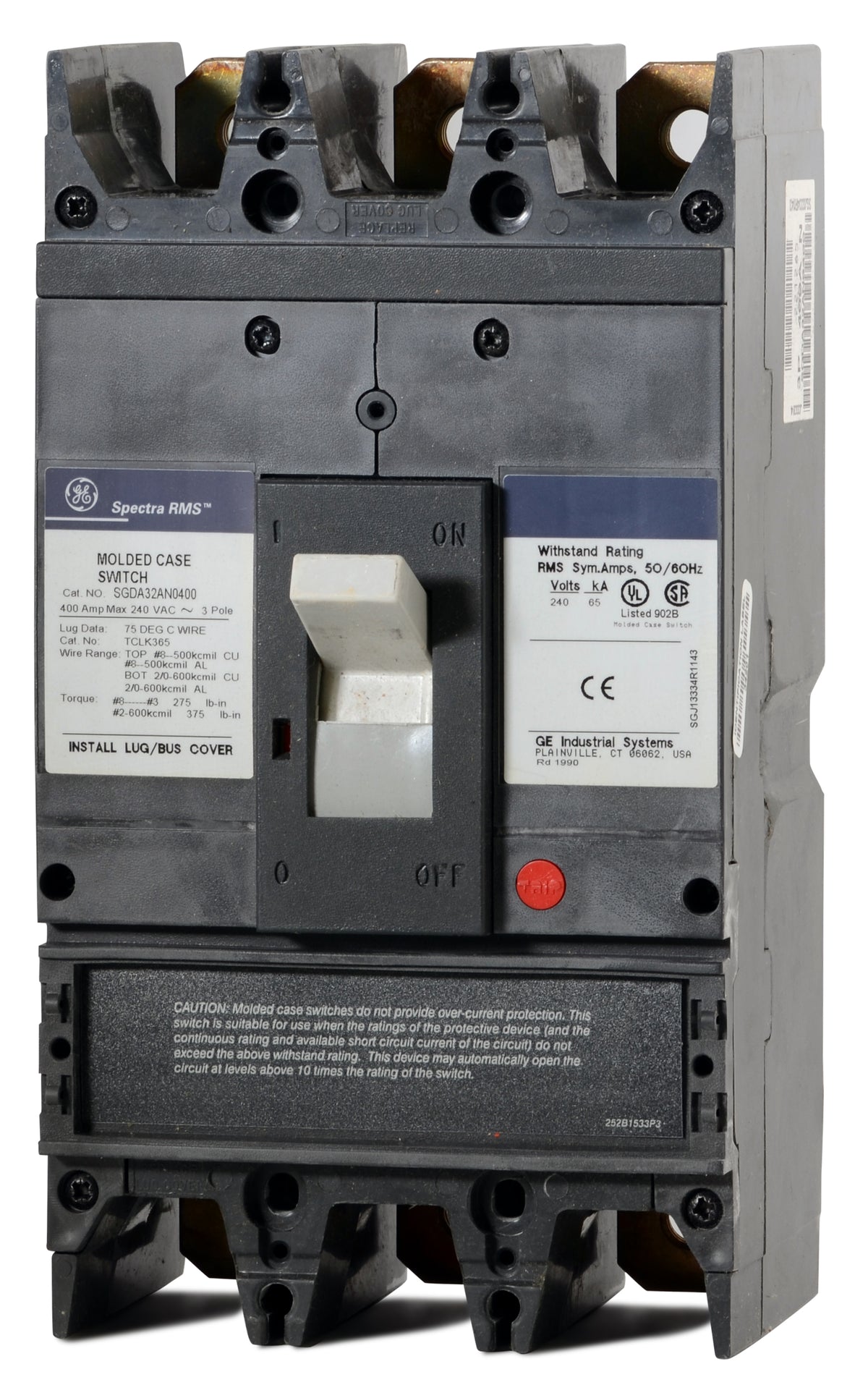

ABB / General Electric SGDA32AN0400 - 400A 3 Pole Molded Case Switch
New
Quantity
Description
Part of the Spectra RMS family, the GE SGDA32AN0400 is a 3-pole, 400A molded case switch rated for 240VAC. It serves as a non-automatic disconnect for industrial systems. This bolt-on unit installs into GE Spectra Series panelboards. For legacy upgrades, it is replaced by the XT5NU340DFFF000XXX using a Spectra retrofit kit. Featuring magnetic-only trip technology, this SG frame switch includes high-set instantaneous self-protection against severe short circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGDA32AN0400 |
| Series | SGDA |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | UNVERIFIED |
| Terminal Type | Lugs |
|---|---|
| For Use With | Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Lug Kits |
|---|---|
| Accessories | No Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic, Molded Case Switch |
