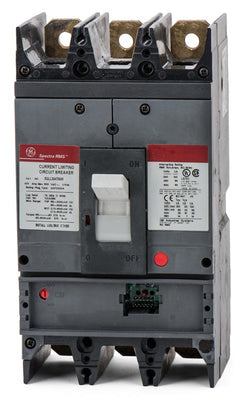

ABB / General ElectricSGLL36AT0600
ABB / General Electric SGHB36BA0600 Molded Case Circuit Breaker
- 600A
- 3 Pole
- Bolt-On
ABB / General Electric
SGHB36BA0600
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SGHB36BA0600
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SGHB36BA0600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSGLC3606L5XX
600A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGHA36AT0600
600A 3 Pole Molded Case Circuit Breaker Frame Only
ABB / General ElectricSGLB36BB0600
600A 3 Pole Molded Case Circuit Breaker
Description
Delivering 65kAIC interrupting capacity at 240V, this 600A electronic trip breaker utilizes the MicroVersaTrip Plus unit for highly accurate LI protection. The bolt-on MCCB integrates seamlessly into GE Spectra Series panelboards and motor control centers. Built with true RMS sensing and visual trip indicators, it offers superior performance over standard thermal-magnetic options. For modern upgrades, this specific SG-frame model transitions to the ABB Tmax XT5 platform.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGHB36BA0600 |
| Series | SGHB |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Lug Kits, Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Rating Plugs |
|---|---|
| Accessories | MicroVersaTrip Plus Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | True RMS Sensing, Interchangeable Trip Unit, Reverse Feed, Visual Trip Indicator |
Product FAQs
5 answersDoes the SGHB36BA0600 come with terminal lugs?
No, this breaker is supplied without terminals. You must install a compatible 3-pole lug kit, such as the TCLK365 for copper or aluminum wire, which is sold separately.
Is a rating plug required to operate this SG600 frame breaker?
Yes, all GE Spectra RMS circuit breakers require a front-mounted, interchangeable rating plug to establish the continuous ampere rating. The breaker will not function properly without the correct rating plug installed.
What does the LI trip function code indicate on this model?
The LI designation means the electronic trip unit provides adjustable Long-Time (overload) and Instantaneous (short-circuit) protection. The continuous current is determined by your selected rating plug, while the instantaneous pickup is adjusted directly on the breaker.
Can the SGHB36BA0600 be reverse fed?
Yes, Spectra RMS circuit breakers are suitable for reverse feed applications. They have no line or load markings, allowing incoming power to be connected to either the upper or lower terminals.
Is the ABB SGHB36BA0600 identical to the GE SGHB36BA0600?
Yes. Following ABB's acquisition of GE Industrial Solutions, this Spectra RMS breaker is manufactured under the ABB brand but retains the exact same form, fit, and function as the legacy General Electric model.
