ABB / General Electric SGLA26AT0600 Molded Case Circuit Breaker
- 600A
- 2 Pole
- Bolt-On
Quantity

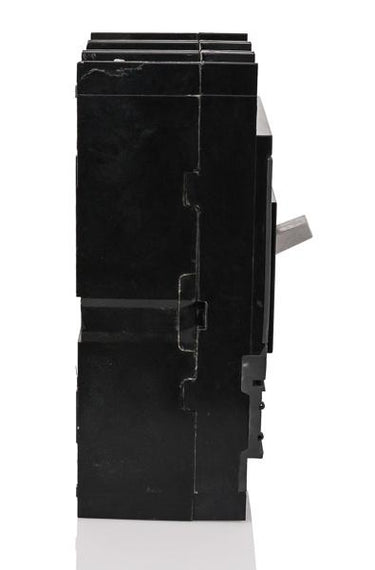

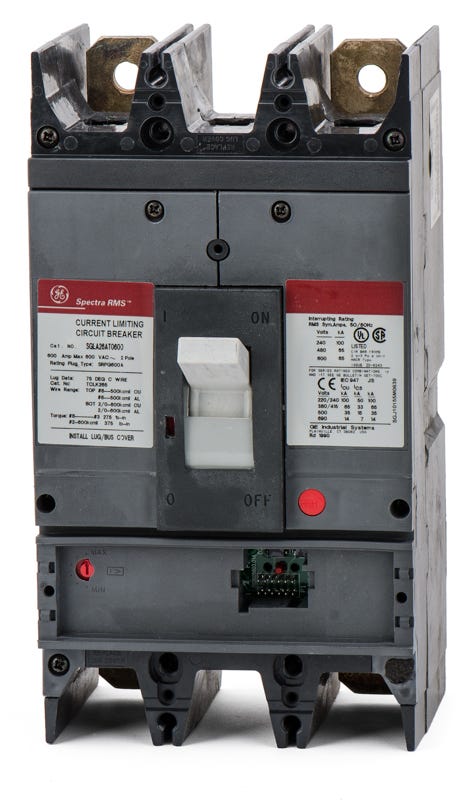

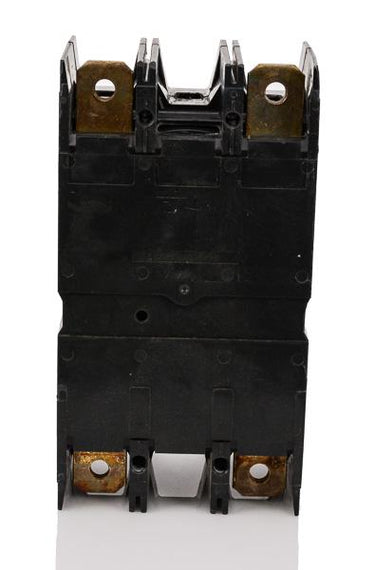

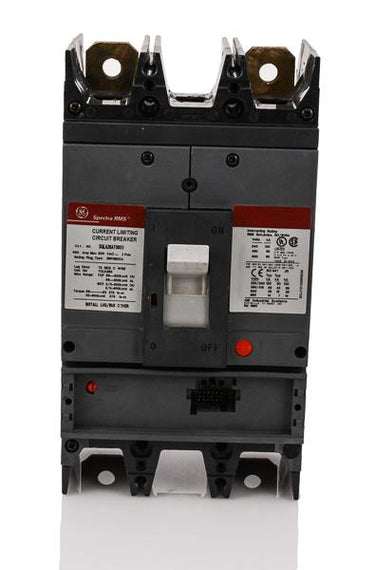

ABB / General Electric SGLA26AT0600 - 600A 2 Pole Molded Case Circuit Breaker
New
Quantity
Description
Delivering robust overcurrent protection, the GE SGLA26AT0600 is a 2-pole, 600A molded case circuit breaker. Designed for high-capacity systems, this bolt-on MCCB integrates seamlessly into GE Spectra Series panelboards and switchboards. It utilizes a solid-state electronic trip unit with adjustable long-time, short-time, and instantaneous (LSI) settings for precise coordination. Rated at 65kAIC at 480VAC, it can be upgraded to the ABB XT5H series using an available Spectra retrofit kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLA26AT0600 |
| Series | SGLA |
| Amperage | 600A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 8 AWG - 600 kcmil (Cu/Al) or (2) 2/0 AWG - 500 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Rating Plugs, Lug Kits, Motor Operator |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, True RMS Sensing, Interchangeable Trip Unit, Reverse Feed, HACR Rated |
Product FAQs
6 answersWhat rating plug is required for the SGLA26AT0600 circuit breaker?
This SG frame breaker requires an SRPG600A series rating plug, such as the SRPG600A600 for a 600A rating. The rating plug is necessary to establish the breaker's continuous current rating.
Which lug kit is compatible with this 2-pole 600A breaker?
The TCLK265 lug kit is designed specifically for 2-pole GE SG frame circuit breakers. It accepts either one 8 AWG to 600 kcmil or two 2/0 AWG to 500 kcmil copper or aluminum conductors per phase.
What does the LSI trip function on the SGLA26AT0600 allow me to adjust?
The solid-state electronic trip unit features LSI functions, allowing you to adjust the Long-Time (overload), Short-Time (short circuit delay), and Instantaneous (immediate short circuit) pickup settings for precise system coordination.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, the SGLA26AT0600 may be branded as either ABB or GE, but it is the exact same Spectra RMS SG frame breaker and is fully interchangeable.
What type of equipment is the SGLA26AT0600 designed to be installed in?
This bolt-on molded case circuit breaker is designed for use in GE and ABB Spectra Series panelboards, switchboards, and motor control centers.
Is the SGLA26AT0600 suitable for reverse feed applications?
Yes, Spectra RMS SG frame circuit breakers are suitable for reverse feed. They have no line or load markings, allowing incoming power to be connected to either the upper or lower terminals.
