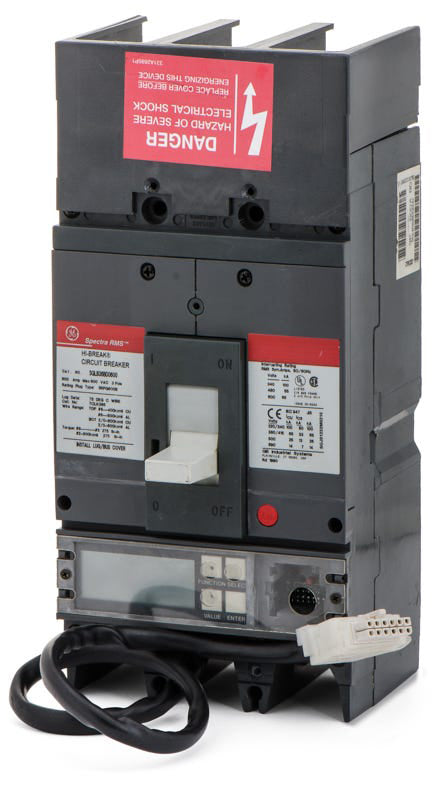

ABB / General Electric SGLB36BA0600 Molded Case Circuit Breaker
- 600A
- 3 Pole
- Bolt-On
ABB / General Electric
SGLB36BA0600
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SGLB36BA0600
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SGLB36BA0600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSGLB36BD0600
600A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLB36BA0400
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLB36BB0400
400A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial distribution, this 600A SG-frame breaker delivers reliable electronic trip protection. It integrates seamlessly with GE Spectra Series switchboards and features interchangeable rating plugs for maximum flexibility. Facilities upgrading from this model can transition to the ABB Tmax XT5 using an approved retrofit hardware kit. Delivering 65kAIC at 480VAC, the microprocessor-based unit ensures precise coordination over standard thermal-magnetic options.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLB36BA0600 |
| Series | SGLB |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Switchboards, Power Panelboards |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Reverse Feed, True RMS Sensing, Visual Trip Indicator, Interchangeable Trip Unit |
Product FAQs
6 answersWhat is the modern replacement for the legacy SGLB36BA0600?
The GE Spectra RMS SGLB36BA0600 is a legacy SG frame breaker. For modernization projects, it can be transitioned to the ABB Tmax XT5 series using an approved retrofit hardware kit.
Which lug kit is compatible with this 3-pole SG frame breaker?
The TCLK365 lug terminal kit is designed specifically for 3-pole GE Spectra SG frame circuit breakers. It supports copper and aluminum wire connections for 600A applications.
Does the SGLB36BA0600 require a rating plug to operate?
Yes, GE Spectra RMS circuit breakers use interchangeable rating plugs to establish their continuous ampere rating. To operate this SG frame breaker at its full 600A capacity, you must install an SRPG600A rating plug.
What does the LIT trip function code indicate on this breaker?
LIT stands for Long-Time, Instantaneous, and Targets. This solid-state electronic trip unit allows for adjustable long-time and instantaneous protection, while the built-in targets provide visual indicators to help identify the specific cause of a fault after a trip.
Is this GE Spectra breaker suitable for reverse feed applications?
Yes, GE Spectra RMS circuit breakers, including the SG frame, are designed without line and load markings, making them fully suitable for reverse feed installations.
What equipment is the SGLB36BA0600 designed to mount in?
This bolt-on molded case circuit breaker is specifically designed for installation within GE Spectra Series switchboards and power panelboards.
