ABB / General Electric SGLB36BC0600 Molded Case Circuit Breaker
- 600A
- 3 Pole
- Bolt-On
ABB / General Electric
SGLB36BC0600
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SGLB36BC0600
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

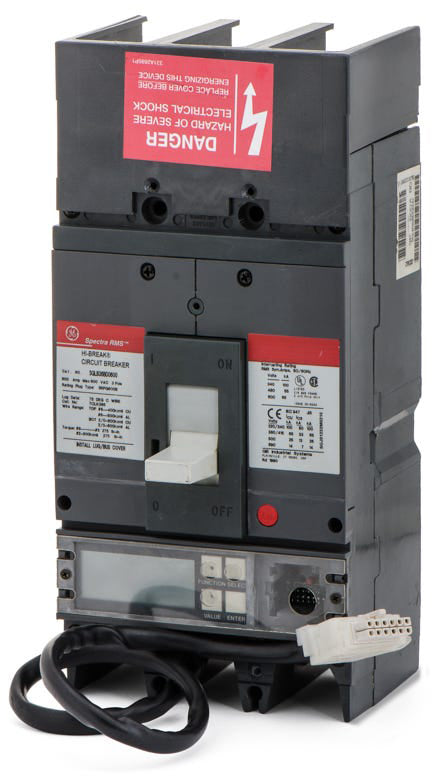

ABB / General Electric SGLB36BC0600 - 600A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSGLB36BD0600
600A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLB36BA0400
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLB36BB0400
400A 3 Pole Molded Case Circuit Breaker
Description
Delivering true RMS sensing, the GE SGLB36BC0600 is a 600A, 3-pole molded case circuit breaker. This SG-frame unit features an electronic trip system that provides adjustable LIG (Long-Time, Instantaneous, Ground Fault) protection. Engineered for bolt-on installation, it is compatible with GE Spectra Series power panelboards and switchboards. When panel upgrades are required, this unit is replaced by the ABB Tmax XT5 series using a retrofit kit. It offers a 65kAIC rating at 480V.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLB36BC0600 |
| Series | SGLB |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 300-600A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Switchboards, Power Panelboards |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Reverse Feed, True RMS Sensing, Visual Trip Indicator, Interchangeable Trip Unit |
Product FAQs
8 answersWhat panelboards and switchboards accept the SGLB36BC0600?
This SG-frame circuit breaker is designed for bolt-on installation in GE Spectra Series switchboards and power panelboards.
How is the continuous amperage rating configured on this breaker?
Spectra RMS SG-frame breakers utilize field-installable, front-mounted rating plugs to establish or modify the continuous ampere rating. A compatible rating plug must be installed prior to operation.
Are terminal lugs included with the breaker?
Terminal lug kits are required for line and load connections but are typically sold separately. You will need two lug kits to complete the installation on both ends.
Can the SGLB36BC0600 be reverse fed?
Yes, the GE Spectra RMS SG-frame design allows for reverse feeding.
What does the LIGT trip function code indicate?
LIGT signifies that the solid-state electronic trip unit provides adjustable Long-Time, Instantaneous, and Ground-Fault protection. The T indicates it includes trip targets for diagnostic fault indication.
Will this breaker arrive with ABB or GE branding?
Following ABB's acquisition of GE Industrial Solutions, this breaker may feature either ABB or GE branding. The form, fit, function, and specifications remain identical regardless of the label.
What is the recommended replacement series for panel upgrades?
If you are upgrading your equipment, the legacy GE Spectra Series is typically replaced by the ABB Tmax XT5 series, which can be integrated using a dedicated retrofit kit.
Does this breaker provide true RMS sensing?
Yes, the electronic trip unit uses digital sampling to determine the true RMS value of sinusoidal and non-sinusoidal currents. This prevents nuisance tripping from harmonic loads such as variable frequency drives and solid-state power supplies.
