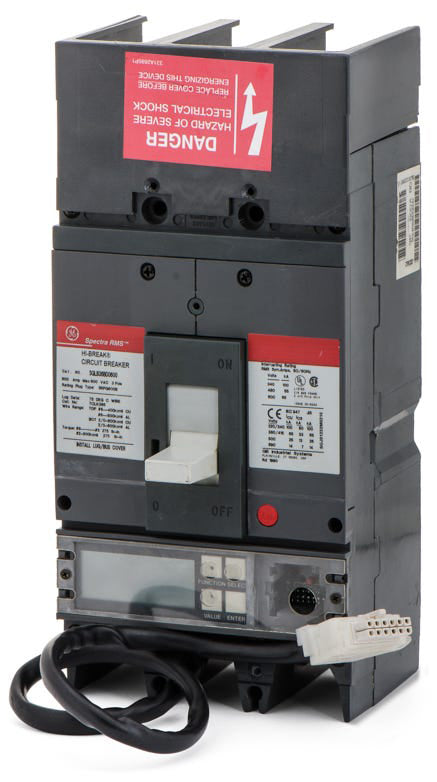

ABB / General Electric SGLB36BD0400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Bolt-On
ABB / General Electric
SGLB36BD0400
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SGLB36BD0400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SGLB36BD0400 - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSGLB36BA0400
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLB36BB0600
600A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSGLB36BD0600
600A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 400A molded case circuit breaker provides robust electronic trip protection. As a core component of the GE Spectra RMS family, it utilizes true RMS sensing for accurate current measurement. The bolt-on device installs into GE Spectra Series switchboards and power panelboards. When modernizing older infrastructure, this frame is replaced by the ABB Tmax XT5 using a dedicated retrofit kit. It delivers 65kAIC at 480VAC with LSIG functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SGLB36BD0400 |
| Series | SGLB |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 200-400A |
|---|
| Frame Type | SGLB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Switchboards, Power Panelboards |
| Wire Gauge | (2) 2/0 AWG-500 kcmil (Al) or (2) 2/0 AWG-400 kcmil (Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Lug Kits, Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rating Plugs |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, True RMS Sensing, Reverse Feed, Visual Trip Indicator, Interchangeable Rating Plug, Ground Fault Protection |
Product FAQs
8 answersWhich panelboards are compatible with the SGLB36BD0400 breaker?
This SG frame breaker is designed specifically for use in GE Spectra Series switchboards and power panelboards. It requires a bolt-on connection.
What wire sizes do the lugs on the SGLB36BD0400 accept?
The standard lugs accept two 2/0 AWG to 500 kcmil aluminum conductors, or two 2/0 AWG to 400 kcmil copper conductors per phase.
What adjustability does the electronic trip unit provide on this breaker?
The SGLB36BD0400 features an LSIG solid-state trip unit. This allows electricians to adjust the long-time, short-time, instantaneous, and ground-fault pickup and delay settings to coordinate with the specific demands of the electrical system.
What is the purpose of the trip targets on this breaker?
The trip targets are visual indicators on the electronic trip unit that show which specific fault condition (long-time, short-time, instantaneous, or ground-fault) caused the breaker to trip. This aids electricians in rapid troubleshooting after a fault.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, Spectra RMS series breakers like the SGLB36BD0400 may feature either GE or ABB branding depending on the manufacturing date, but they are physically and electrically identical.
Does the SGLB36BD0400 include integrated ground fault protection?
Yes, the G in the LSIG trip function indicates that this breaker includes built-in equipment ground fault protection, which can be adjusted via the electronic trip unit.
Can this breaker be used in a plug-in application?
No, the SGLB36BD0400 is strictly a bolt-on circuit breaker designed for hardwired connections in compatible Spectra Series enclosures.
Is the SGLB36BD0400 interchangeable with other SG frame breakers?
It can replace other 400A SG frame Spectra RMS breakers with similar interrupting ratings, provided the panelboard is configured for a 3-pole, bolt-on installation. Always verify that the required trip functions match your system coordination study before replacing a unit.
