ABB / General Electric SGPB36BB0400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Unit Mount
Quantity

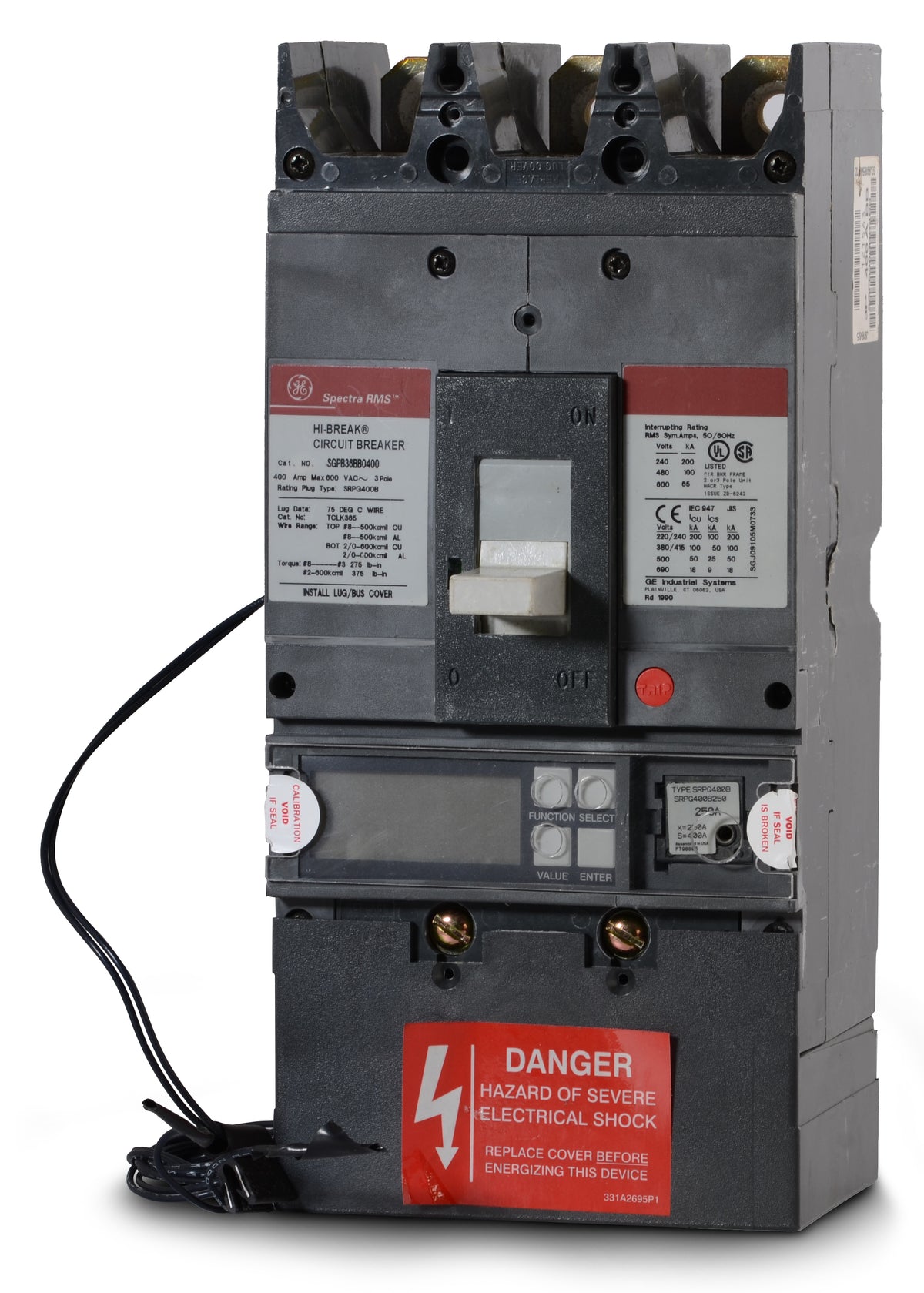

ABB / General Electric SGPB36BB0400 - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Belonging to the Spectra RMS family, this 400A electronic trip breaker provides advanced LSIT protection for commercial and industrial facilities. The unit mount design integrates seamlessly into GE Spectra Series panelboards and switchboards. It utilizes the MicroVersaTrip Plus trip unit for precise system coordination. Featuring a 100kA interrupting capacity at 480VAC, it delivers reliable current-limiting performance and true RMS sensing for complex electrical loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | SGPB |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 200-400A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Spectra Series Panelboards and Switchboards |
| Wire Gauge | (2) 2/0 AWG-500 kcmil (Cu/Al) or (1) 8 AWG-600 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIT |
| Trip Function | Long-Time, Short-Time, Instantaneous, Targets |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs |
|---|---|
| Accessories | MicroVersaTrip Plus Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | -20C to 55C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, True RMS Sensing, Interchangeable Trip Unit, Visual Trip Indicator |
Product FAQs
6 answersWhat equipment is the SGPB36BB0400 designed to be installed in?
This SG frame breaker is designed for use in GE Spectra Series panelboards and switchboards. It utilizes a bolt-on connection for unit mount applications.
What are the accepted wire sizes for the lugs on this 400A breaker?
The terminals accept either one wire ranging from 8 AWG to 600 kcmil or two wires ranging from 2/0 AWG to 500 kcmil. Both copper and aluminum conductors are supported.
What adjustments are available on the electronic trip unit of the SGPB36BB0400?
This breaker features an LSIT solid state trip unit, allowing adjustments for Long-Time, Short-Time, and Instantaneous pickup and delay settings. It also includes trip targets to help identify the cause of a fault.
How does the Spectra RMS trip unit measure current?
The solid state trip system uses digital sampling to determine the true RMS value of both sinusoidal and non-sinusoidal currents. This provides accurate protection even in environments with high harmonic distortion.
Does the SGPB36BB0400 require a rating plug to operate?
Yes, GE Spectra RMS breakers utilize interchangeable rating plugs to establish the continuous current rating. An SRPG series rating plug matching the desired amperage (up to the 400A frame maximum) must be installed in the front of the trip unit.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. The Spectra RMS series, including the SG frame, was originally manufactured by General Electric and is now supported under the ABB brand portfolio.
