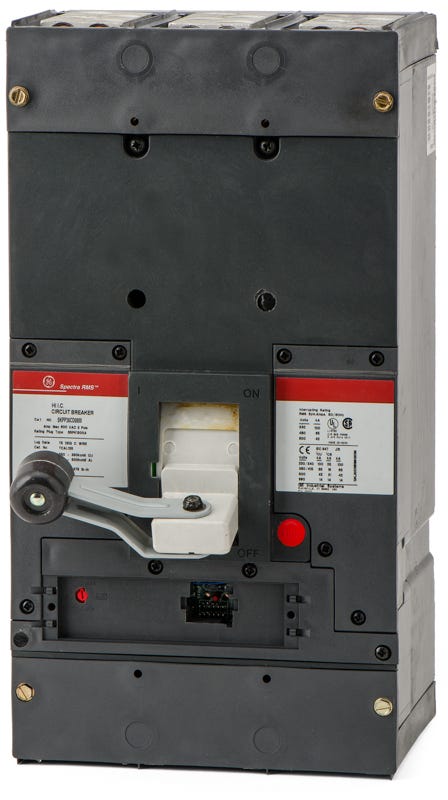

ABB / General Electric SKPP36CD0800 Molded Case Circuit Breaker
- 800A
- 3 Pole
- Bolt-On
Quantity
ABB / General Electric SKPP36CD0800 - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Delivering advanced protection, this 800A, 3-pole MCCB belongs to the GE Spectra RMS series. It handles demanding commercial and industrial environments. This unit installs into GE Spectra Series switchboards, panelboards, and motor control centers. Facilities can replace it with the Tmax XT7 using a retrofit kit. It features a MicroVersaTrip PM electronic trip unit with LSIGT functions, adding ground fault protection. The breaker provides 100kAIC at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKPP36CD0800 |
| Series | SKPP |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIGT |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault, Targets |
| Trip Adjustability | Adjustable |
| Trip Unit Model | MicroVersaTrip PM |
| Available Options | Lug Kits, Rating Plugs, Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | MicroVersaTrip PM Trip Unit (LSIGT) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | 100% Rated, Extra High Interrupting Capacity, Current Limiting, Reverse Feed, True RMS Sensing, Visual Trip Indicator, Interchangeable Trip Unit |
Product FAQs
7 answersWhat equipment is this breaker designed to fit?
This SK-frame breaker installs into GE Spectra Series panelboards, switchboards, and motor control centers.
Is this breaker suitable for reverse-fed applications?
Yes, the SKPP36CD0800 is rated for reverse-fed applications.
What protection functions are included in the LSIGT trip unit?
The MicroVersaTrip PM electronic trip unit provides Long-Time, Short-Time, Instantaneous, and Ground-Fault protection, along with trip targets for diagnostics.
What is the modern replacement for this legacy GE Spectra breaker?
Facilities can replace this SK-frame breaker with an ABB Tmax XT7 using a dedicated retrofit kit.
Is the trip unit on this breaker interchangeable?
Yes, it features an interchangeable MicroVersaTrip PM solid-state electronic trip unit.
Are the trip settings adjustable on this breaker?
Yes, the solid-state MicroVersaTrip PM trip unit features adjustable settings for precise circuit protection coordination.
How do the trip targets function on this breaker?
The integrated trip targets on the MicroVersaTrip PM unit provide visual indicators to help electricians identify the specific type of fault that caused a trip.
