ABB / General Electric TB13060BWE09 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Quantity

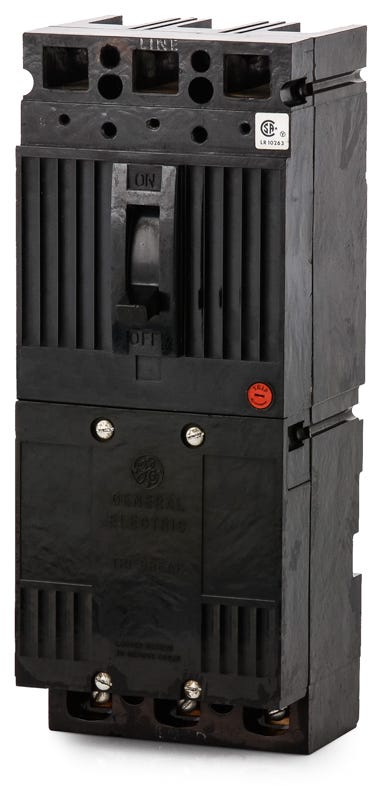

ABB / General Electric TB13060BWE09 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the Tri-Break family, this 60A integrally fused MCCB delivers 200kAIC protection at 480VAC. Built for demanding commercial and industrial environments, the GE TB13060BWE09 provides reliable long-time and instantaneous (LI) trip functions. It installs into GE switchboards and motor control centers, offering robust defense against high-level short circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TB1 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 100kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs, Current Limiter |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Integrally Fused, Non-Interchangeable Trip, HACR Rated |
| Special Features | Current Limiting (Integrally Fused) |
Product FAQs
7 answersWhat types of equipment is the TB13060BWE09 designed to be installed in?
This unit mount breaker is typically installed in GE switchboards and motor control centers. It bolts directly to the backpan or mounting surface rather than plugging into a panelboard bus.
Are the factory lugs on the TB13060BWE09 rated for aluminum conductors?
Yes, the included lugs accept both copper and aluminum wire. The acceptable wire range for this frame is 14 AWG to 1/0 AWG.
How does the current limiting feature of the TB1 series benefit my electrical system?
As a current limiting breaker, it is designed to clear a fault in less than one half cycle. This rapid response significantly reduces the peak let-through current and thermal energy, protecting downstream components from severe short-circuit damage.
Can the TB13060BWE09 be utilized in direct current systems?
Yes, this thermal magnetic breaker is rated for DC applications up to 250VDC, where it provides an interrupting rating of 100kA.
Can I adjust the trip settings on the TB13060BWE09 to coordinate with downstream devices?
No, this specific breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
Why might my TB13060BWE09 arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions. As a result, newer production runs of the TB1 series carry the ABB name. The breaker is an exact drop-in replacement with identical specifications and UL listings regardless of which logo is on the case.
Is the TB13060BWE09 suitable for industrial facilities with high available fault currents?
Yes, it is highly suited for these environments. It provides a 200kAIC interrupting rating at both 240VAC and 480VAC, which meets or exceeds the requirements for most heavy commercial and industrial switchboards.
