ABB / General Electric TB13100AW Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Quantity

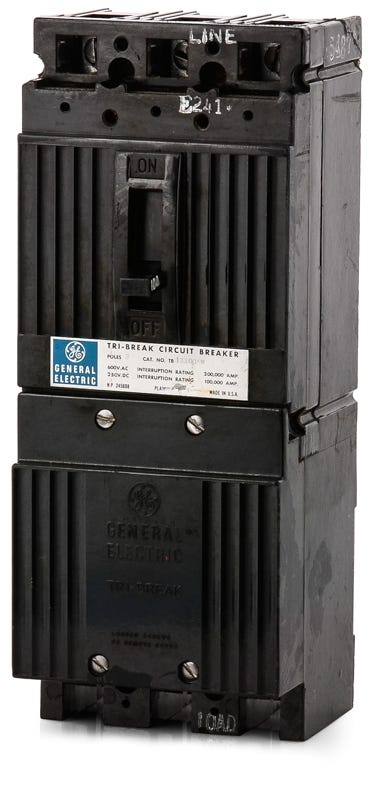

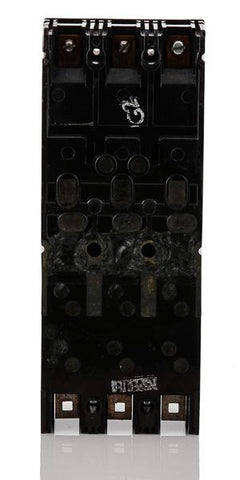

ABB / General Electric TB13100AW - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered for commercial and industrial applications, the GE TB13100AW is a 3-pole, 100A molded case circuit breaker from the Tri-Break family. It provides robust thermal-magnetic protection for heavy-duty electrical distribution systems. This unit-mount MCCB integrates into compatible GE switchboards, motor control centers, and A-Series panelboards. It includes standard line and load lugs. Designed to minimize let-through energy, this current-limiting breaker boasts a 200kAIC rating at 480V.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TB13100AW-R |
| Series | TB1 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC, 100kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers, GE A-Series Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Line and Load Lugs Included, Current Limiters Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, Integrally Fused, Non-Interchangeable Trip |
| Special Features | Current Limiting (Integrally Fused) |
Product FAQs
5 answersWhat makes the TB13100AW a current-limiting breaker?
The TB13100AW is part of the GE Tri-Break series, which utilizes factory-assembled internal current limiters. These limiters restrict peak let-through current during severe faults, enabling the breaker to achieve a 200kA interrupting capacity at 480VAC.
What equipment is the TB13100AW designed to be installed in?
This unit-mount breaker is compatible with GE switchboards, motor control centers, and GE A-Series panelboards. Verify that your specific enclosure is provisioned for TB1 frame current-limiting breakers before installation.
Does the TB13100AW require separate lug kits for installation?
No, the TB13100AW comes factory-assembled with both line and load side lug terminals. These standard lugs accept 14 to 1/0 AWG copper or aluminum conductors.
Is the trip unit on the TB13100AW field-adjustable?
No, this breaker is equipped with a non-interchangeable thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are fixed and cannot be adjusted in the field.
What does the complete TB13100AW catalog number include?
The TB13100AW product number specifies a complete, factory-assembled Tri-Break TB1 unit. This includes the 100A breaker frame, the fixed thermal-magnetic trip unit, internal current limiters, and the line and load lugs.
