ABB / General Electric TEC24100 Motor Circuit Protector
- 100A
- 2 Pole
- Unit Mount
ABB / General Electric
TEC24100
Motor Circuit Protector
Brand
ABB / General Electric
SKU
TEC24100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEC24100 - 100A 2 Pole Motor Circuit Protector
New
Quantity
Similar Items
ABB / General ElectricTEC26007
General Electric 2 Pole Circuit Breaker

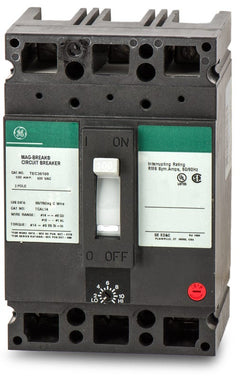

ABB / General ElectricTEC36100
100A 3 Pole Motor Circuit Protector
Description
Part of GE's legacy Mag-Break line, the TEC24100 delivers instantaneous short-circuit protection for motor loads. Designed specifically for motor branch circuits, this 100A device features an adjustable magnetic trip range of 300 to 1300 amps, allowing precise coordination with external overload relays and contactors. It installs into GE A-Series panelboards, Spectra Series panels, and combination motor starters.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEC24100 |
| Series | TEC |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 480VAC |
| Frame Type | TEC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Combination Motor Starters, GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 12 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, UR |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Mag-Break, Non-Interchangeable Trip, Reverse Feed |
