ABB / General Electric TED111015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Quantity

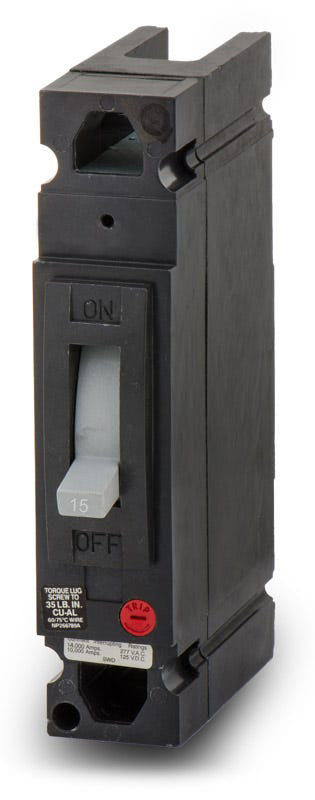

ABB / General Electric TED111015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Built for demanding commercial environments, this 15A legacy circuit breaker offers robust thermal-magnetic trip functions for reliable circuit defense. The bolt-on unit is specifically engineered to fit GE A-Series and Spectra panelboards, ensuring a secure connection for continuous power distribution. Capable of handling 120VAC and 125VDC voltages, it provides a 14kAIC rating alongside HACR certification. Facilities looking to upgrade can substitute this with the newer Tmax XT1 platform.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED111015-R |
| Series | TED |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL14) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhich panelboards are compatible with the TED111015 circuit breaker?
This E-frame breaker is specifically engineered for installation in GE A-Series and Spectra Series panelboards, as well as compatible commercial switchboards and motor control centers.
Can I use the TED111015 in a standard GE residential load center?
No. The TED111015 is a commercial E-frame molded case circuit breaker. It will not fit into standard GE Q-Line residential load centers, which require plug-on THQL or THQP branch breakers.
Why is the TED111015 listed as both an ABB and General Electric product?
ABB acquired GE Industrial Solutions, meaning legacy GE E-frame breakers are now produced under the ABB brand. The TED111015 maintains the exact same physical dimensions, mounting, and UL listings as the original GE-branded models for seamless direct replacement.
Can the TED111015 replace GE TEB or THED series breakers?
TEB, TED, and THED breakers all share the same E150 frame and physical dimensions. The TED111015 can physically replace a TEB or THED 1-pole breaker, provided its 14kAIC rating meets or exceeds the available fault current requirements of your specific application.
What does the LI trip function indicate on the TED111015?
The LI code means this thermal-magnetic breaker provides Long-Time (L) protection for continuous overloads and Instantaneous (I) protection for short circuits. Both the thermal and magnetic trip points are fixed on this specific model.
Does the TED111015 provide ground-fault or arc-fault protection?
No. This is a standard thermal-magnetic circuit breaker designed strictly for overload and short-circuit protection. It does not contain GFCI (Ground Fault Circuit Interrupter) or AFCI (Arc Fault Circuit Interrupter) technology.
Is the TED111015 suitable for reverse feed applications?
Yes, GE TED series E-frame breakers are non-interchangeable trip breakers that support reverse feed applications. Always confirm that your specific panelboard labeling and local NEC codes permit reverse feeding for your installation.
