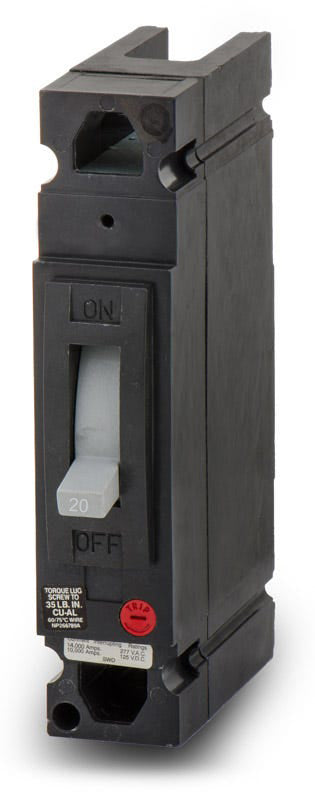

ABB / General Electric TED111020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Quantity
ABB / General Electric TED111020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Description
Engineered for commercial power distribution, the GE TED111020 handles 20-amp loads with reliable thermal-magnetic trip technology. This single-pole unit operates at 120VAC and 125VDC. Designed as a bolt-on solution, it mounts securely into GE A-Series and Spectra panelboards. It also serves as an upgrade for older TEB111020 breakers. Rated for 14kAIC at 120VAC, this E-Frame MCCB features HACR, SWD, and HID ratings for specialized lighting and HVAC circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED111020-R |
| Series | TED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC, 10kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersCan I install the TED111020 in a standard residential GE load center?
No, the TED111020 is a bolt-on E-Frame molded case circuit breaker designed for commercial GE A-Series and Spectra panelboards. It is not compatible with residential Q-Line load centers that require plug-in breakers.
Is the TED111020 suitable for direct current (DC) applications?
Yes, this breaker is rated for up to 125VDC with a 10kA interrupting capacity, making it suitable for specific DC control circuits and equipment.
How does the TED111020 mount into the panelboard?
It is a bolt-on circuit breaker, meaning it fastens directly to the panelboard busbar using mounting screws. This provides a secure, vibration-resistant connection for commercial and industrial environments.
What is the difference between the TED111020 and TED111020WL catalog numbers?
The WL suffix in GE nomenclature indicates that the breaker includes factory-installed line and load lugs. The TED111020 comes standard with these lugs, so the two part numbers represent the same physical breaker.
Can I use aluminum wire with the TED111020 breaker?
Yes, the standard lugs are dual-rated for both copper and aluminum conductors, accepting wire sizes from 14 AWG to 8 AWG.
What does the LI trip function indicate on this breaker?
The LI designation stands for Long-Time and Instantaneous trip functions. This thermal-magnetic mechanism provides delayed tripping for mild overloads and immediate tripping for severe short circuits.
Is the TED111020 rated for HVAC equipment?
Yes, this 20-amp breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment. It also carries SWD and HID ratings for specialized lighting circuits.
