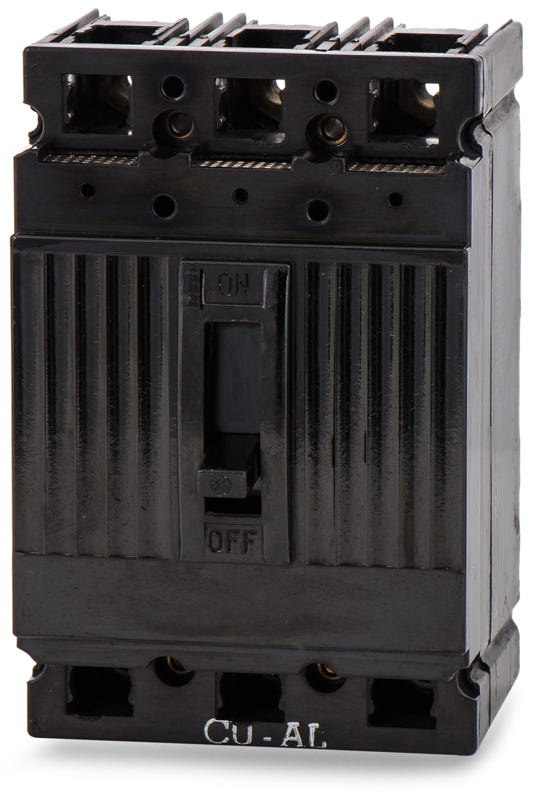

ABB / General Electric TEF134090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
ABB / General Electric
TEF134090
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEF134090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEF134090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEF134070
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134090
90A 3 Pole Molded Case Circuit Breaker
Description
Built to support existing infrastructure, this 90A, 3-pole MCCB delivers reliable overcurrent protection for commercial facilities. It utilizes fixed thermal and magnetic trip elements to safeguard electrical systems. The unit bolts securely into GE A-Series panelboards, switchboards, and MCCs. While it is a legacy component, it can be replaced by the newer TED134090 model when full system upgrades are required.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEF |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TEF |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Switchboards, Motor Control Centers |
| Wire Gauge | 6-2/0 AWG (Cu), 4-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kit (TCAL12A) |
|---|---|
| Accessories | Lugs Included (TCAL12A) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich panelboards are compatible with the TEF134090 circuit breaker?
The TEF134090 is designed to bolt directly into GE A-Series panelboards, GE switchboards, and motor control centers.
Is the GE TEF134090 obsolete, and what is the direct replacement?
Yes, the TEF134090 is a legacy E-Frame circuit breaker. It has been officially replaced by the TED134090 for full system upgrades.
What wire sizes are accepted by the lugs on the TEF134090?
The factory lugs accept 6 to 2/0 AWG copper wire or 4 to 2/0 AWG aluminum wire.
How does the TEF134090 mount into the panel?
It utilizes a bolt-on connection type for secure installation into compatible GE distribution equipment.
Can the TEF134090 be used in DC applications?
Yes, this breaker is rated for DC systems up to 250VDC with an interrupting capacity of 10kAIC.
Does the TEF134090 have adjustable trip settings?
No, it features a fixed thermal magnetic trip unit. Both the long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
What does the LI trip function code mean on the TEF134090?
The LI code indicates that the breaker provides Long-Time thermal protection against overloads and Instantaneous magnetic protection against short circuits.
SuperClub
Join free. Get 500 SuperPoints.
Earn points on eligible purchases and redeem them at checkout.
100 SuperPoints = $1 off.
Warranties
Add an extra year of protection
60-Day Warranty
Your purchase includes 60 days of SuperBreakers warranty coverage.
Add a 1-year warranty extension in your cart.
Get a Quote
Don’t see what you’re looking for?
We source obsolete and hard-to-find parts every day.
Shipping
Free Shipping Policy
Parcel shipments with item value over $99 qualify for free economy shipping within the continental US. Please call to confirm special handling instructions. We do not charge a handling fee or require a minimum amount on any order. SuperBreakers does not ship on customer accounts.
Same Day Shipping
We strive to ship out your items the same day the order is placed. In rare circumstances SuperBreakers may reserve up to 5 business days to consolidate orders for complete shipment.
Expedited Shipments
Orders being shipped via Next Day Air, 2 Day Shipping or 3 Day Shipping must be received by 3 PM EST to guarantee same-day shipments. Expedited orders only ship on normal business days. Shipments will NOT be sent out on Saturdays and Sundays.
International Shipping
All International orders require a $1,000 minimum order threshold. Due to the special nature of these shipments, we require that these be placed with a SuperBreakers representative. Additional shipping and instructions will apply. All International Orders are Non-Cancel and Non-Refundable.
Reviews
Review summary
Customers rate this product 4.5 out of 5 based on 2 reviews.
Total 5 star reviews: 1 Total 4 star reviews: 1 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
Search
Rating
2 reviews

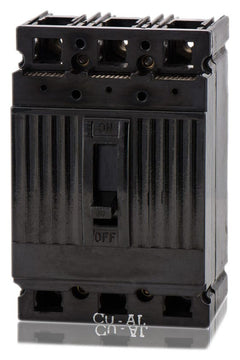

- PEPreferred E.Verified BuyerReviewingABB / General Electric TEF134100 - 100A 3 Pole Molded Case Circuit BreakerI recommend this productRated 5 out of 5 stars7/27/26Breaker is in great shape
