ABB / General Electric TEL136040 Miniature Circuit Breaker
- 40A
- 3 Pole
- Unit Mount
Quantity
ABB / General Electric TEL136040 - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Description

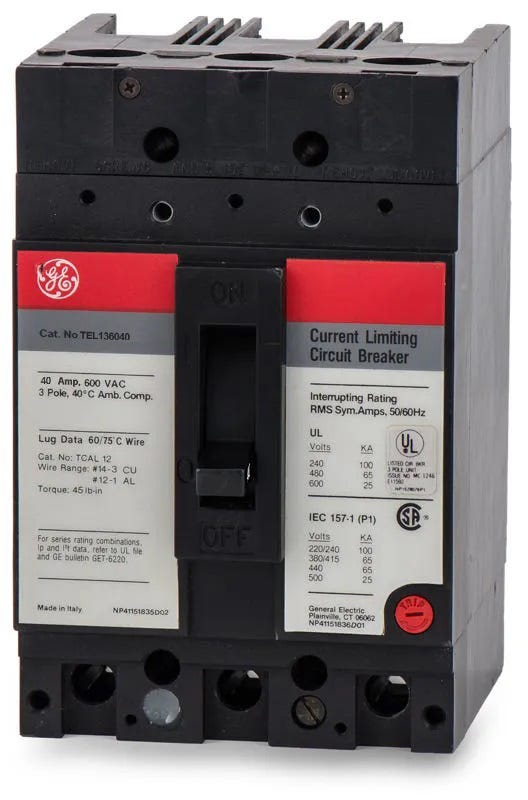

Part of the legacy E-Frame family, the GE TEL136040 is a 3-pole, 40A molded case circuit breaker designed for commercial and industrial power distribution. This unit-mount breaker installs into GE A-Series panelboards, Spectra switchboards, and motor control centers. It serves as a higher-interrupting substitute for TED136040 and THED136040 breakers. Featuring a current-limiting design, it delivers a 65 kAIC rating at 480VAC to minimize let-through energy and protect downstream equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEL136040-R |
| Series | TEL |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu) or 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu) / 1 AWG (Al) |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Non-Interchangeable Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Product FAQs
5 answersWhat equipment is the TEL136040 designed to fit?
This E-frame breaker is designed for use with GE A-Series panelboards, GE Spectra switchboards, and compatible motor control centers.
What wire sizes are accepted by the load side lugs on this breaker?
The terminals accommodate 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire. Ensure proper torque specifications are followed during installation.
What does the LI trip function indicate on the TEL136040?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) overload protection and Instantaneous (I) short-circuit protection. Both the thermal and magnetic trip points are fixed and non-interchangeable.
How is this breaker installed into an electrical system?
This is a unit-mount, bolt-on circuit breaker. It bolts directly to the bus or mounting pan rather than snapping into place, providing a secure mechanical and electrical connection for commercial applications.
Is the TEL136040 a current-limiting circuit breaker?
Yes, the TEL series operates as a current-limiting molded case circuit breaker. This design helps reduce the let-through energy during a fault, offering enhanced protection for downstream equipment.
