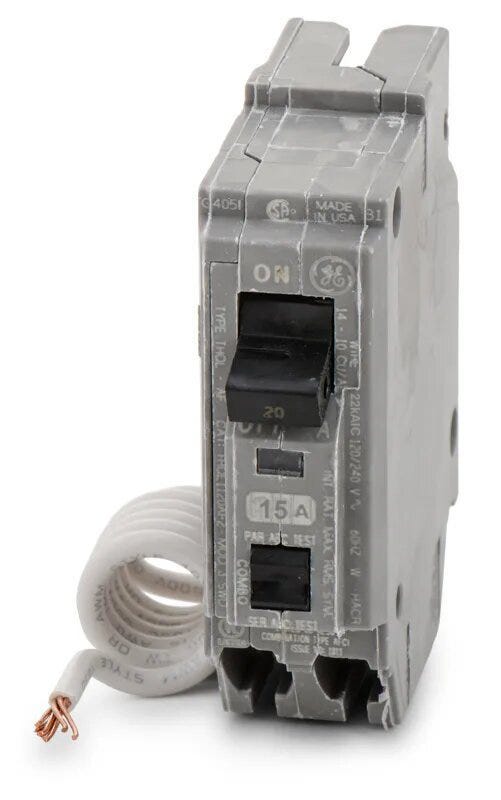

ABB / General Electric THHQL1115AF2 AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Quantity
ABB / General Electric THHQL1115AF2 - 15A AFCI Miniature Circuit Breaker
New
Quantity
Description
Upgrading residential circuits to meet modern NEC requirements is straightforward with this 15A combination AFCI. It features a pigtail neutral and a 22kAIC interrupt rating for robust protection. The plug-on design mounts into GE PowerMark Gold load centers and ABB ReliaHome enclosures. This unit serves as an exact replacement for discontinued THHQL1115AF branch/feeder models. Advanced series and parallel arc detection mitigates electrical fire risks alongside standard HACR and SWD ratings.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQL1115AF2 |
| Series | THHQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10 to 50C |
| Construction Features | Combination Arc Fault Protection, HACR Rated, SWD Rated, Quick-Make/Quick-Break, High Interrupting Capacity |
Product FAQs
7 answersWhich load centers are compatible with the THHQL1115AF2 breaker?
This plug-on breaker is designed for use in GE PowerMark Gold load centers, ABB ReliaHome load centers, and GE A-Series panelboards.
What does the H in the THHQL1115AF2 part number indicate?
The H designates a higher interrupting rating. The THHQL1115AF2 is rated for 22kAIC at 120/240VAC, making it suitable for commercial or residential applications with higher available fault currents compared to standard 10kAIC Q-Line breakers.
Does this breaker require a pigtail connection to the neutral bar?
Yes, the THHQL1115AF2 features a pigtail neutral. It includes a coiled white wire that must be connected directly to the panel neutral bar to power the internal arc fault detection circuitry.
What type of arc fault protection does the THHQL1115AF2 provide?
This is a combination arc fault circuit interrupter (CAFCI). It detects and mitigates both parallel arcs (line-to-neutral or line-to-ground) and series arcs (loose connections or damaged cords) to help prevent electrical fires.
What wire sizes are accepted by the box lugs on this 15A AFCI breaker?
The terminal lugs accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.
Can the THHQL1115AF2 replace older branch/feeder AFCI breakers?
Yes, this combination AFCI breaker meets current National Electrical Code (NEC) requirements and serves as a direct replacement for discontinued GE branch/feeder AFCI models, such as the THHQL1115AF.
How do you test the AFCI functionality on the THHQL1115AF2?
Once installed and energized, press the test button located on the front of the breaker. The breaker should trip immediately, verifying that the arc fault detection circuitry is functioning correctly.
