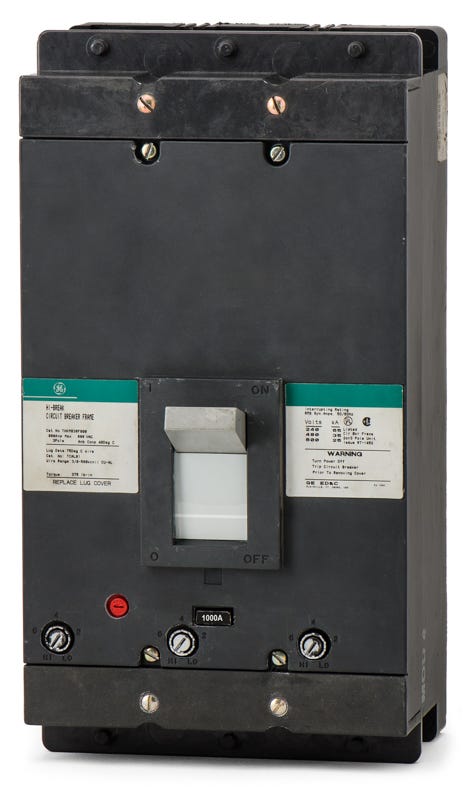

ABB / General Electric THKMA31000WL Molded Case Circuit Breaker
- 1000A
- 3 Pole
- Unit Mount
ABB / General Electric
THKMA31000WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THKMA31000WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THKMA31000WL - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric THKMA31000WL - 1000A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THKMA31000WL |
| Series | THKMA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 40kA @ 250VDC, 22kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers, GE A-Series Panelboards |
| Wire Gauge | (4) 250-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs (TCAL121) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Interchangeable Trip Unit |
Quantity
ABB / General Electric THKMA31000WL - 1000A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THKMA31000WL |
| Series | THKMA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 40kA @ 250VDC, 22kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers, GE A-Series Panelboards |
| Wire Gauge | (4) 250-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs (TCAL121) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Interchangeable Trip Unit |
Similar Items
ABB / General ElectricTHKMA836800WL
800A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHKMA836600WL
600A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHKMA836500WL
500A 3 Pole Molded Case Circuit Breaker
Description
Designed for versatile power distribution, the GE THKMA31000WL is a 3-pole, 1000A unit-mount molded case circuit breaker. This K-Frame model provides robust protection for demanding environments. The feed-thru design mounts into GE switchboards and motor control centers. It includes factory-installed line and load lugs for streamlined wiring and can be replaced by Spectra RMS SKHA36AT1000 units. It features a thermal-magnetic trip unit and delivers a 35kAIC rating at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THKMA31000WL |
| Series | THKMA |
| Amperage | 1000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 40kA @ 250VDC, 22kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Switchboards, Motor Control Centers, GE A-Series Panelboards |
| Wire Gauge | (4) 250-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs (TCAL121) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Interchangeable Trip Unit |
Product FAQs
6 answersWhat wire size do the included lugs on the THKMA31000WL accept?
The factory-installed lugs accept up to four 250 to 500 kcmil copper or aluminum conductors per phase. Ensure proper torque specifications are followed during installation.
What types of enclosures or panels is this K-frame breaker compatible with?
This unit-mount breaker is designed for installation in GE switchboards, motor control centers, and GE A-Series panelboards.
How is the trip unit configured on the THKMA31000WL?
It features a thermal-magnetic trip unit with fixed thermal (long-time) protection and an adjustable magnetic (instantaneous) trip setting. This allows you to fine-tune the short-circuit response for your specific load requirements.
Can this breaker be used in DC applications?
Yes, the THKMA31000WL is rated for DC systems. It provides up to 40kA interrupting capacity at 250VDC and 22kA at 500VDC. Ensure proper wiring configurations for DC loads as specified by GE guidelines.
What does the "WL" suffix indicate in the THKMA31000WL catalog number?
The "WL" suffix designates that the breaker is supplied with factory-installed line and load lugs. If lugs are not required for your application, the catalog number would omit the "WL".
Can the trip unit on the THKMA31000WL be replaced or upgraded?
Yes, this K-frame breaker features an interchangeable trip unit design. This allows you to replace or upgrade the trip functions without needing to replace the entire breaker frame.
