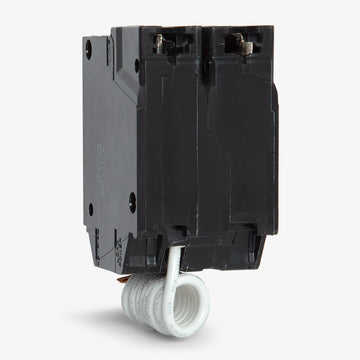

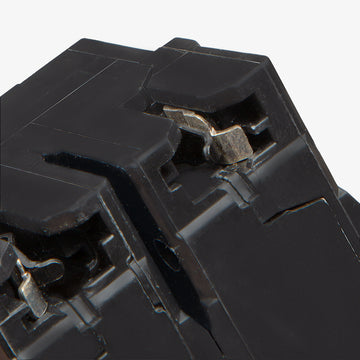

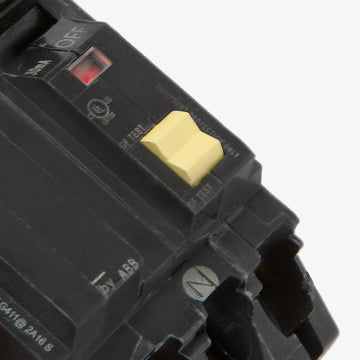

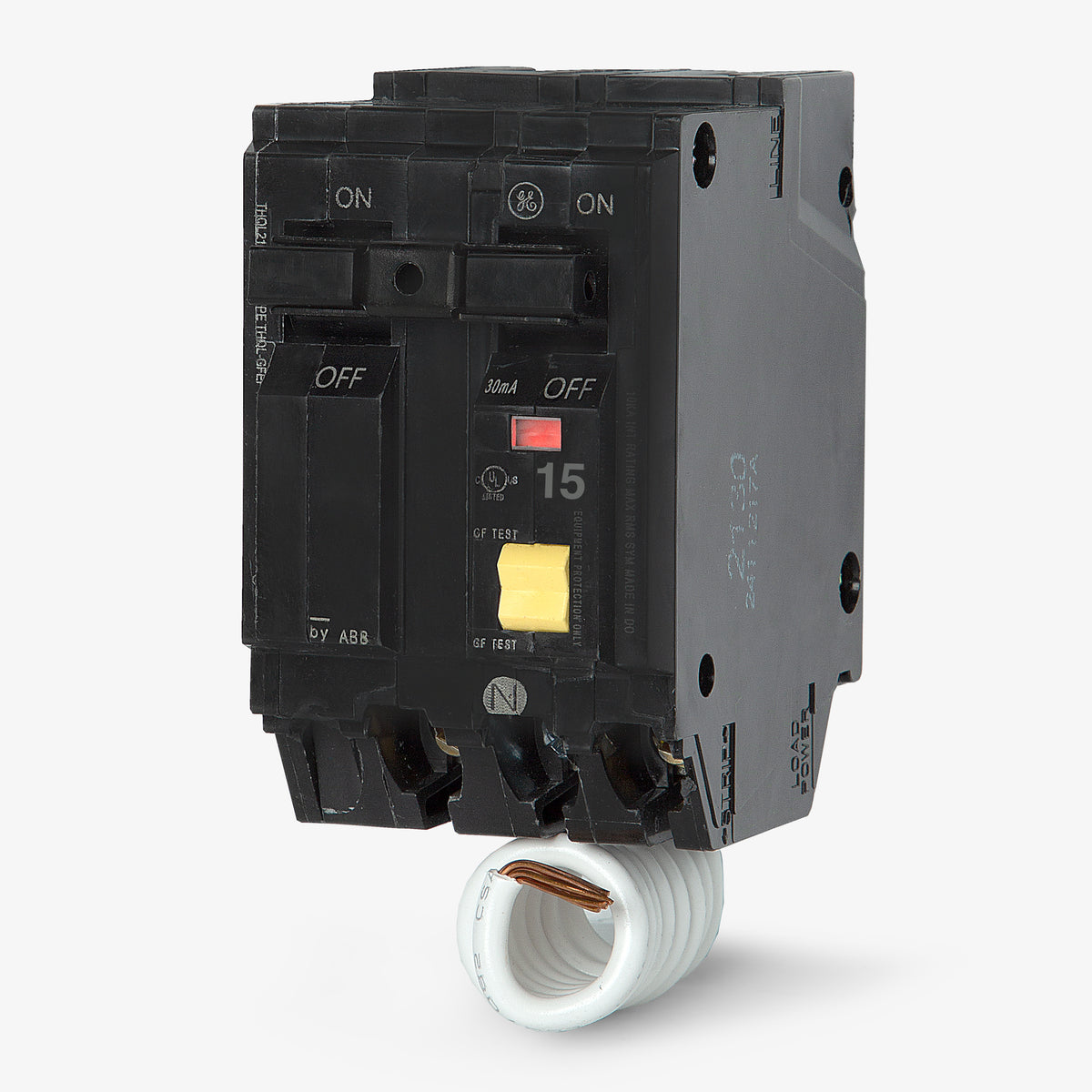

ABB / General Electric THQL2115GFEP GFEP Molded Case Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Quantity
ABB / General Electric THQL2115GFEP - 15A GFEP Molded Case Circuit Breaker
New
Quantity
Description
Providing a 30mA trip threshold, this 15A two-pole breaker is specifically calibrated for equipment protection rather than personnel safety. It prevents costly damage to 240V industrial machinery, well pumps, or outdoor heating cables by detecting low-level ground faults. Compatible with GE PowerMark Gold and ABB ReliaHome load centers, the plug-on format allows fast integration. This common-trip unit includes a pigtail neutral and carries a 10kAIC rating for standard applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2115GFEP |
| Series | THQL |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
8 answersWhat is the difference between this GFEP breaker and a standard GFCI breaker?
The THQL2115GFEP is a Ground Fault Equipment Protection (GFEP) breaker with a 30mA trip threshold, designed to protect machinery from electrical damage. Standard Class A GFCI breakers have a 5mA trip threshold intended for personnel protection.
Which load centers are compatible with the THQL2115GFEP?
This plug-on breaker is designed for use in GE PowerMark Gold and ABB ReliaHome load centers. It requires two 1-inch spaces on the panel bus.
Is the THQL2115GFEP a full-size or half-size breaker?
The THQL series is a full-size Q-Line breaker. It measures 1 inch per pole, meaning this 2-pole breaker requires 2 inches of total space on the panel bus.
How is the neutral connection made on the THQL2115GFEP?
This breaker features a factory-attached pigtail neutral wire. It must be routed and connected to the panel neutral bus bar to power the internal ground fault sensing circuitry.
Can the THQL2115GFEP be reverse fed?
No. Ground fault breakers have specific line and load directional requirements and cannot be reverse fed or used as back-fed main breakers.
What types of applications require a 30mA GFEP breaker?
GFEP breakers are typically used for dedicated 240V equipment where a standard 5mA GFCI might experience nuisance tripping. Common applications include commercial refrigeration, well pumps, snow-melting equipment, and outdoor heat tracing cables.
Will this breaker arrive with ABB or General Electric branding?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the THQL2115GFEP may feature either ABB or GE branding. The physical dimensions and UL listings are identical regardless of the label.
What does the LIG trip function code indicate?
LIG signifies that the breaker includes Long-Time for thermal overload, Instantaneous for magnetic short-circuit protection, and Ground-Fault for 30mA equipment protection.
