ABB / Thomas & Betts FS340020ASR01 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Unit Mount
Quantity

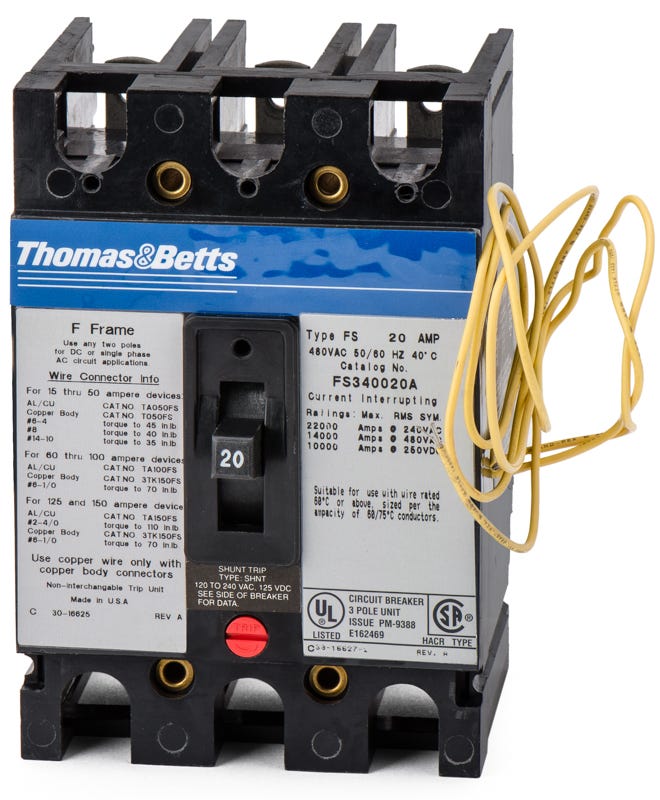

ABB / Thomas & Betts FS340020ASR01 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for demanding industrial environments, the ABB FS340020ASR01 provides 20A overcurrent protection with a factory-installed 120VAC shunt trip. This 3-pole breaker allows for remote tripping in emergency or control applications. It installs into Westinghouse and Eaton F-Frame panelboards, including PRL3a and PRL4, as well as switchboards. When replacing this unit, the EHD3020 or FDB3020 can be used with an added shunt trip kit.Specifications
| Brand | ABB / Thomas & Betts |
|---|---|
| Part Number | FS340020ASR01 |
| Series | FS |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse / Eaton F-Frame Panelboards (e.g., PRL3a, PRL4), Switchboards, Motor Control Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the FS340020ASR01 circuit breaker?
This breaker is designed to install into legacy Westinghouse and Eaton F-Frame panelboards, including the PRL3a and PRL4 series, as well as compatible switchboards and motor control centers.
What is a direct replacement for the Thomas & Betts FS340020ASR01?
If the exact FS340020ASR01 is unavailable, you can use an Eaton EHD3020 or FDB3020 circuit breaker equipped with a 120VAC shunt trip kit as a functional replacement in F-Frame applications.
What does the SR01 suffix indicate on this FS-frame breaker?
The SR01 suffix designates that this circuit breaker includes a factory-installed 120VAC shunt trip. This allows for remote tripping of the breaker in emergency shutdown or control applications.
Is the FS340020ASR01 a plug-on or bolt-on breaker?
The FS340020ASR01 is a unit-mount circuit breaker, meaning it bolts into place. It is designed to be hardwired and securely mounted within F-Frame panelboards and switchboards, rather than snapping onto a busbar.
Does the FS340020ASR01 offer adjustable trip settings for coordination?
No, this unit features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) protection. If your application requires adjustable trip curves, you will need to upgrade to a breaker with an electronic trip unit.
Can I use this 480VAC breaker in a DC control circuit?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC applications with a 10kA interrupting capacity. This makes it suitable for certain DC motor control centers and battery systems.
Are the standard lugs on the FS340020ASR01 rated for aluminum wiring?
Yes, the factory-installed lugs are dual-rated for both copper and aluminum (Cu/Al) conductors ranging from 14 AWG to 4 AWG. Ensure proper torque specifications are followed during installation to prevent thermal issues.
