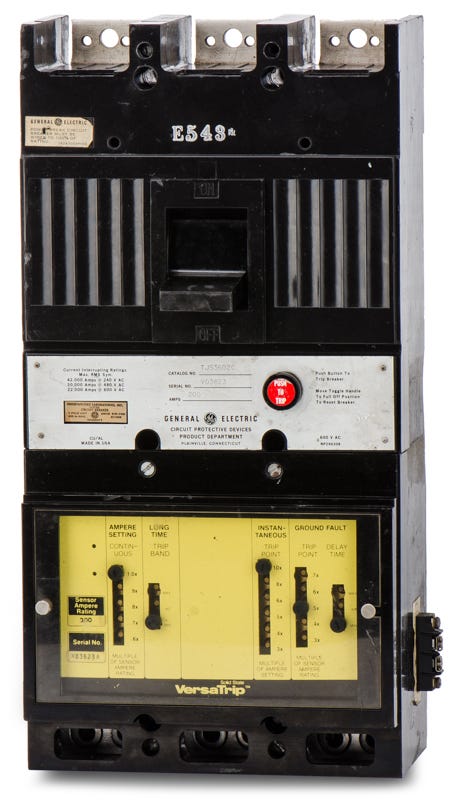

ABB / General Electric TJS3602G Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Quantity
ABB / General Electric TJS3602G - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered for commercial power systems, the GE TJS3602G is a 200A, 3-pole molded case circuit breaker from the legacy J-Frame family. This unit-mount breaker fits into GE J-Frame enclosures, switchboards, and motor control centers. It is ideal for maintaining existing infrastructure and can be cross-referenced with the TJK436200. Rated 42 kAIC at 240VAC, it incorporates a MicroVersaTrip solid-state trip unit. This allows for precise, adjustable LSIG coordination to enhance system reliability.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJS3602G-R |
| Series | TJS |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Amperage Range | 100-200A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J-Frame Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG - 600 kcmil or (2) 2/0 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Bell Alarm |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, True RMS Sensing |
Product FAQs
5 answersWhat equipment is the TJS3602G designed to fit?
This breaker is designed for use in legacy GE J-Frame enclosures, switchboards, and motor control centers. It utilizes a standard unit mount, bolt-on configuration.
What are the wire size limits for the lugs on the TJS3602G?
The factory lugs accept either a single conductor ranging from 6 AWG to 600 kcmil, or dual conductors ranging from 2/0 AWG to 250 kcmil. The terminals are rated for both aluminum and copper wire.
How does the electronic trip unit on the TJS3602G benefit system design?
The adjustable LSIG trip unit allows electricians to precisely tune the breaker's time-current curve. This ensures proper selective coordination with upstream and downstream devices in complex electrical systems.
What is the purpose of the ground-fault function on this breaker?
The integrated ground-fault element provides equipment protection against low-level arcing faults to ground. This helps prevent equipment damage that might not draw enough current to trigger the standard overload or short-circuit protections.
Can the TJS3602G replace older thermal-magnetic J-Frame breakers?
It shares the same physical J-Frame footprint for mounting in GE switchboards and enclosures. However, because it utilizes an advanced electronic trip unit, you must verify that your system coordination study supports an LSIG profile before replacing a standard thermal-magnetic unit.
